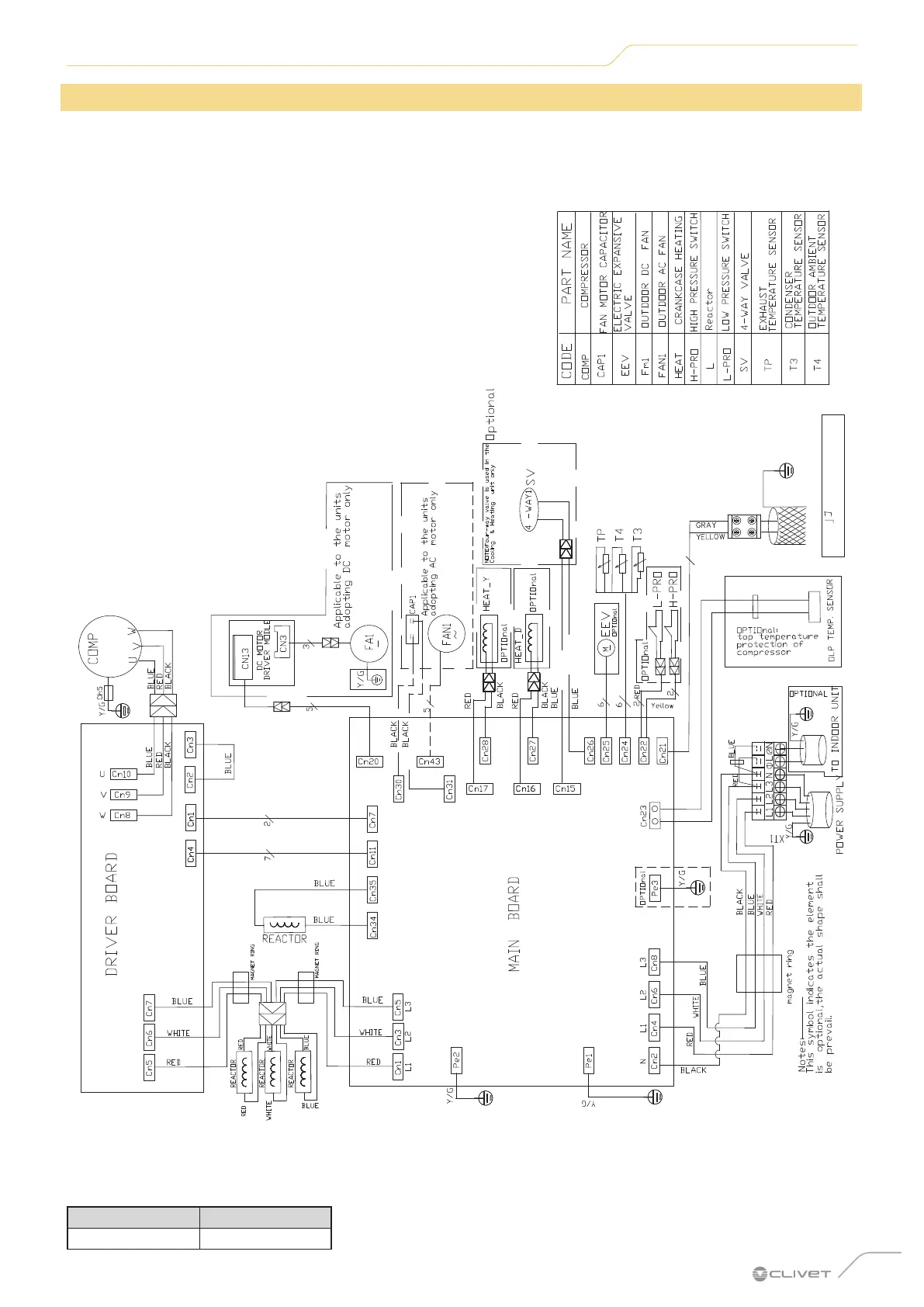

Specifications
 Page 45 
INDOOR
AIRFLOW
(CMH)
OUTDOOR
DB(℃)
ID WB
(℃)
16.0 18.0 19.0 22.0
ID DB
(℃)
23.0 25.0 27.0 30.0 23.0 25.0 27.0 30.0 23.0 25.0 27.0 30.0 23.0 25.0 27.0 30.0
2454
27
TC 15.9 15.9 16.1 16.2 16.7 16.7 16.7 16.9 17.2 17.2 17.2 17.2 18.5 18.5 18.5 18.5
S/T 0.71 0.85 0.93 1.00 0.59 0.72 0.80 0.95 0.51 0.64 0.72 0.87 0.33 0.46 0.53 0.67
PI 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
30
TC 15.5 15.5 15.7 15.8 16.2 16.2 16.2 16.4 16.7 16.7 16.7 16.7 18.0 18.0 18.0 18.0
S/T 0.72 0.86 0.94 1.00 0.59 0.73 0.81 0.96 0.51 0.65 0.73 0.88 0.33 0.46 0.53 0.67
PI 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
32
TC 15.2 15.2 15.3 15.5 15.9 15.9 15.9 16.1 16.4 16.4 16.4 16.6 17.7 17.7 17.7 17.7
S/T 0.72 0.87 0.95 1.00 0.59 0.73 0.82 0.97 0.51 0.65 0.73 0.88 0.33 0.46 0.53 0.68
PI 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
35
TC 14.7 14.7 14.9 15.0 15.4 15.4 15.4 15.6 15.9 15.9 16.1 16.3 17.1 17.1 17.1 17.1
S/T 0.73 0.88 0.97 1.00 0.60 0.74 0.83 0.99 0.52 0.66 0.74 0.89 0.33 0.46 0.54 0.69
PI 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
43
TC 13.3 13.4 13.6 13.7 14.0 14.0 14.0 14.2 14.5 14.5 14.5 14.7 15.6 15.6 15.6 15.6
S/T 0.75 0.91 1.00
1.00 0.61 0.77 0.87 1.00 0.52 0.68 0.77 0.94 0.32 0.46 0.55 0.90
PI 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
46
TC 12.8 13.0 13.1 13.2 13.5 13.5 13.5 13.6 13.9 13.9 13.9 14.1 15.1 15.1 15.1 15.1
S/T 0.76 0.93 1.00 1.00 0.62 0.78 0.88 1.00 0.53 0.69 0.78 0.96 0.32 0.47 0.56 0.92
PI 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
52
TC 11.6 11.8 11.9 12.0 12.3 12.3 12.4 12.5 12.7 12.7 12.7 12.8 13.7 13.7 13.7 13.7
S/T 0.79 0.98 1.00 1.00 0.63 0.82 0.92 1.00 0.54 0.71 0.82 1.00 0.31 0.47 0.57 0.97
PI 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
TC:Total Cooling Capacity (kW)
S/T:Sensible Cooling Capacity Ratio
PI:Power Input(kW)
Note: The table shows the case where the operation frequency of a compressor is fixed.
