Specifications
 Page 6 

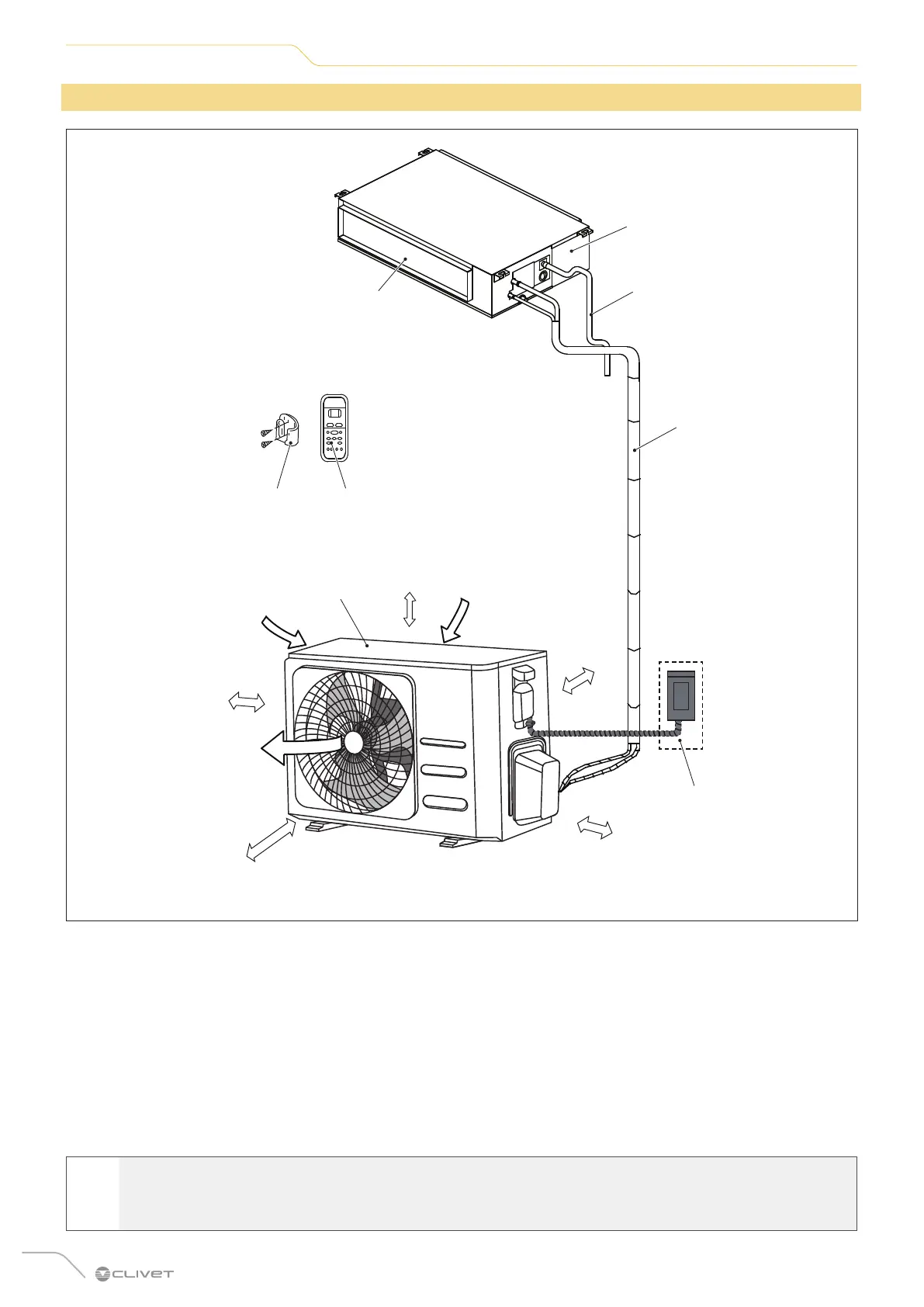

2. General Specifications
Indoor model
IF2-XY 70M
IF2-XY 105M
Outdoor model
MC2-Y 70M
MC2-Y 105M
Power supply (Indoor ) V- Ph-Hz 220~240-1-50 220~240-1-50
Power Supply (Outdoor) V-Ph-Hz 220~240-1-50 220~240-1-50
Max. input consumption W 2950 4700
Max. current A 13.5 21.5
Indoor fan motor
Model ZKFN-55-8-1 ZKFN-90-8-1
Qty 1 2
Insulation class E E
IP rating IPX4 IPX4
Input W 100.0 96.0
Capacitor uF / /
Speed(Hi/Mi/Lo) r/min 1200/1080/890 1200/1050/850
Indoor coil
Number of rows 3.0 3
Tube pitch(a)x row pitch(b) mm 21x13.37 21x13.37
Fin spacing mm 1.3 1.3
Fin type (code) Hydrophilic aluminum Hydrophilic aluminum
Tube outside dia.and type mm Φ7,Inner groove tube Φ7,Inner groove tube
Coil length x height x width mm 795x294x40.11 1300x294x40.11
Number of circuits 7 8
Indoor air flow (Hi/Mi/Lo) m3/h 1208/1066/853 2160/1844/1431
ESP
Rated Pa / /
Range Pa / /
Indoor sound pressure level dB(A) 49/46/41 50/46/42
Indoor sound power level dB(A) 59 61
Indoor unit
Dimension(W*D*H) mm 1068x675x235 1650x675x235
Packing (W*D*H) mm 1145x755x313 1725x755x313
Net/Gross weight Kg 26.8/31.9 41.5/48
Design pressure MPa 4.2/1.5 4.2/1.5
Drainage water pipe diameter mm ODΦ25mm ODΦ25mm
Refrigerant piping Liquid side/ Gas side mm(inch) Φ9.52/Φ15.9(3/8"/5/8") Φ9.52/Φ15.9(3/8"/5/8")
Controller Remote contorl Remote contorl
Operation temperature °C 17-30 17-30
Room temperature
Cooling °C 17~32 17~32
Heating °C 0~30 0~30
Qty’per 20’ /40’ /40’HQ Indoor unit 102/220/252 72/147/167
Compressor
Model KTF235D22UMT KTF310D43UMT
Type ROTARY ROTARY
Brand GMCC GMCC
Capacity W 7650 10010
Input W 2065 2765
Rated current(RLA) A 9.4 5.38
Refrigerant oil/oil charge ml RB74A F/670 VG74/1000
Outdoor fan motor
Model ZKFN-50-8-2 ZKFN-120-8-2
Qty 1 1
Insulation class E E
IP rating IPX0 IPX4
Output W 115.0 150.0
Capacitor uF / /
Speed r/min 850 1050
