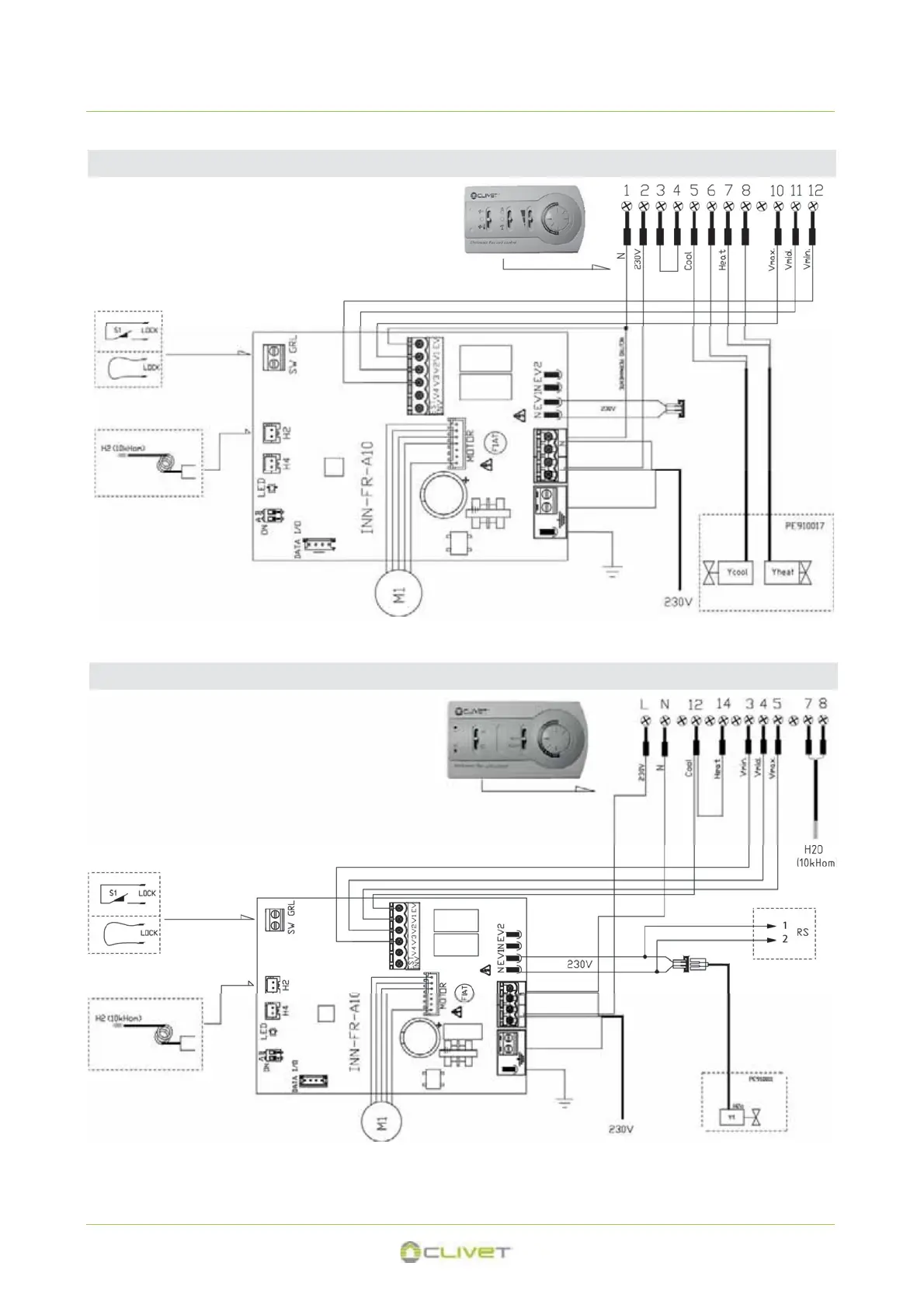

5 - ELECTRICAL CONNECTIONS
HID-E2 thermostat - 4 pipe system
Ycool Water solenoid valve(cooling) Yheat Water solenoid valve(heating)
M1 = motor
4 pipes
S1 = Grill safety
micro-switch
Deck electric
Cased
version
Built-in
version
Water probe
Not connected
HID-E3 thermostat - 2 pipe system
water thermo-
stat probe
Y1 Water solenoid valve(heating/cooling) RS Radiant optional (page.74)
2 pipes
M1 = motor
S1 = Grill safety
micro-switch
Deck electric
Cased
version
Built-in
version
Water probe
Not connected
M09160D17-02 71
