HRS - sonda temperatura agua (10k)
5 - CONEXIONES ELÉCTRICAS

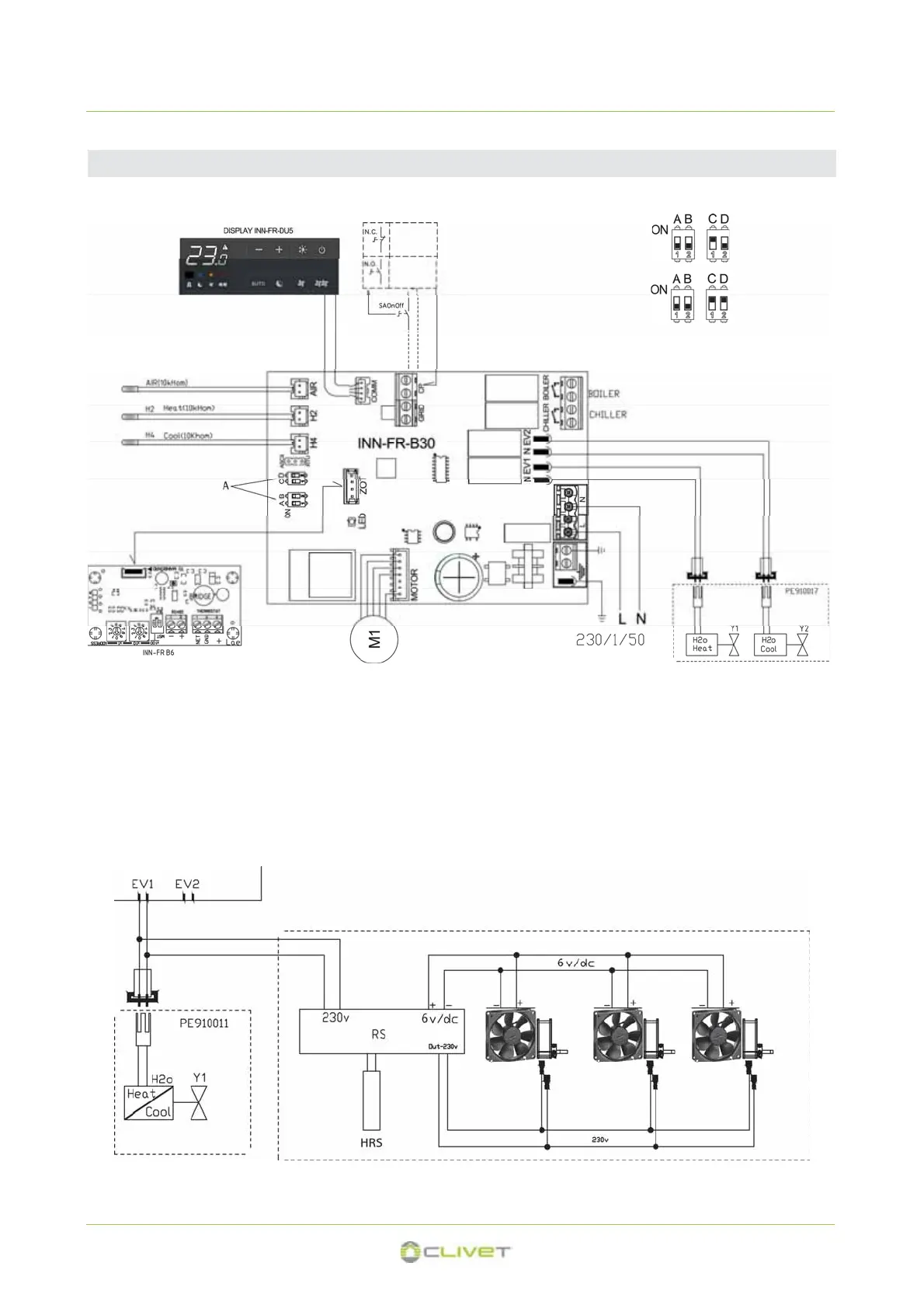

5.6 Conexión con termostato a bordo
BOILER salida consentimiento calefacción (boiler-caldera)
contacto libre máx. 1 A
CHILLER salida consentimiento enfriamiento (chiller)
contacto libre máx. 1 A
CP ON / OFF remoto
H2 sonda temperatura agua (10k)
(4Tubos ĺ calefacción)
(2Tubos ĺ enfriamiento / calefacción)
H4 sonda temperatura agua (10k)
(4Tubos ĺ enfriamiento)
Y1 electroválvula agua (4Tubos ĺ calefacción)
(2Tubos ĺ calefacción / enfriamiento)
Y2 electroválvula agua (4Tubos ĺ enfriamiento)
AIR Sonda temperatura aire (10k)
4 tubos : Y1 + Y2
2 tubos : Y1
4 tubos
M1 = motor
Unidad en
OFF
Unidad en
ON
Opción radiante
Sólo 2 tubos
Gr. 003.0 = n°1
2 tubos
Gr. 015.0 - 017.0 = n°3
Gr. 005.0 - 011.0 = n°2
A - posición dip-switch
Versión 2 tubos
Versión 4 tubos
