DIMENSIONS
8 - TECHNICAL INFORMATION
SIZE
003.0 005.0 011.0 015.0 017.0
A
mm 737 937 1137 1337
B
mm 130 130 130 130
C
mm 639 639 639 639
Net weight
kg 18 21 25 28
1537
130
639
32
Shipping weight
kg 19 22 26 29 33
Cased version - 4 pipes
Uncased version - 4 pipes
SIZE
003.0 005.0 011.0 015.0 017.0
A
mm 527 727 927 1227
B
mm 130 130 130 130
C
mm 650 650 650 650
Net weight
kg 10 13 17 20
1327
130
650
24
Shipping weight
11 14 18 21 25

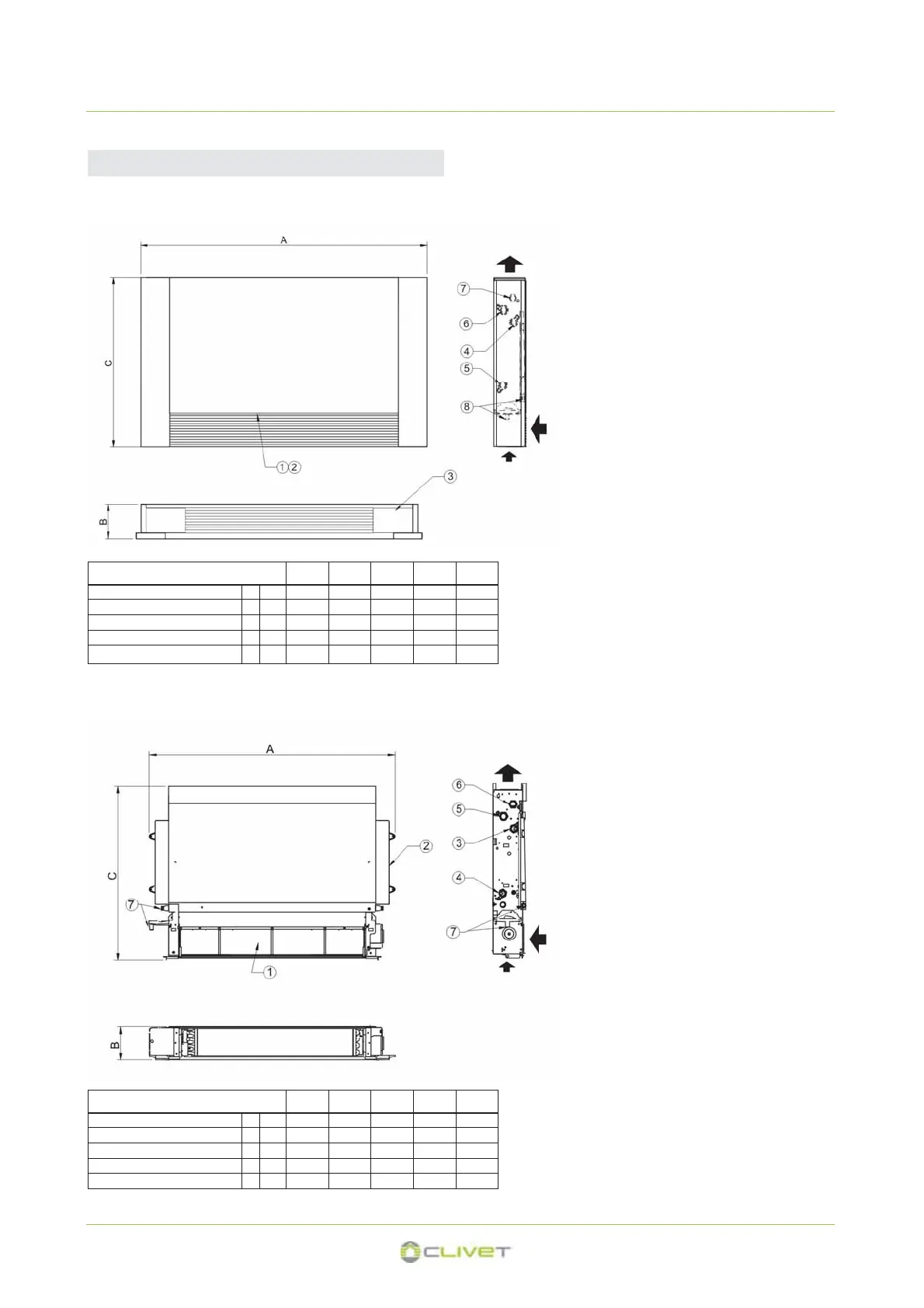

1. Intake grille removable
2. Air intake removable filter
3. Electrical panel
4. Water inlet, Eurokonus 3/4” F
5. Water outlet, Eurokonus 3/4” F
6. Additional coil water inlet 3/4” F (4 pipe-
installation)
7. Additional coil water outlet 3/4” F (4 pipe-
installation)
8. Condensate drain (Ø 14 mm)
1.Air intake removable filter
2.Electrical panel
3.Water inlet, Eurokonus 3/4” F
4.Water outlet, Eurokonus 3/4” F
5.Additional coil water inlet 3/4” F (4 pipe-
installation)
6.Additional coil water outlet 3/4” F (4 pipe-
installation)
7.Condensate drain (Ø 14 mm)
