Installation

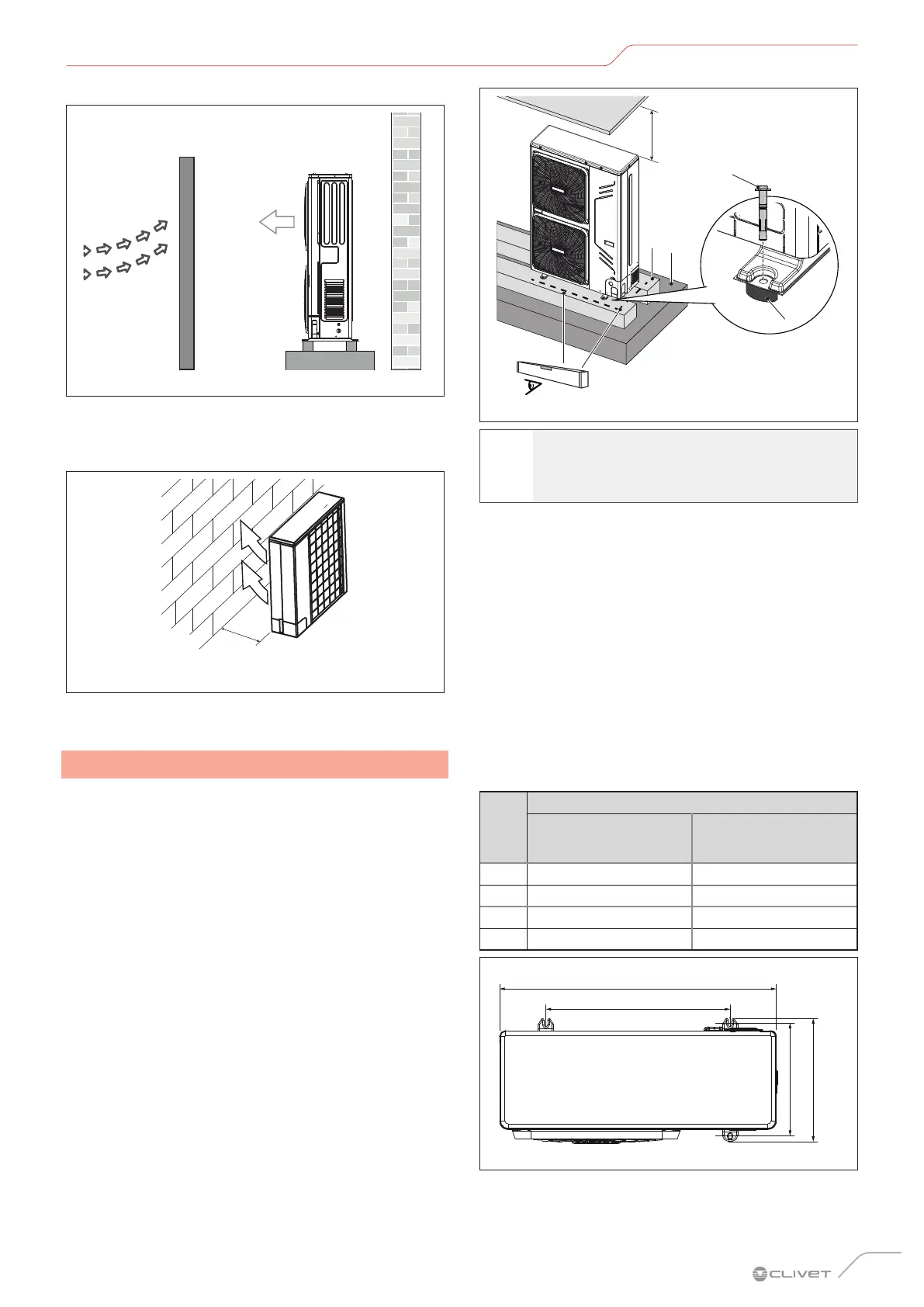

In places with strong winds, provide windbreaks.
Fig. 16
If the unit is installed in a place regularly exposed to strong
winds, such as on a building roof, make sure that the air
outlet faces the wall.
Keep the unit at least 2000 mm away from the wall.
2000
mm
Fig. 17
Considering the wind direction in the season of use,
direct the air outlet at a right angle to the wind direction.
3.5 Specifications for fixing
The outdoor unit must be installed on a support base (2)
with the following characteristics:
– It must be placed on solid ground (1) or on
structures capable of supporting its weight;
– It must be made of concrete or steel;
– It must have a minimum height of 200mm and a
minimum thickness of 80mm (see figure in point
2). These dimensions allow for sucient access
during installation of the piping;
– It must have rounded edges;
– It must be perfectly level and the support points
must withstand the weight of the unit evenly.
Keep at least 600 mm from a wall above the appliance.
For fixing, use 10 mm diameter expansion anchors (3) and
rubber anti-vibration pads (4).
> 600 mm
1
2
4
3
Fig. 18
–
m
CAUTION
When drilling holes. It is recommended to
always use eye protection.
Mark the positions of the four expansion anchors
according to the measurements shown in the
following table.
– Drill the holes for the expansion anchors.
– Remove any dust in the holes.
– Insert a nut on the end of each expansion anchor.
– Hammer the expansion anchors into the holes
made.
– Remove the nuts from the expansion anchors and
place the outdoor unit on the anchors.
– Insert the rubber pads on each expansion anchor
and reapply the nuts.
– Using a spanner, tighten the nuts firmly.
The location of the fixing holes in the appliance is
indicated in the table below:
Ref.
Model
80M - 105M
120M/T 140M/T
160M/T
180T
A 990 mm 900 mm
B 624 mm 600 mm
C 396 mm 400 mm
D 366 mm 360 mm
D C
B
A
Fig. 19
(A) Width of appliance
(B) Location of holes on long side - pt.1
(C) Location of holes on long side - pt.2
(D) Depth of appliance
(E) Location of holes on short side
