CLIVET MSAN-XMI 200T User Manual

30

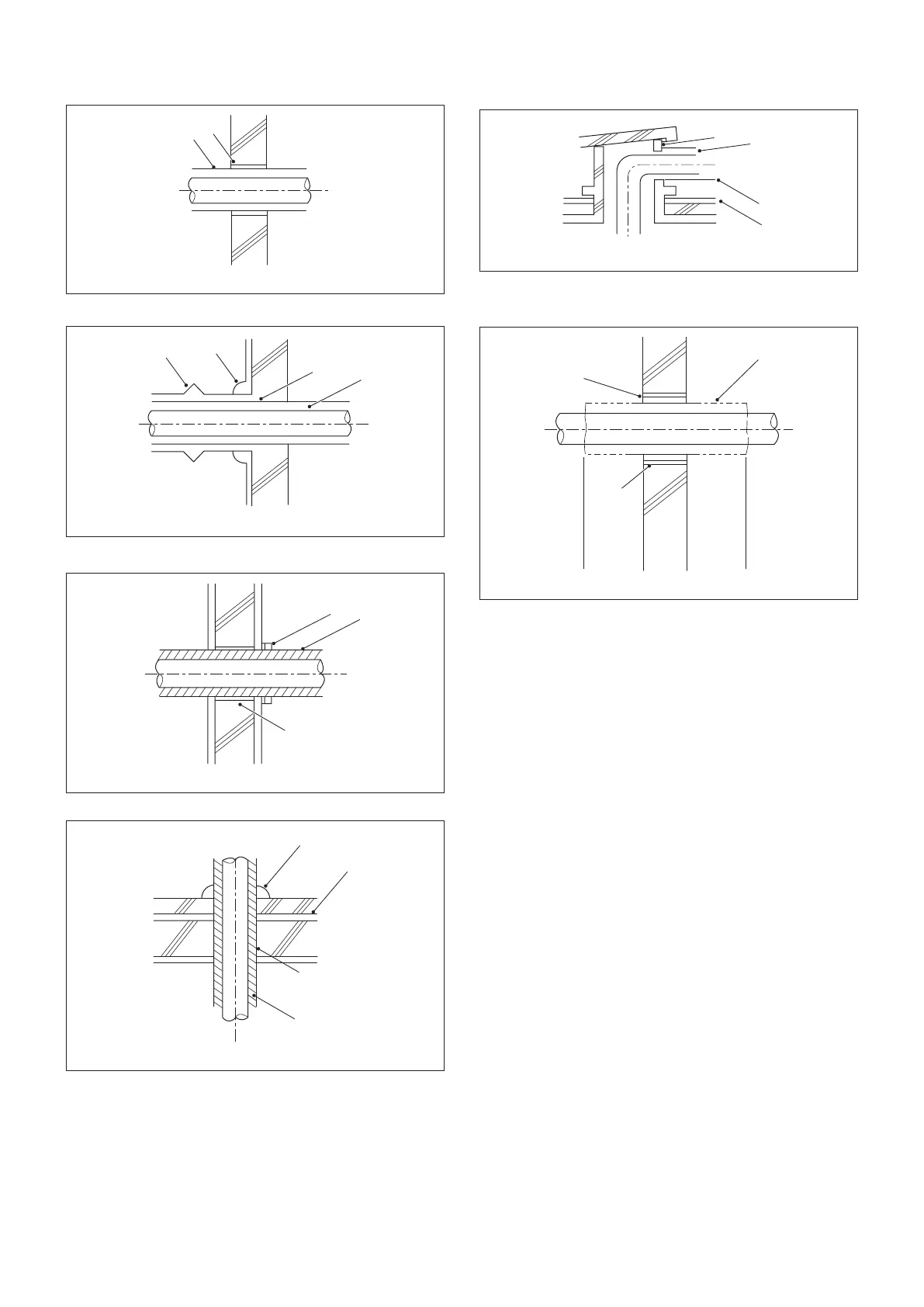

Refrigerant piping
Concealed internal wall
1
2
Fig. 41
External wall
4
3
1
2
Fig. 42
External wall (exposed)
2
8
5
Fig. 43
Waterproof floor
2
7
6
7
Fig. 44
Roof pipe
6
3
2
4
Fig. 45
Protections of parts that penetrate an area with
combustible material or a partition wall
9
8
1
Fig. 46
1 Insulating sheath
2 Insulating material
3 Coating
4 Grouting material
5 Tape
6 Waterproof layer
7 Sleeve with a flange
8 Grouting with a non-flammable material (e.g. mortar)
9 Non-flammable insulating material
