Installation

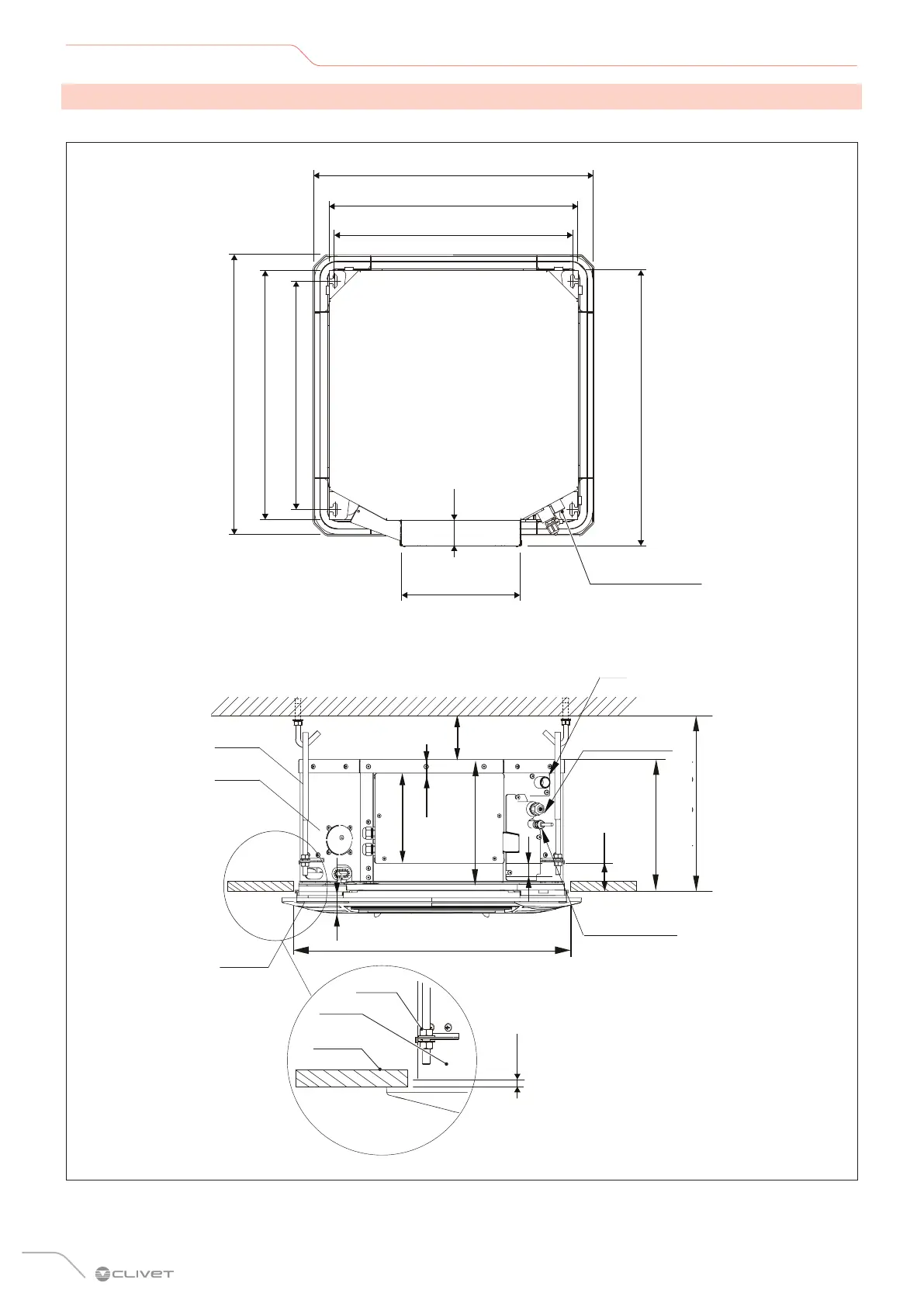

2.4.2 Hang the indoor unit
Size:
60
280
523 (Hook-location)
Drainage side
545 (Hook-location)
647 (Panel)
630 (Body,include Electrical Box)
H (ceiling height)
Panel
Ceiling
Body
10-12
Liquid pipe
Gas pipe
Drainage pipe
647 (Panel)
570 (Body)
570 (Body)
Nut
Body
Hook
≥20
600
270
50
60
L=30～40
260
30
195
L
647 (Panel)
647 (Panel)
Drainage side
Drainage pipe
570 (Body)
Body
Body
H (height from the ceiling)
Nut
Rod
Gas pipe
Refrigerant
pipe
False ceiling
Panel
570 (Body)
545 (Position of rods)
523 (Position of rods)
630 (Body, including junction box)
Fig. 6
