CLIVET Q4DN-2-XMi Series User Manual

14
Installation

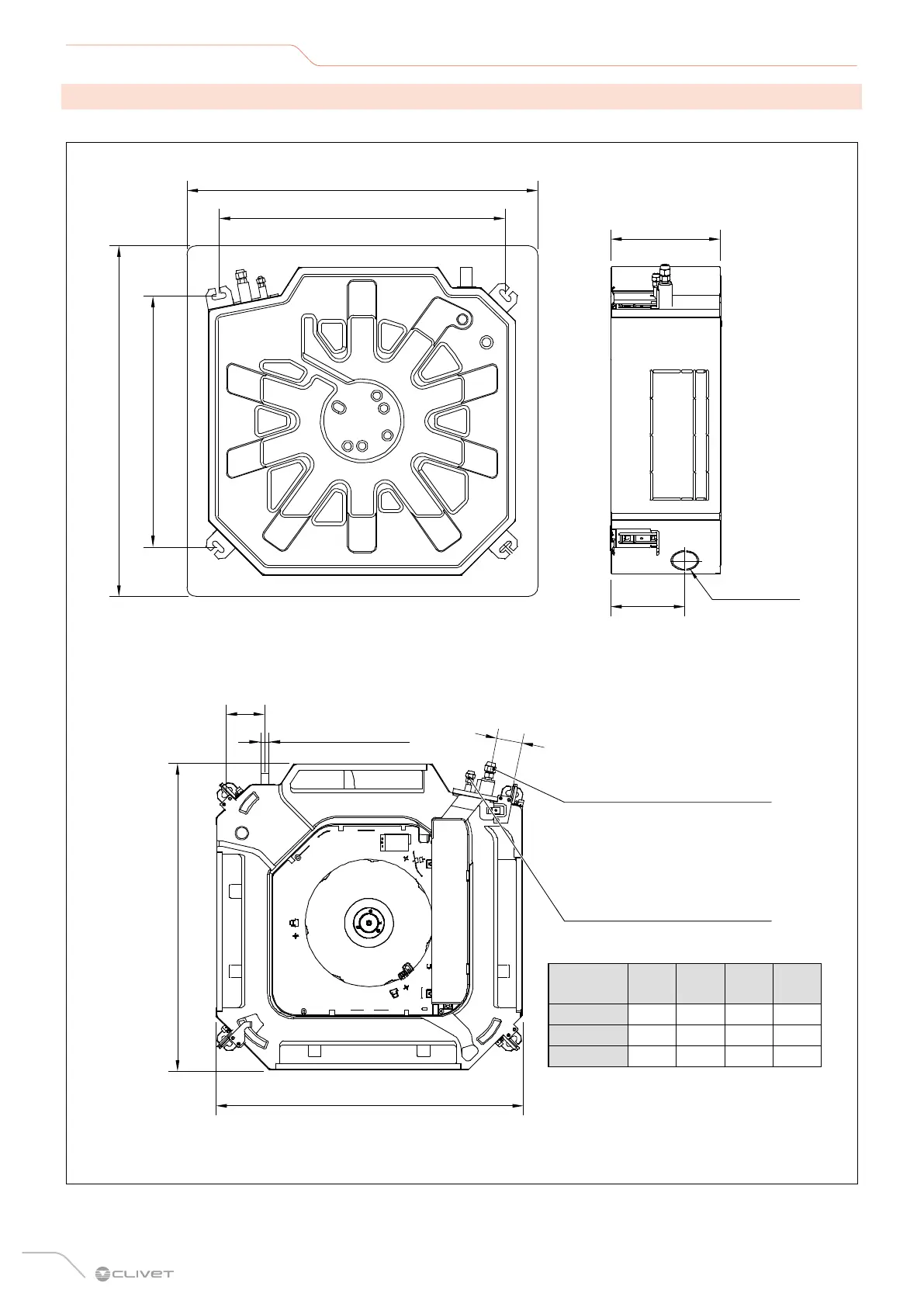

2.4.2 Hang the indoor unit
Size:
105
840
840
70
950
950
680
780
A
B
Ø75 mm
air inlet
Ø32 mm (outer
diameter of water
drainage pipe)
Refrigerant pipe vent
(liquid side “C”)
Refrigerant pipe vent
(gas side “D”)
Rear view Side view
View from above
Model
A
(mm)
B
(mm)
C
(mm)
D
(mm)
2.8-4.5 kW 230 126 Ø 6.35 Ø 12.7
5.6-8.0 kW 230 126 Ø 9.53 Ø 15.9
9.0-14.0 kW 300 197 Ø 9.53 Ø 15.9
Fig. 6
