M03I40M7-03 15/11/07 page 10
HOISTING using a CRANE or SIMILAR.
- Slide the provided lifting pipes into the holes in the base of the unit.
- Position the ends of the pipes that protrude from the unit so that you can insert the provided shear pins into the proper holes.

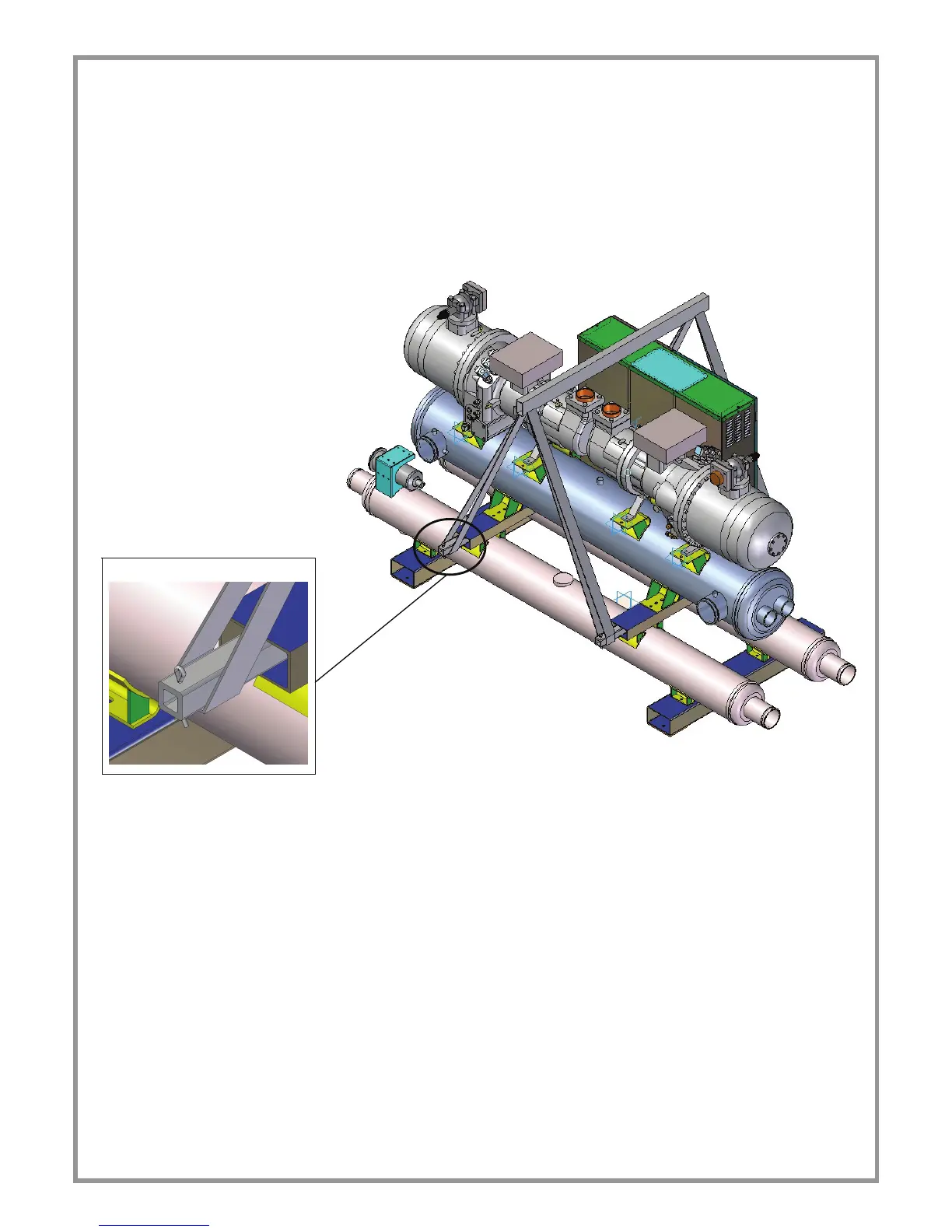

- Fit the lifting belts over the pipes between the safety rods and the base of the unit (see drawing).
- Gradually bring the lifting belts under tension, making sure they are positioned correctly. Make sure the unit is always in
steady equilibrium.
- Start hoisting the unit.
Split pin for belt
REMOVING THE PACKING
For removing the packaging, use specific personal
protection for the operator (gloves, glasses, etc.).
While removing the packaging, pay attention not to damage
the unit.
Check for any visible damage.
Dispose of the packaging by taking it to specialist collection
or recycling centres in accordance with local regulations.
