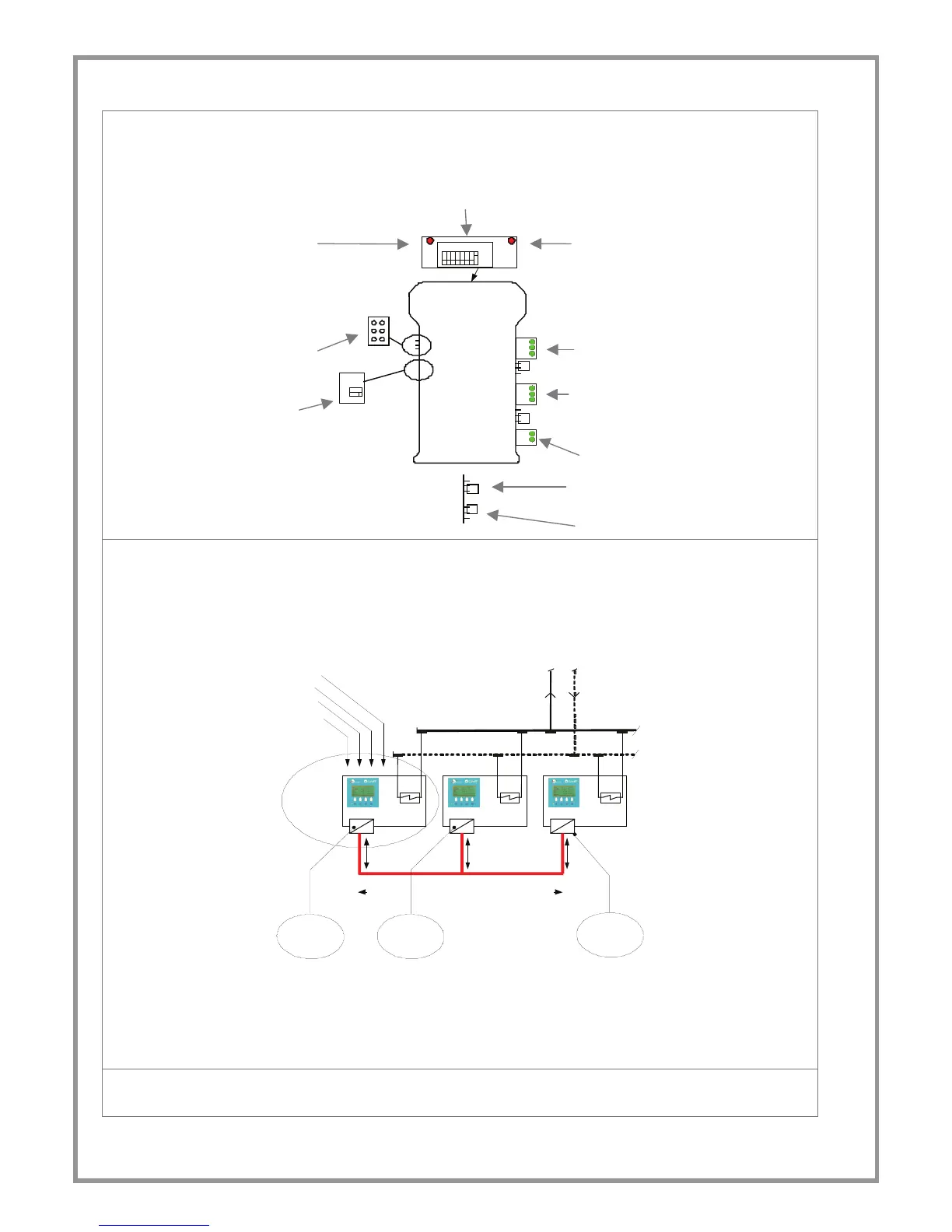

MODBUS - CONVERTER CAN TO MODBUS VIA RS 485
Interfacing via RS 485 is performed using a converter for each unit.
The converter must be mounted on the electric board of the unit and connected, following the electric diagram attached
to the unit.
CONNECTIONS: refer to the electric diagram and to the SIGNAL/DATA LINES paragraph
dip switch for the serial address of the module
LED 1 : signalization of gateway
working
LED 2 : signalization of gateway in
programming
jumper for activating the
firmware rewriting of the
gateway
RS 485 serial port
dip switch for the configuration
of the CAN OPEN addresses
Connection to the CAN network of the
machine
Power supply
terminator NOT activated
LGH
C5110770
18
O
N
1
ON
12 Vac
RS 485
+
-
s
CAN 0
Terminator activated
UNIT NETWORK – MINI NETWORK – MASTER SLAVE
The CLIVET TALK Local Network system allows to connect up to 6 machines in a network which all serve the same
installation.
To interact with the network which controls the working of the system, it is necessary to have a CAN to CAN converter
code C5110692 for each machine.
Each single machine is equipped with the standard electronic devices: if necessary, it can function as an independent
unit.
SpinChiller SpinChillerSpinChiller
CAN 0
At use
Cavo CAN OPEN
Max. extension 200mt with a twisted and shielded pair
L max. single
derivation =20cm
L max. single
derivation =20cm
L max. single
derivation =20cm
Unit #3Unit #2Unit #1
Water Reset
Temp. Ext
UR% Ext
Mode remoto
PE1W0009
(C5110692)
Master #1
PE1W0009
(C5110692)
Slave #2
PE1W0009
(C5110692)
Slave #3
Unit MASTER
CAN 1
CAN 0
CAN 1
CAN 0
CAN 1
CONNECTION CABLE :
Section (nominal) 0.34mm2
Heater 70mΩ/meter
Impedance 120mΩ/meter
Propagation delay 5nS/metrer
Length MAX 200meters
DATALOGGER - cod PE1W0006
CONNECTIONS : make reference to the electrical panel and to SIGNALS/DATA LINES paragraph
C5110676
To Next Page
