CLIVET WiSAN-YME 1 S 3.1 - Page 11

11
Description of the system
3.1.2 Sizes 4.1 to 5.1
1
2
3
4
5
6
7
8 9
10
11
12
1315
14

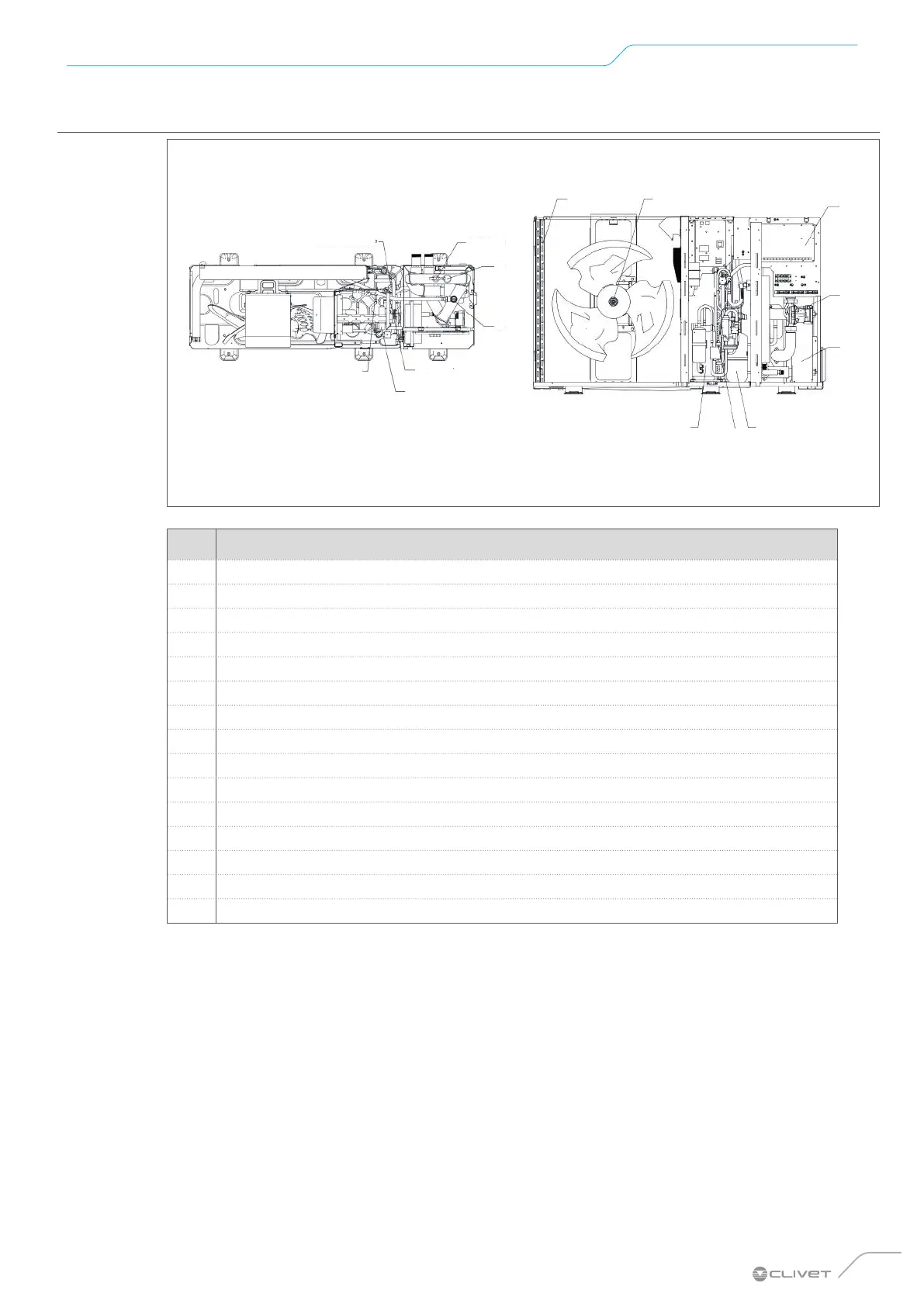

Fig. 2
No. Component
1
Electronic expansion valve
2
Water flow switch
3
Air vent valve
4
Water pressure relief valve
5
Pressure sensor
6
4-way valve
7
HP pressure switch
8
Source exchanger: finned coil
9
Fan motor
10
Main board
11
Water circulator
12
Water side heat exchanger
13
Gas-liquid separator
14
LP pressure switch
15
Compressor inverter
