CLIVET WSAN-XIN Series User Manual
4
of 1
of 1 rating
58 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

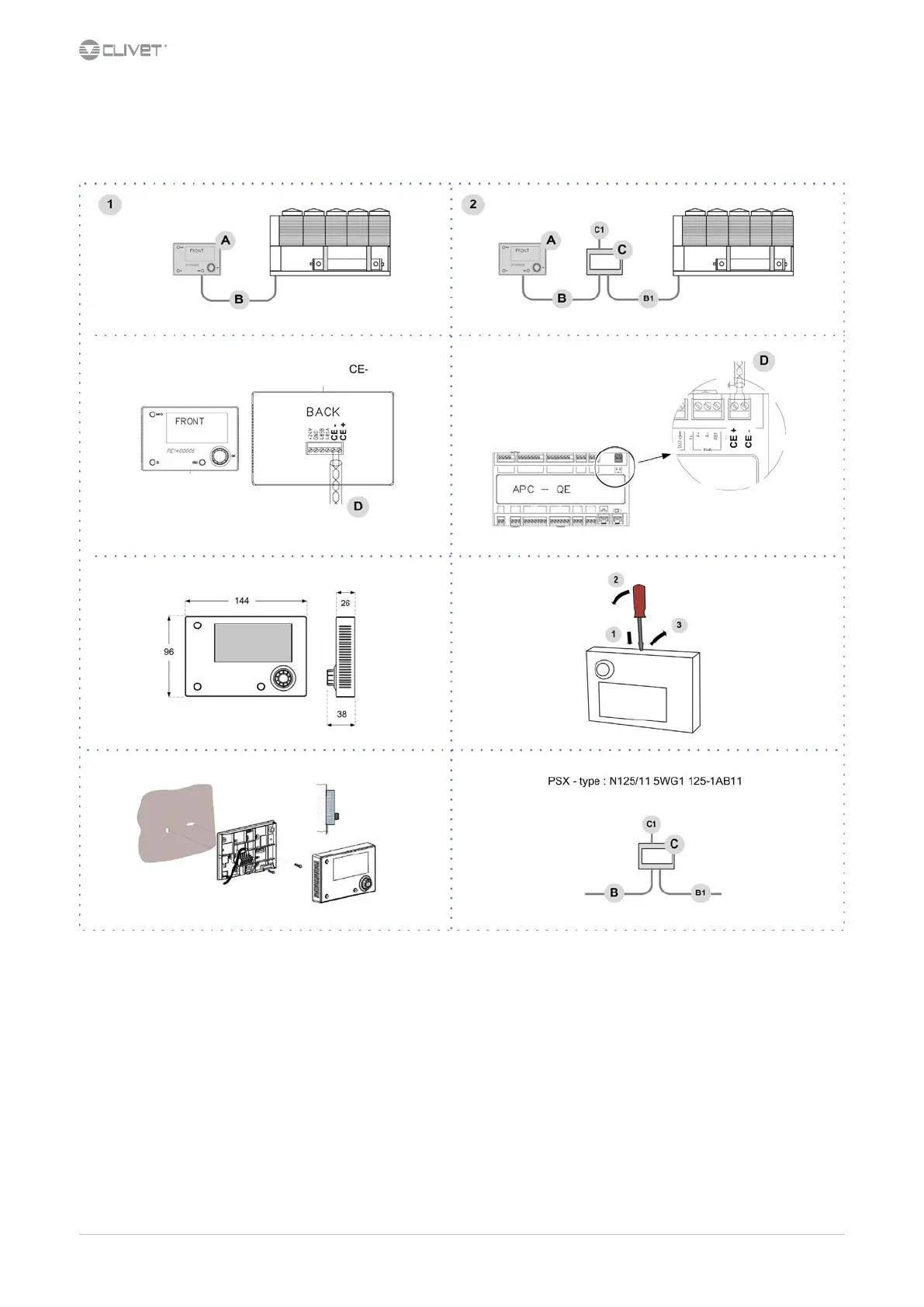

16 WSAN-XIN
18.2-45.2
M0M140L15-01
5.7 Remote
control
Option
1
Distance up to 350 mt
A
User interface
2
Distance up to 700 mt
B = B1
KNX bus, max 350 mt
twisted pair with shield, ø 0,8 mm
EIB/KNX cable marking recommende
C
PSX - Mains po
wer supply unit
pwer supply unit N125/11 5WG1 125-1AB11
C1
AC 120...230V
, 50...60Hz
D
KNX bus, max 350 mt
15
17
Table of Contents
Table of Contents
3
Index of Contents
3
General Description
4
Intended Use
4
Installation
4
Maintenance
4
User Training
5
Data Update
5
Indications for the User
5
Unit Indentification
5
Storage
6
Handling
6
Reception
6
Packaging Removing
7
Saftey Valve Gas Side
8
Positioning
8
Axitop
9
Anti-Vibration Mount Support
9
Water Quality
10
Risk of Freezing
10
Anti-Freeze Solution
10
Water Connections
10
Hydraulic Connections
11
Recommended Connection
11
Water Filter
11
Flow Switch
11
Hydronic Assembly
12
Partial Energy Recovery
12
Operation Sequence
12
Electrical Data
13
Signals / Data Lines
13
Electrical Connections
13
Connections Performer by Customer
14
Computer Connection
15
Configure P.C.
15
Remote Control
16
Modbus - RS485
17
Modbus / Lonworks / Bacnet Cable Requirements
17
Lonworks
18
Bacnet IP
18
Unit on Power Supply
19
Preliminary Checks
19
Start-Up Sequence
19
Start-Up
19
Refrigeration Circuit
20
Water Circuit
20
Electric Circuit
20
Compressor Crankcase Heaters
20
Voltages
21
Demand Limit
21
Climatic Text
22
Water Reset
23
ECOSHARE Function for the Automatic Management of a Group of Units
24
Start-Up Report
26
Operating at Reduced Load
26
Scroll Compressor
26
Evaporator Water Flow-Rate
26
Control
27
Led
27
Display
27
Keys
27
Change Unit State
28
Change the Mode
28
Modify Setpoint
28
Scheduler
29
Enable Scheduler
29
Display the Status
29
Alarms
33
Keyboard Settings
33
General List of Alarms
34
Electrical Circuit Alarms
34
Refrigerant Circuit Alarms
37
Hydraulic Circuit Alarms
38
Inspections Frequency
39
Unit Booklet
40
Standby Mode
40
Air Coil
40
Electric Fans
41
Water Side Exchanger
41
Circulating Pumps
41
Compressor Supply Line Shut-Off Valve
41
System Discharge
42
Copeland Scroll Compressor
42
Accessories
43
PGFCX - Finned Coil Protection Grill
44
VARYFLOW + 2 Inverter Pumps
45
Hydronic Assembly Unit with 1 ON/OFF Pump
45
Hydronic Assembly Unit with 2 ON/OFF Pumps
45
Unit with DHW Switching Valve (VACS)
46
Unit with DHW Switching Valve and VARYFLOW + (VACS+VARYP)
46
Unit with DHW Switching Valve and ON/OFF Pump (VACS+HYG1)
46
Unit with DHW Switching Valve and Two ON/OFF Pumps (VACS+HYG2)
47
Decommissioning
48
Disconnecting
48
Dismantling and Disposal
48
Directive EC RAEE
48
Residual Risks
49
General Technical Data
50
Technical Data for Specific Applications
51
Overload and Control Device Calibrations
51
Sound Levels
52
Standard Unit
52
Unit with HEDIF - “Diffuser for High Efficiency Axial Fan” Option
52
Operating Range
53
Cooling
53
Heating
53
Dimensional Drawings
54
Size18.2 - 20.2
54
Size 25.2 - 30.2
55
Size 35.2 - 45.2
56
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the CLIVET WSAN-XIN Series and is the answer not in the manual?
Ask a question
CLIVET WSAN-XIN Series Specifications
