M01W45H6-06
WSAT-SC
75C-180F
- ELECTRICAL CONNECTIONS -
30
dip switch for the serial address of the module
LED 1 : signalization of gateway
working
LED 2 : signalization of gateway in
programming
jumper for activating the
firmware rewriting of the
gateway
RS 485 serial port
dip switch for the configuration
of the CAN OPEN addresses
Connection to the CAN network of the
machine
Power supply
terminator NOT activated
LGH
C5110770
18
O
N
1
ON
12 Vac
RS 485
+
-
s
CAN 0
Terminator activated

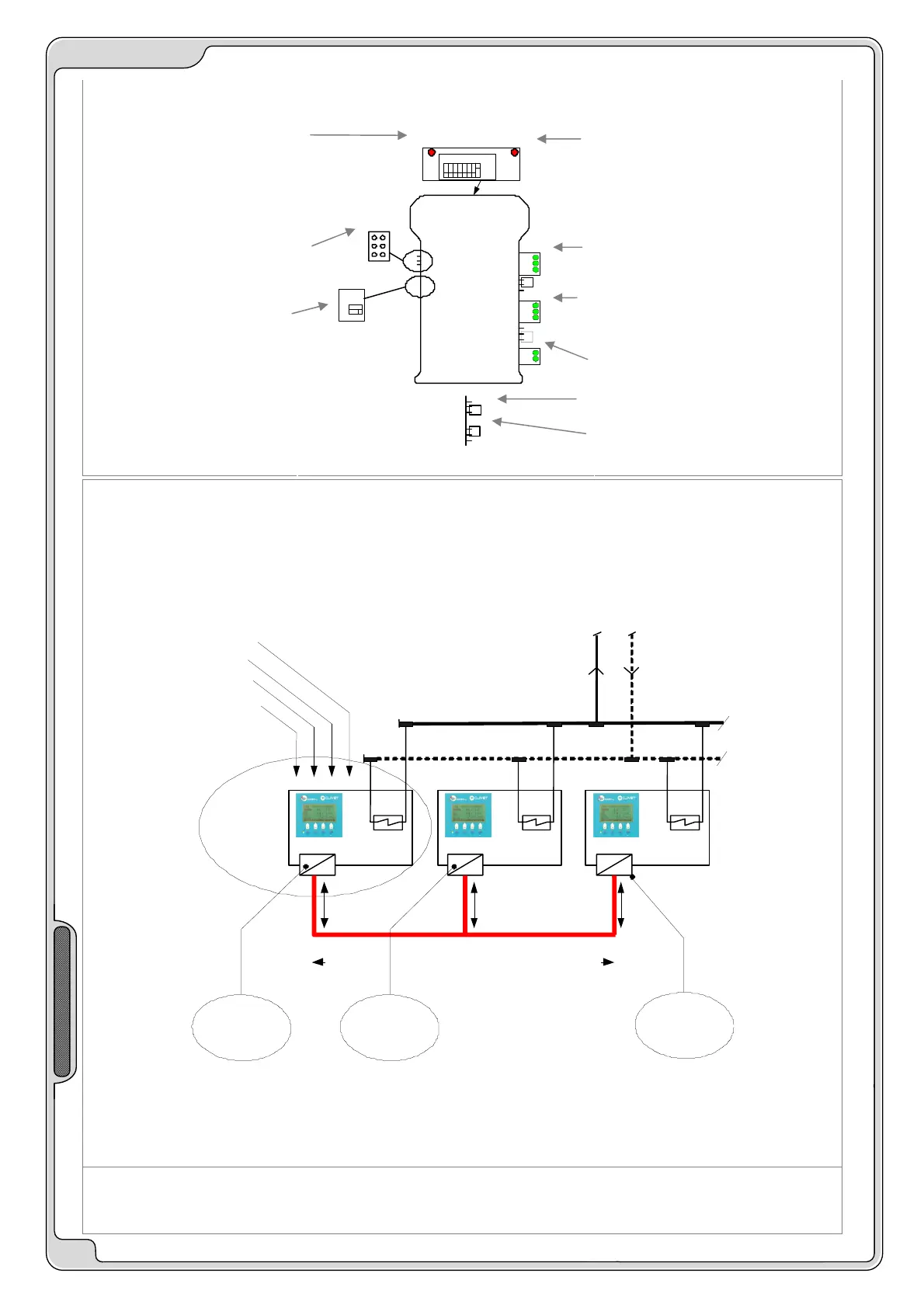

UNIT NETWORK – MINI NETWORK – MASTER SLAVE
The CLIVET TALK Local Network system allows to connect up to 6 machines in a network which all serve the same
installation.
To interact with the network which controls the working of the system, it is necessary to have a CAN to CAN converter
code C5110692 for each machine.
Each single machine is equipped with the standard electronic devices: if necessary, it can function as an independent
unit.
SpinChiller SpinChillerSpinChiller
CAN 0
At use
Cavo CAN OPEN
Max. extension 200mt with a twisted and shielded pair
L max. single
derivation =20cm
L max. single
derivation =20cm
L max. single
derivation =20cm
Unit #3 Unit #2Unit #1
Water Reset
Temp. Ext
UR% Ext
Mode remoto
PE1W0009
(C5110692)
Master #1
PE1W0009
(C5110692)
Slave #2
PE1W0009
(C5110692)
Slave #3
Unit MASTER
CAN 1
CAN 0
CAN 1
CAN 0
CAN 1
CONNECTION CABLE :
Section (nominal) 0.34mm2
Heater 70mΩ/meter
Impedance 120mΩ/meter
Propagation delay 5nS/metrer
Length MAX 200meters
DATALOGGER
cod PE1W0006
CONNECTIONS : make reference to the electrical panel and to SIGNALS/DATA LINES paragraph
To Next Page
