M01W45H6-06
WSAT-SC
75C-180F
- ELECTRICAL CONNECTIONS -
31
KIT LONWORKS
cod PE1W0014 / 25

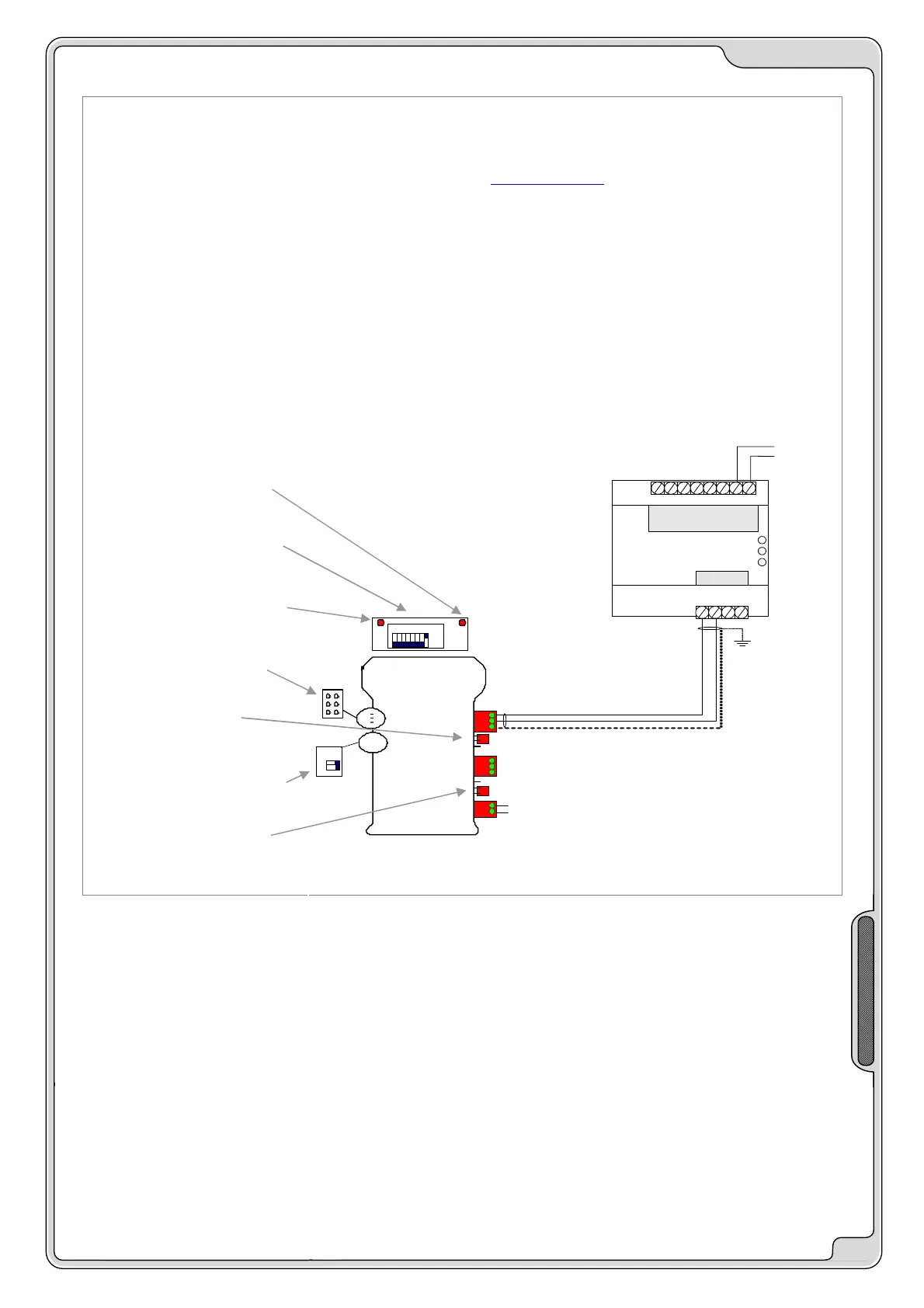

Refer to the wiring diagram and to the LONWORKS MANUAL.
Information on cables for the Lonworks Network are available on www.echelon.com
.
The L
ONWORKS technology is a complete platform to implement the net system control. These nets are intelligent
control instruments or nodes that interact with their ambient and communicate each other using a common message
based on the protocol (LonTalk®). A LONWORKS Network can have until 32.385 nodes divided in 255 subnets (127
nodes/subnets).
The Gateway switch is already set according to the Echelon classification for the destined unit type, with a number of
managed variables that is subset of the ones managed by the unit, able to receive the standard Echelon profiles. The
supply of this switch does not include configuration activities and LonWorks network conduction that, as usual, must be
performed by the Supervision System supplier.
gateway signalling led in
programming
dip switch for module serial
address setting
gateway operating signalling led
jumper for the gateway firmware
rewriting enabling
CONNECTED terminator
CAN OPEN address configuration
dip switch
NOT CONNECTED terminator
17
18 19 20 21 22
23 24
12
3
4
LiteConnector
LonWorks
Module Status
Serial Status
Service
Net B
Net A
Net B
Net A
SHLD
NC
GND
Vin+
RS485
C5110676
Lon Works SIDE
18
ON
1
O
N
12 Vac
485
+
-
S
L
G
H
CAN 0
GATEWAY LON-WORKS
CAN TO MODBUS
12 Vac
