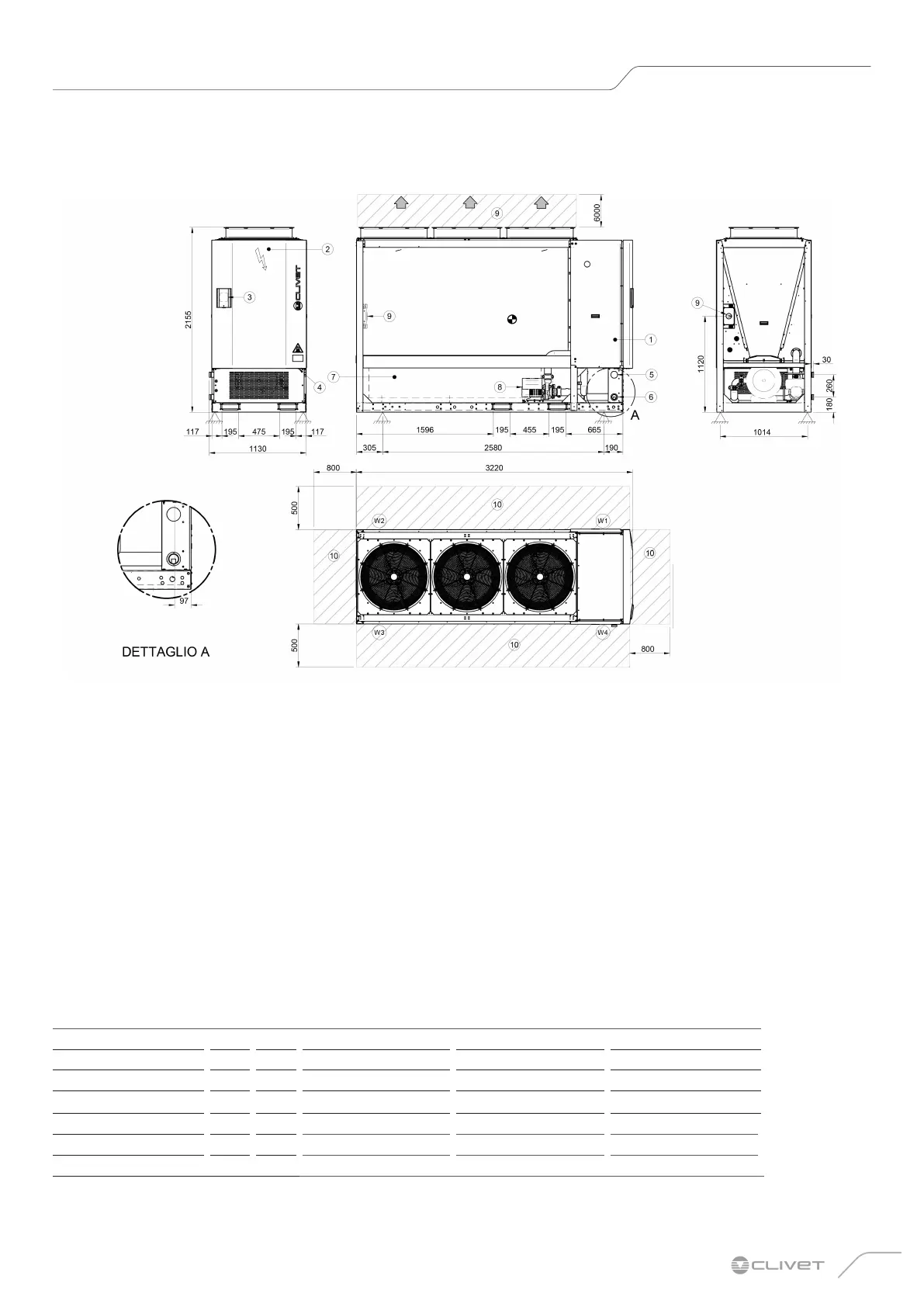

Dimensional drawings
Size 25.2 - 30.2 - 35.2
SIZE 25.2 30.2
35.2
Lenght mm 3220 3220 3220
Depth mm 1130 1130 1130
Height mm 2155 2155 2155
Operating weight kg 725 725 725
Shipping weight kg 710 710 710
Weight with water tank kg 805 805 805
Shipping weight with water tank kg 1093 1093 1093
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DAASF0002_REV01
Data/Date 01/04/2021
1. Compressor compartment
2. Electrical panel
3. Control keypad
4. Power input
5. Water inlet 2” Victaulic
6. Water outlet 2” Victaulic
7. Water tank**
8. Pump**
9. Isolating switch**
10. Functional spaces
**Optional
