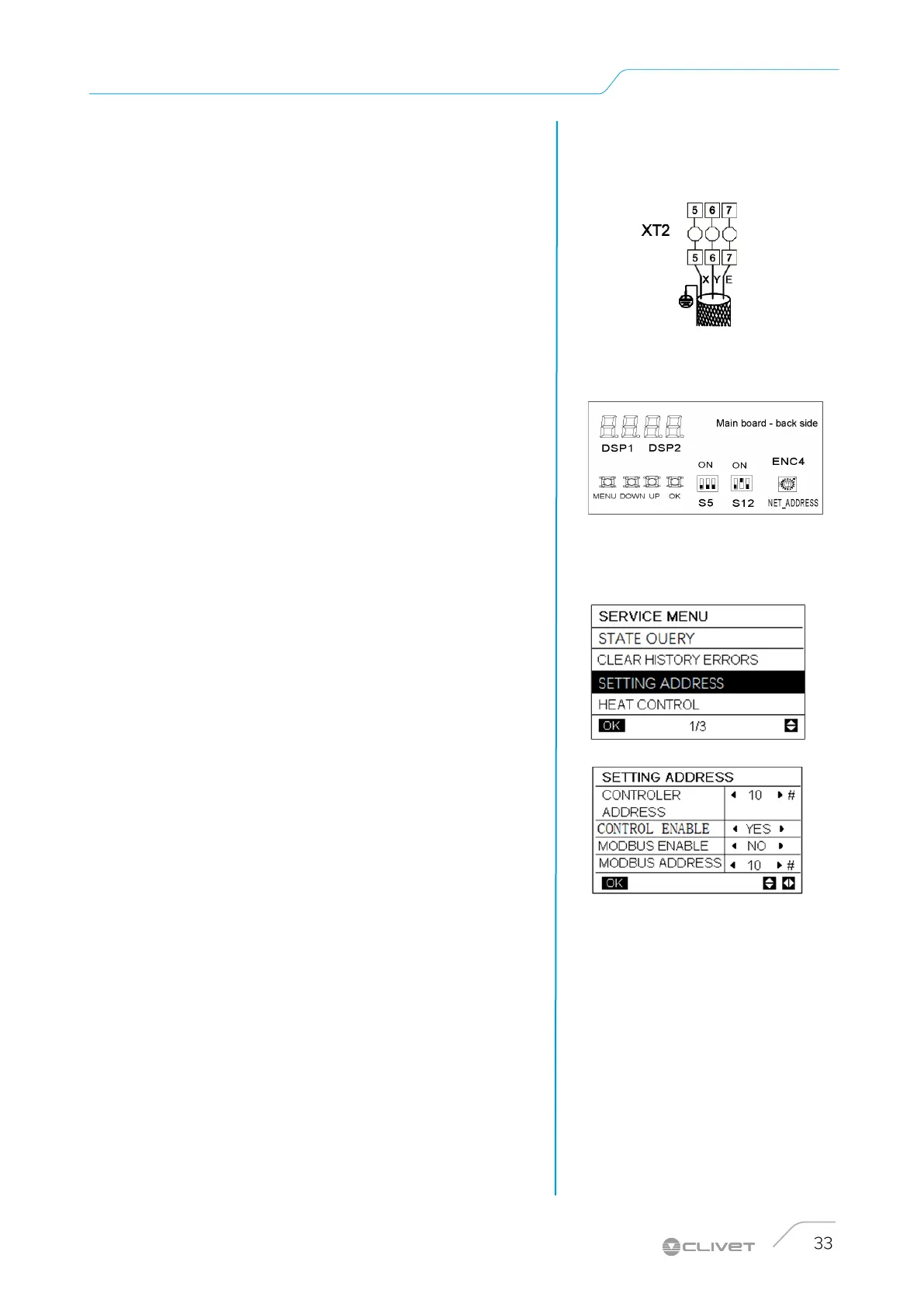

MODULAR CONFIGURATION UNITS
Set the correct date and time on each unit before connecting
them to the network.
Set multiple configuration on each unit.
The modular configuration is made up of two networks: the
controller network and the unit network (main keypads).
Each network can have max 16 addresses (0 to 15) and must be
addressed separately.
Each network has its own master, which must have address = 0.
Unit addressing
Addressing is carried out through encoder ENC4 on the back of
the keypad.
The address corresponds to the number on the encoder
The address is shown on the display DSP1.
E.g.:
MASTER : address = 0 encoder = 0
SLAVE 1 : address = 1 encoder = 1
SLAVE 15 : address = 15 encoder = F
The address of the unit is shown on display “DSP1” on the main
keypad.
Addressing controls
A maximum of 16 controls can be addressed, with address from
0 to 15; so for example :
A. 16 units with relative controller on board, il master con
indirizzo 0, gli slave, the master with address 0, the slave, in
read-only mode, with subsequent ones
B. 15 units with relative controller on board + a remote
controller as the master
Press MENU + for 3 seconds
or SERVICE MENU > SETTING ADDRESS
Press to select the address
Note : CONTROL ENABLE = YES, means the controller can read
data and send command; otherwise, the controller can only read
data.
Modular unit communication bus
