ClonerAlliance ViewLite AV User Manual

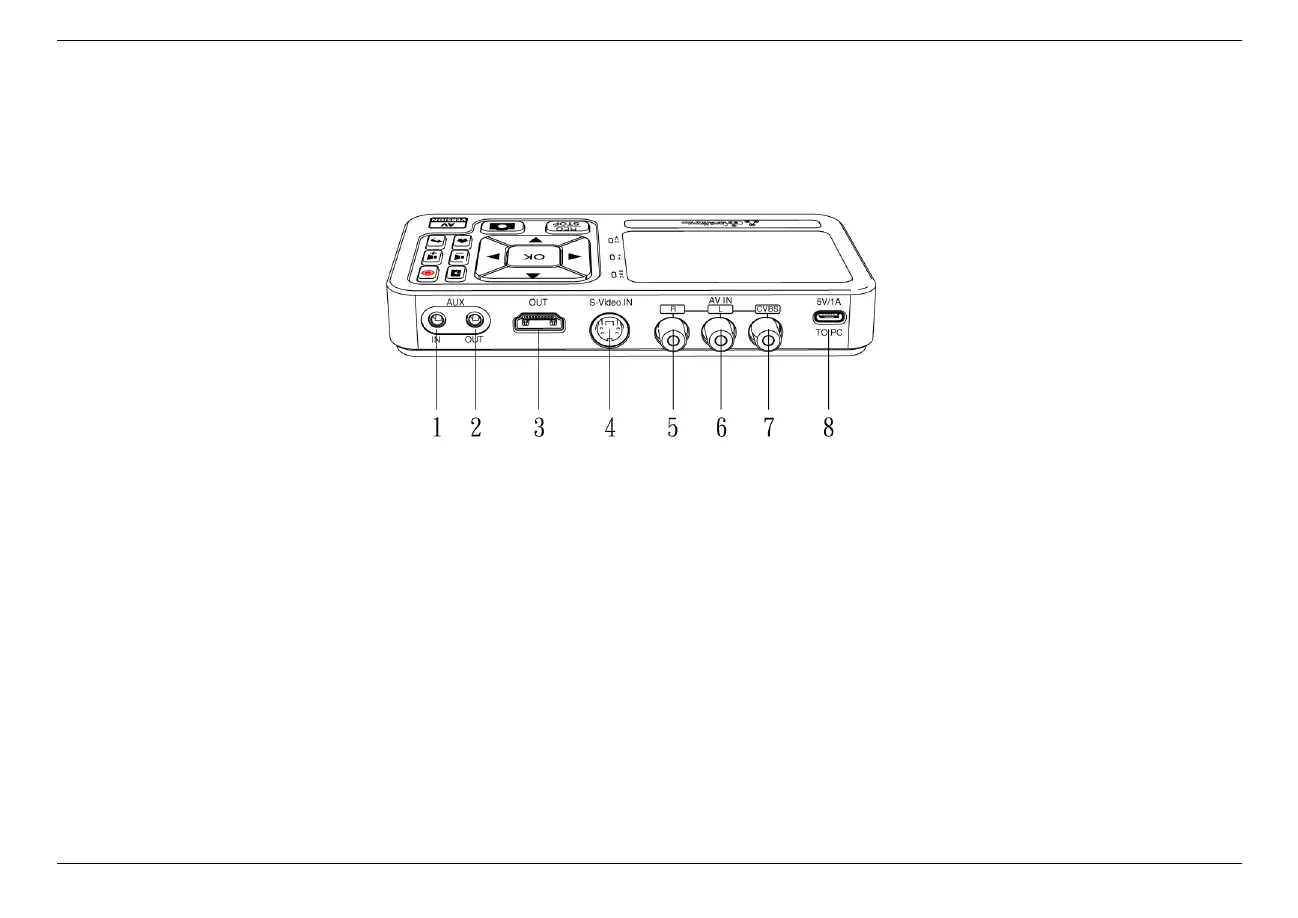

1.2 Product Diagram

1. AUX IN: Aux inputs

2. AUX OUT: Aux outputs

3. OUT: Connect an HDMI cable between ClonerAlliance ViewLite AV and TV.

4. S-Video IN: S-Video input

5. R: Right Audio inputs

6. L: Left Audio inputs

7. CVBS: CVBS inputs

8. 5V/1A/To PC: Connect the 5V/1A power adapter/Connect to PC via USB-C to USB-A Cable.

1.2. Product Diagram 2
