Cloud CXV-225 - Location of Internal Jumpers and Connectors; CXV-225 Connector and Jumper Details

CXV-225 & CXV-425 User Manual v1.0 13
FAN ASSY.
REAR OF AMPLIFIER
CON3 CON1
VCA CARD
SOCKETS
CON10
CON9
J1J2
BOSE
®
EQ CARD
SOCKETS
OUTPUT
TERMINALS
NOT TO SCALE

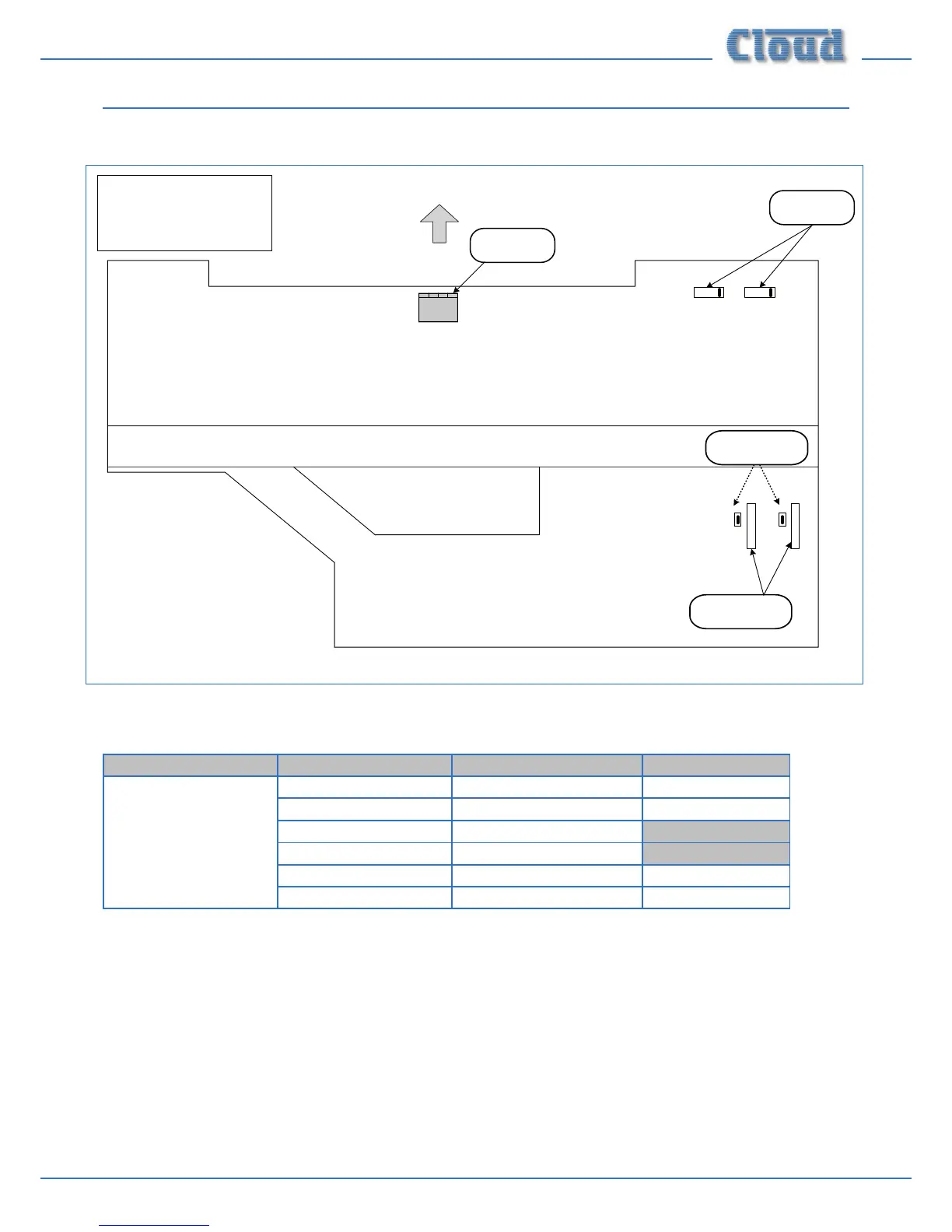

CXV-225: MAIN PCB LAYOUT.
TOP VIEW. ONLY PRIMARY
COMPONENTS SHOWN.
BOSE
®
EQ CARD
BYPASS JUMPERS
g.9: Internal jumpers - CXV-225
Location of Internal Jumpers and Connectors.
CXV-225 connector and jumper details
MODEL PCB REF Function Default Setting
CXV-225
CON1 CH1 VCA CARD SET
CON3 CH2 VCA CARD SET
CON9
CH1 BOSE® EQ CARD
CON10
CH2 BOSE® EQ CARD
J1 CH 1 EQ CARD BYPASS SET
J2 CH 2 EQ CARD BYASS SET
