CXV-425 connector and jumper details
MODEL PCB REF Function Default Setting
CXV-425
CON12 CH1 VCA CARD SET
CON13 CH2 VCA CARD SET
CON24 CH3 VCA CARD SET
CON25 CH4 VCA CARD SET
CON5
CH1 BOSE® EQ CARD
CON6
CH2 BOSE® EQ CARD
CON15
CH3 BOSE® EQ CARD
CON17
CH4 BOSE® EQ CARD
J1
CH 1 EQ CARD BYPASS SET
J2
CH 2 EQ CARD BYPASS SET
J3
CH 3 EQ CARD BYPASS SET
J4
CH 4 EQ CARD BYPASS SET
REAR OF AMPLIFIER
CON25CON12CON13CON24
(INPUTS 3 & 4 SUB BOARD)(OUTPUT SUB BOARD)
CON6
CON5
CON17
CON15
J1
J2
J3
J4
VCA CARD
SOCKETS
OUTPUT
TERMINALS

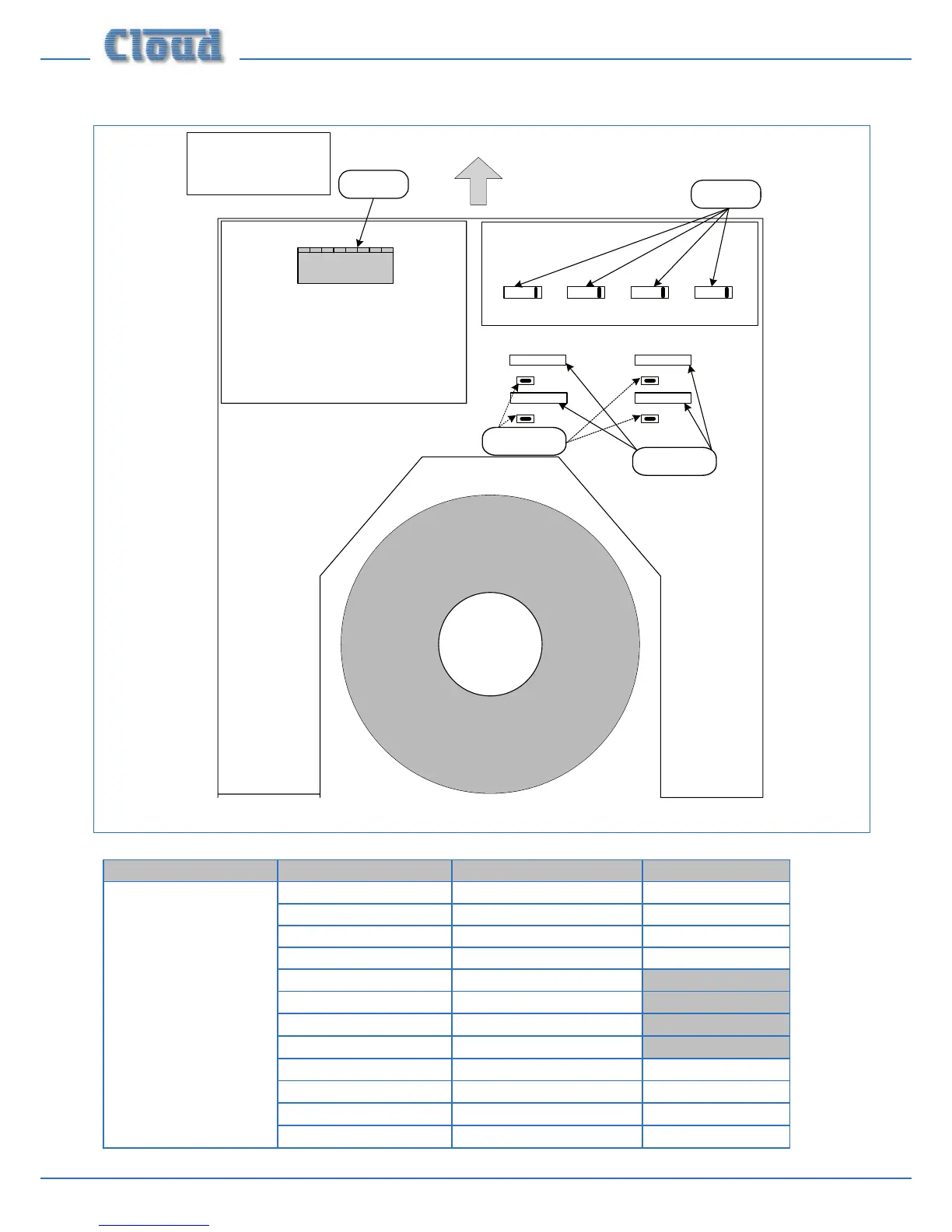

CXV-425: MAIN PCB LAYOUT.
TOP VIEW. ONLY PRIMARY
COMPONENTS SHOWN.
BOSE
®
EQ CARD
SOCKETS
BOSE
®
EQ CARD
BYPASS JUMPERS
NOT TO SCALE
g.10: Internal jumpers - CXV-425
