Cloud CXV-225 - Rear Panel Description

CXV-225 & CXV-425 User Manual v1.0 7
Rear Panel Description
1
INPUT CONNECTORS (one per channel)
2
INPUT LEVEL CONTROLS (one per channel)
3
HIGH PASS FILTER CONTROLS
(one per channel)
4
INPUT ROUTING SWITCHES –
1 for CXV-225, 3 for CXV-425
5
REMOTE VOLUME CONTROL CONNECTORS
– when remote control option is tted (one per
channel)
6
OUTPUT TERMINAL COVER
7
OUTPUT TERMINALS
8
AC MAINS CONNECTOR
9
EARTH SAFETY TAG
10
MAINS FUSE
11
COOLING FANS AND AIR EXHAUST –
CXV-425 only
1
2
3
4
5
6
8
9
10
11 11

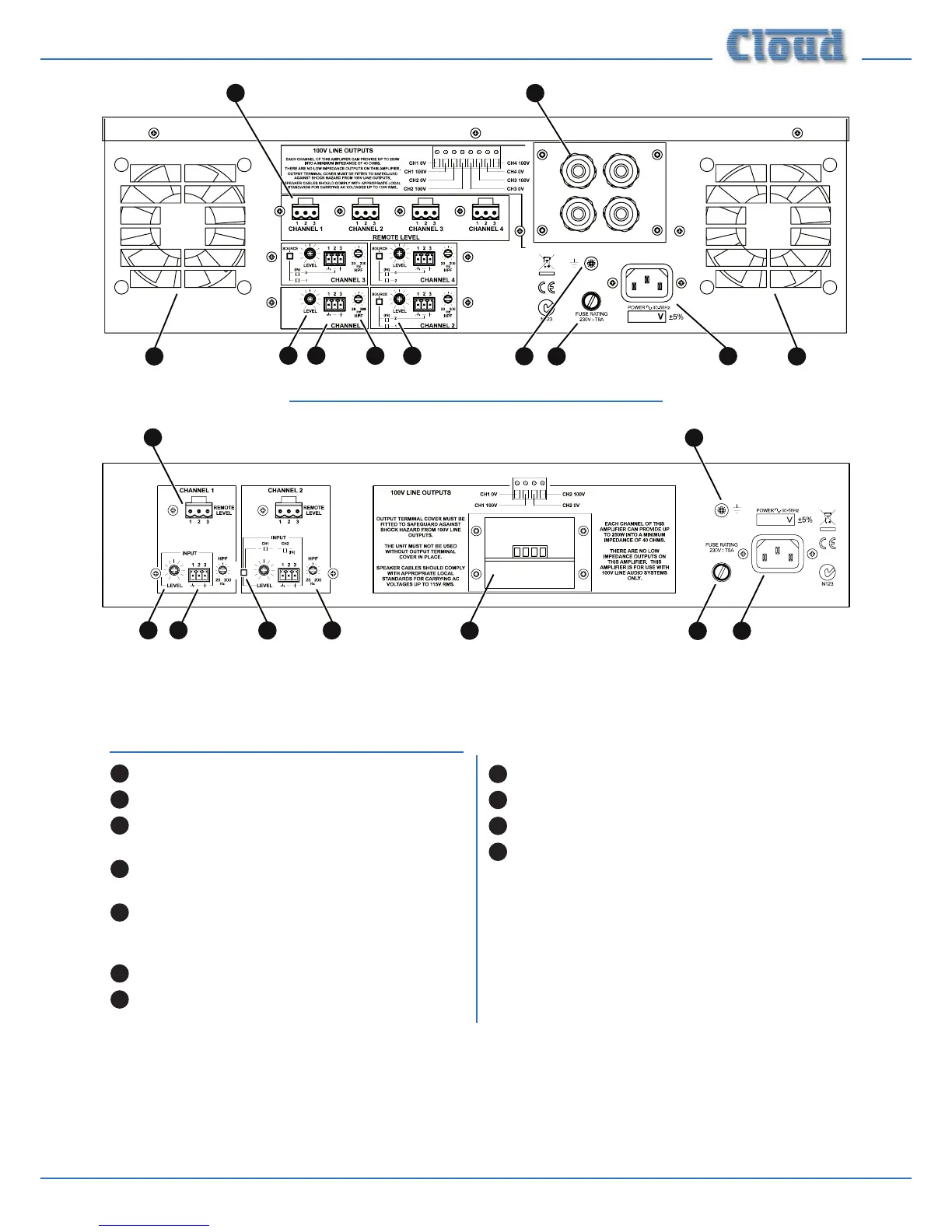

fig.4: CXV-425 Rear panel showing output terminal cover
fig.5: CXV-225 Rear panel showing output terminals
1
2
3
4
5
7
8
9
10
