Front Panel Description
1
SIGNAL LEDs (one per channel) – illuminate
when the output voltage exceeds approx. 12.5 Vrms
(18 dB below maximum output)
2
PEAK LEDs (one per channel) – illuminate if
maximum output voltage is reached (100 Vrms)
3
PROTECT LEDs (one per channel) – indicate
fault conditions
4
AC POWER SWITCH
5
POWER LED
6
AIR INTAKE GRILLES
1
2
3
4
5
6

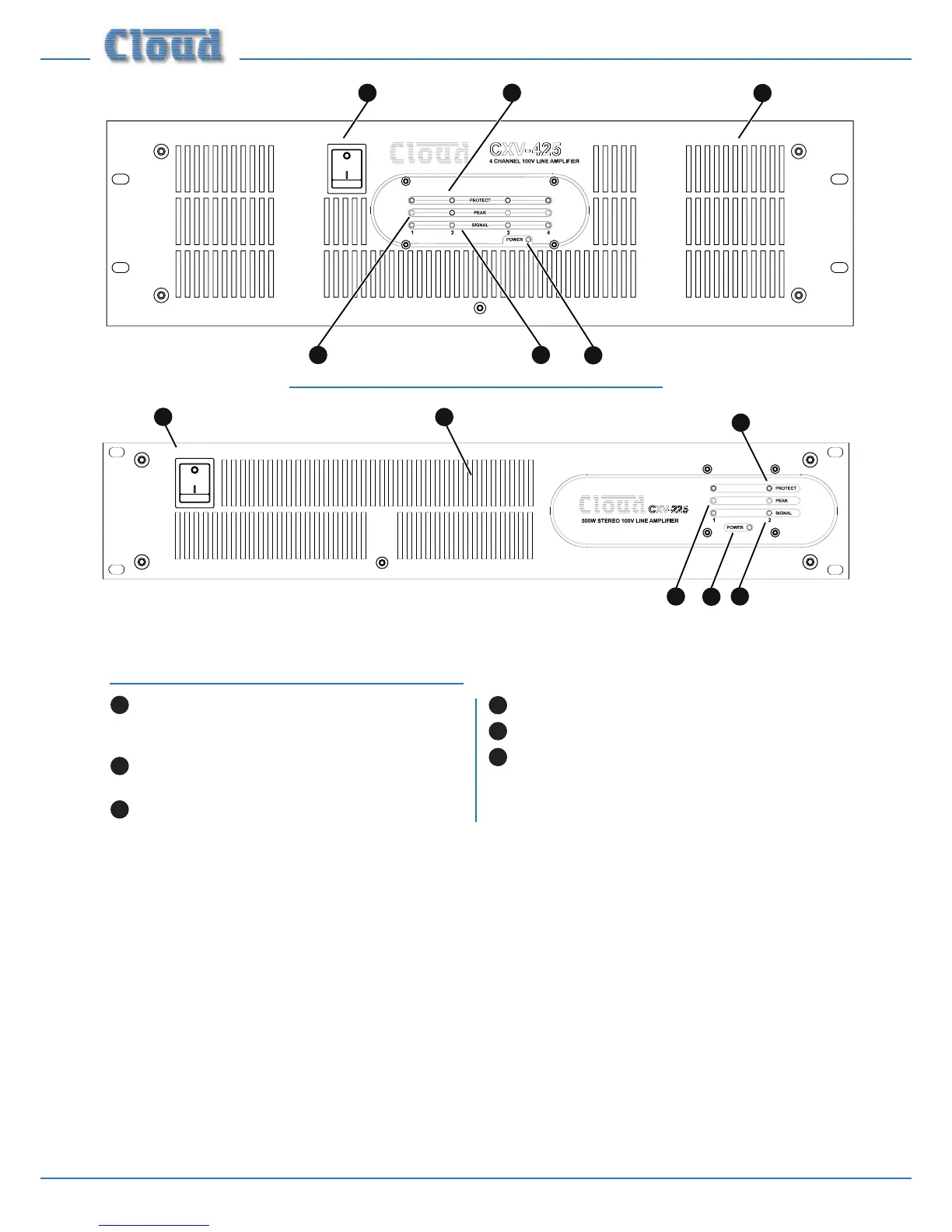

fig.2: CXV-425 Front panel
fig.3: CXV-225 Front panel
1
2
3
4
5
6
