25.1 AE-1 Aerobics Module
The Cloud AE-1 is a remotely located active module with facilities for a line level music input
and an unbalanced microphone input. The AE-1 is compatible with the Cloud Z4, Z8 and the
MPA-626 and can be used for any application where the facilities provided match the system
requirements; the prime application being the fitness suite where the aerobic instructor is
required to connect their music source and radio microphone directly into the house system.
Use 8 core screened cable to link the AE-1 to the facility input.
Important note: Refer to Section 19 before installing an AE-1

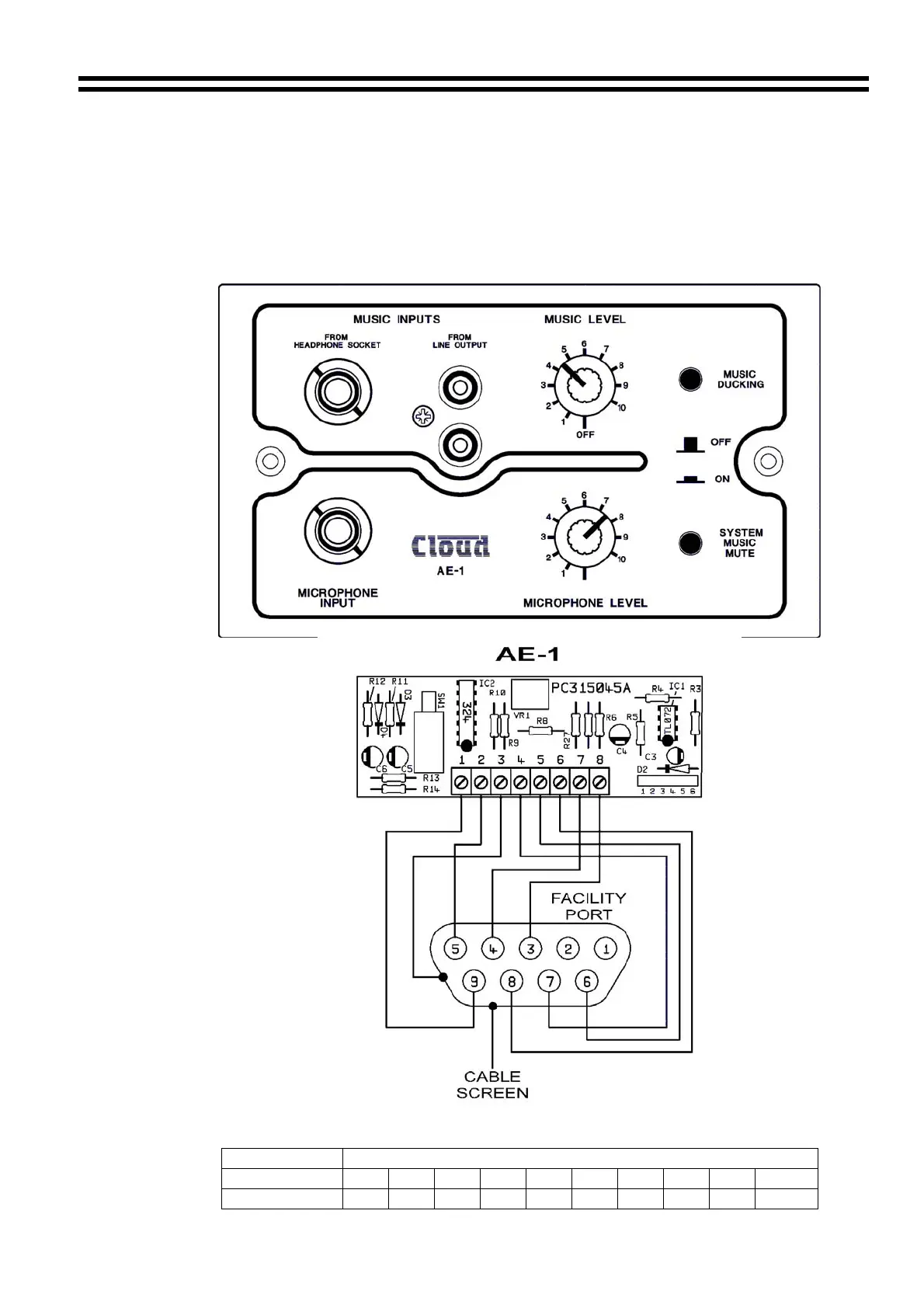

AE-1 CONNECTION TABLE
CONNECTOR PIN NUMBER
9 PIN SUB D 1 2 3 4 5 6 7 8 9 SHELL
AE-1 Terminals N/C N/C 8 7 2 5 4 6 1 3
30/05/03 V8
