ELECTRICAL COMPONENTS Forward/Reverse (F&R) Rocker Switch
1998/1999 PowerDrive Plus Vehicle Maintenance and Service Supplement Page 12-3
12
Key Switch Installation
1. Position key switch in the center dash, then install and tighten the switch retaining nut (6) to 40 in.lb (4.5 N-
m). Press the plastic cap (8) into place on the outside of the center dash (Figure 12-2, Page 12-3).
2. Connect the wires to the key switch terminals (see Section 11, Figure 11-2, Page 11-3) and then coat the
terminals with Battery Protector Spray (Club Car Part No. 1014305).
3. Install center dash by reversing removal procedure. Make sure key switch terminals (7) do not touch frame
and the center dash panel is properly seated and snapped into place (Figure 12-2, Page 12-3).
4. Reconnect battery wires (positive wire first) and tighten to 110 in.lb (12.4 N-m). Place Tow/Run switch in
RUN.
FORWARD/REVERSE (F&R) ROCKER SWITCH
Read DANGER and WARNING on page 12-1.
Testing the Forward/Reverse rocker switch
See Test Procedure 16, Section 11, Page 11-20.
Forward/Reverse (F&R) Rocker Switch Removal
1. Remove three self tapping screws (3) that hold F&R rocker switch case (2) to body (Figure 12-3, Page 12-4).
2. Remove red/white (4), blue (5), and white (6) 18 gauge wires from rocker switch (Figure 12-3, Page 12-4).
3. Depress locking tabs (1) on each end of switch and push switch out of case (Figure 12-3, Page 12-4).
Forward/Reverse (F&R) Rocker Switch Installation
1. Depress locking tabs (1) on each end of switch and push switch into case (Figure 12-3, Page 12-4).
2. Connect red/white (4), blue (5), and white (6) 18 gauge wires to rocker switch (Figure 12-3, Page 12-4).
3. Install the three self tapping screws (3) that hold the F&R rocker switch case (2) to the body (Figure 12-3,
Page 12-4). Tighten to 20 in.lb (2.2 N-m).

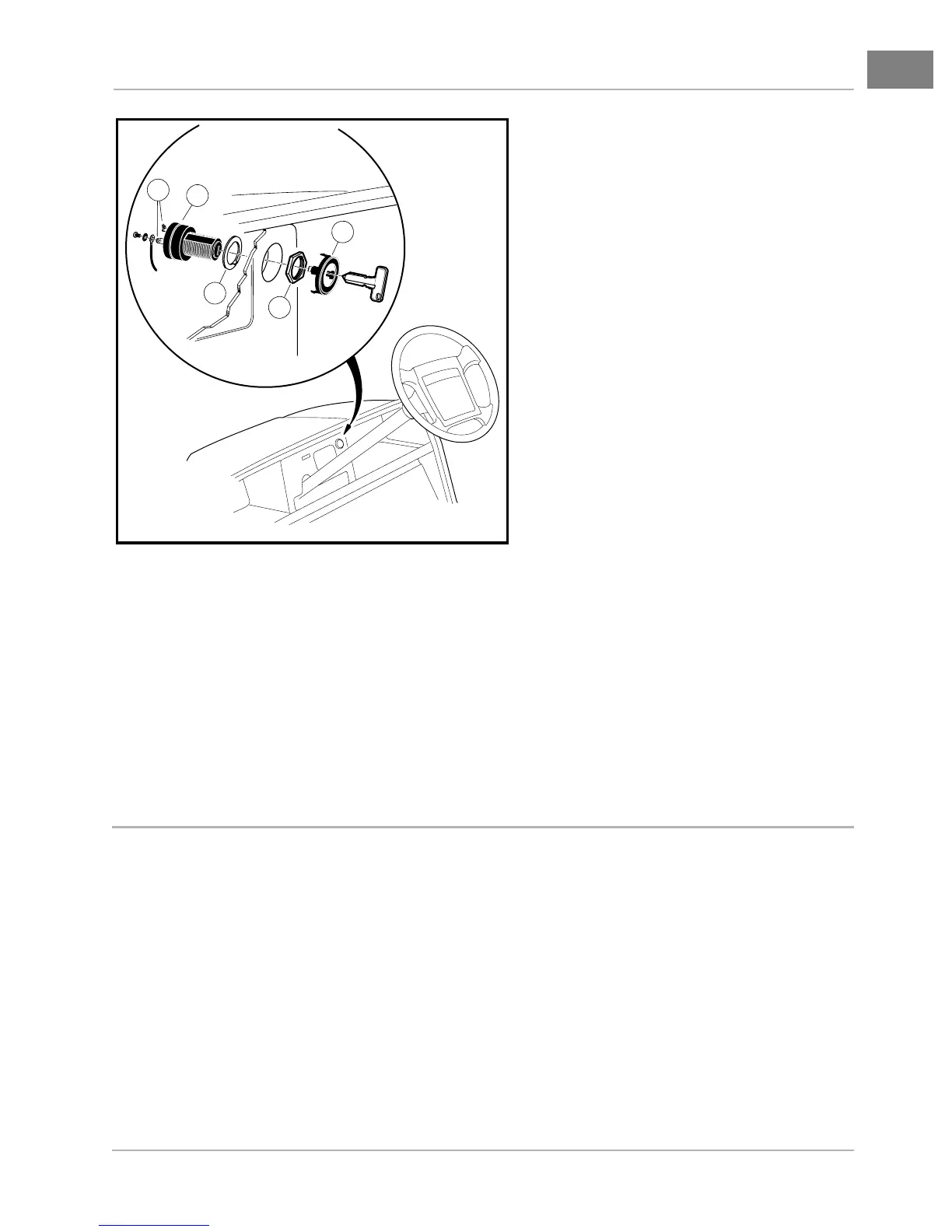

Figure 12-2 Key Switch
4
6
8
9
7
