ELECTRICAL COMPONENTS Tow/Run Switch
1998/1999 PowerDrive Plus Vehicle Maintenance and Service Supplement Page 12-19
12
TOW/RUN SWITCH
Read DANGER and WARNING on page 12-1.
Testing the Tow/Run Switch
See Section 11, Test Procedure 6, Page 11-16.
Tow/Run Switch Removal
1. Place Tow/Run switch in TOW and disconnect the battery wires as shown (Figure 12-1, Page 12-2).
2. Remove Tow/Run switch boot/hex nut (6) (Figure 12-15, Page 12-19).
3. Remove nut (9) and Tow/Run switch (10) from bracket (5) (Figure 12-15, Page 12-19).
4. Disconnect two-pin connector (11) and remove switch (Figure 12-15, Page 12-19).
Tow/Run Switch Installation
1. Installation is reverse of removal. Make sure groove on switch is aligned with tang on bracket. If knurled nut is
present, tighten nut (9) to 23 in.lb (2.6 N-m). Tighten Tow/Run switch boot/hex nut (6) to 16 in.lb (1.8 N-m) (Figure
12-15, Page 12-19).
2. Reconnect battery wires, positive cable first, and tighten to 110 in.lb (12.4 N-m). Coat terminals with Battery
Protector Spray (Club Car Part No. 1014305) to minimize corrosion.
3. Place Tow/Run switch in the RUN position.

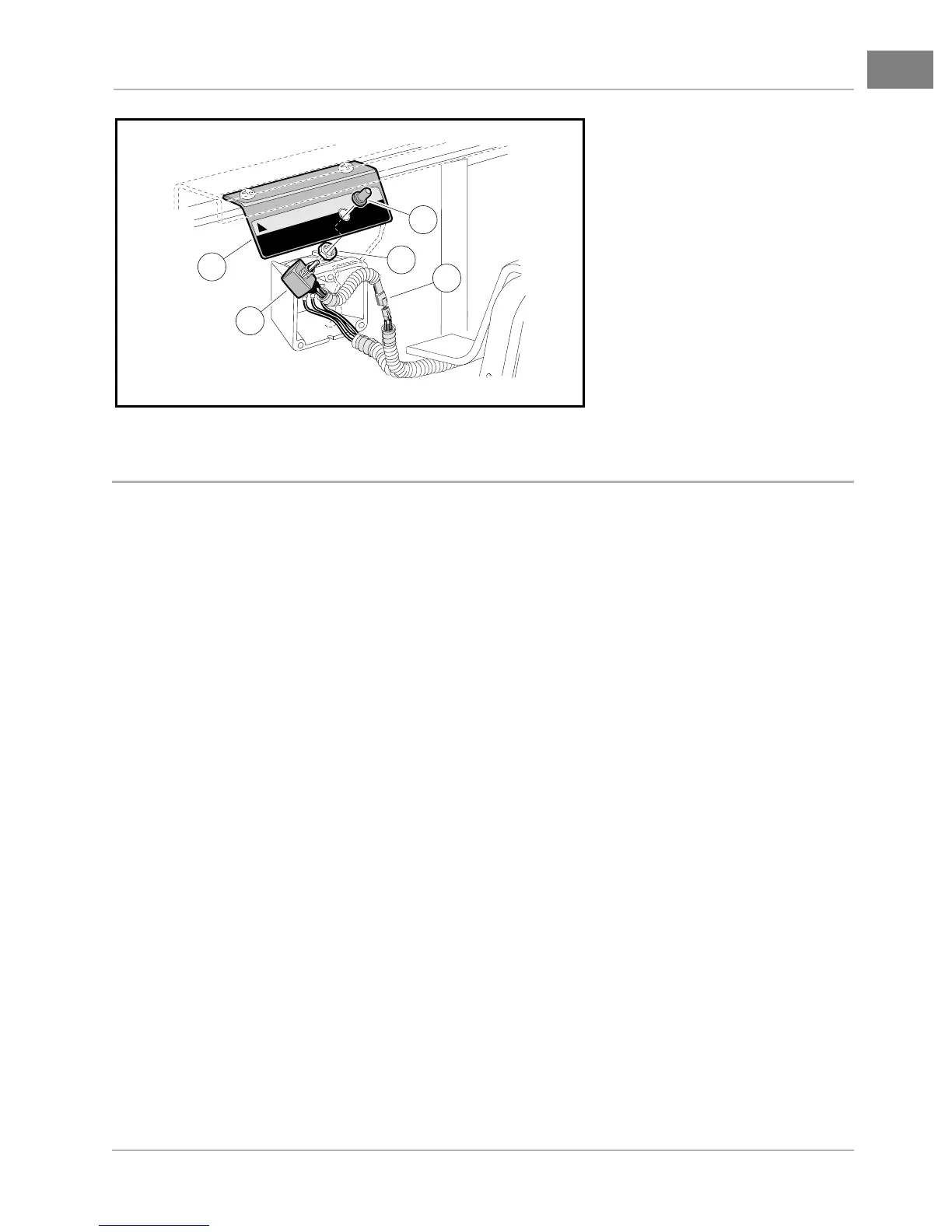

Figure 12-15 Tow/Run Switch
F
TOW
RUN
WARNING
6
9
5
11
10
