POWERDRIVE BATTERY CHARGER Troubleshooting
Page 14-8 1998/1999 PowerDrive Plus Maintenance and Service Supplement
14
TROUBLESHOOTING
Read DANGER and WARNING on page 14-1.
Use the following information (Pages 14-9 through 14-12) as guides for troubleshooting PowerDrive Plus vehicles.
The Troubleshooting Guide on pages 14-9 and 14-10 encompasses the entire vehicle electrical system.The flow
charts on pages 14-10 through 14-12 refers specifically to the onboard computer and battery charger. Test proce-
dures specified in these charts can be found on the pages immediately following.

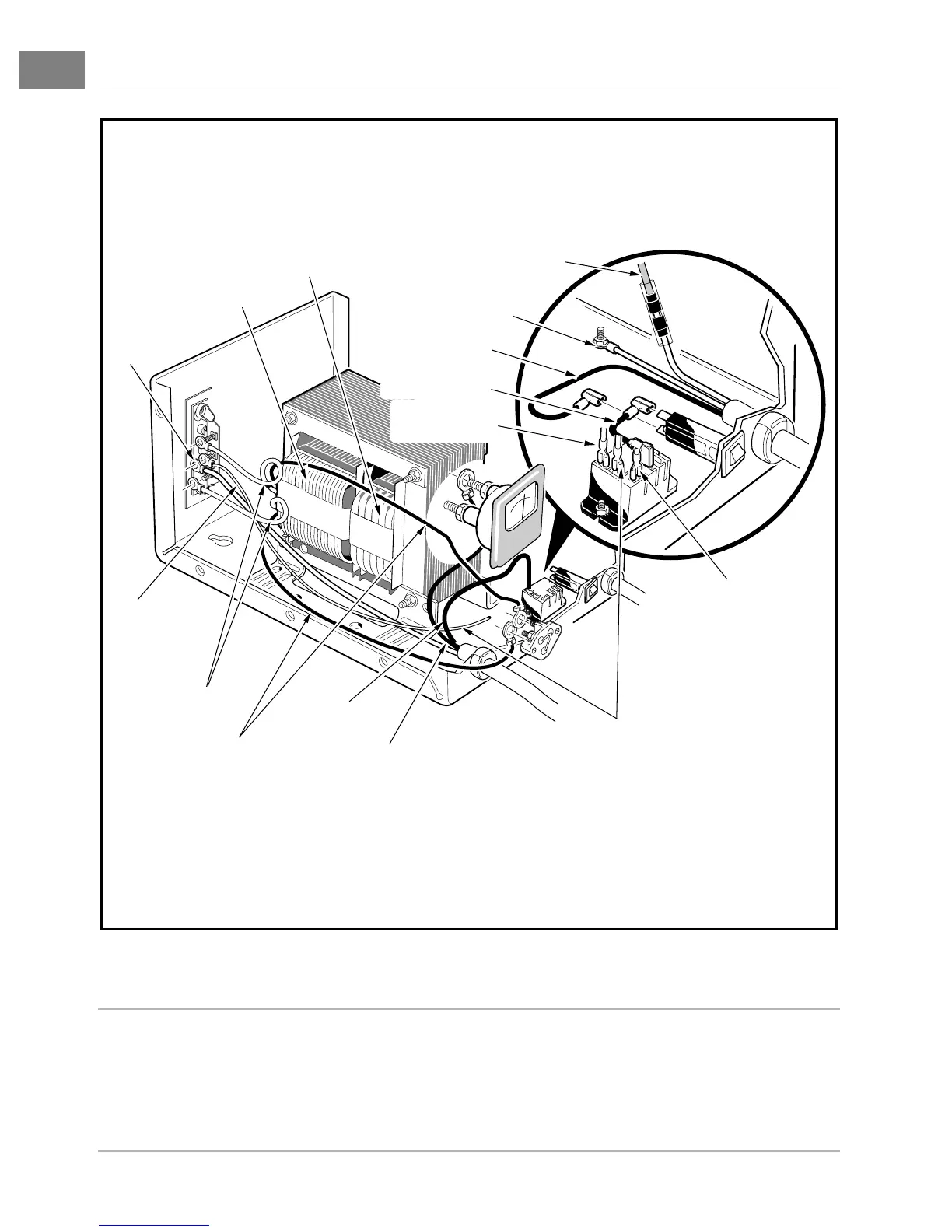

Figure 14-5 PowerDrive Battery Charger
DC CORD
RED WIRE
RED WIRE
TO RELAY
SECONDARY COIL
LEADS (TAN)
SECONDARY COIL
LEADS (BLACK)
DC CORD
BLACK WIRE
TO AMMETER
DC CORD
BLUE WIRE
TO RELAY
PRIMARY COIL
GREEN GROUND
WIRE
TAN WIRE TO
PRIMARY COIL
SECONDARY COIL
BLACK WIRE TO
CIRCUIT BREAKER
RED WIRE TO HEAT SINK
BLUE WIRE TO
DC CORD
TAN WIRE TO
PRIMARY COIL
BLACK WIRE TO
POWER RELAY
