User’s Manual Page 8

10.3 Connecting in parallel NPN sensors.

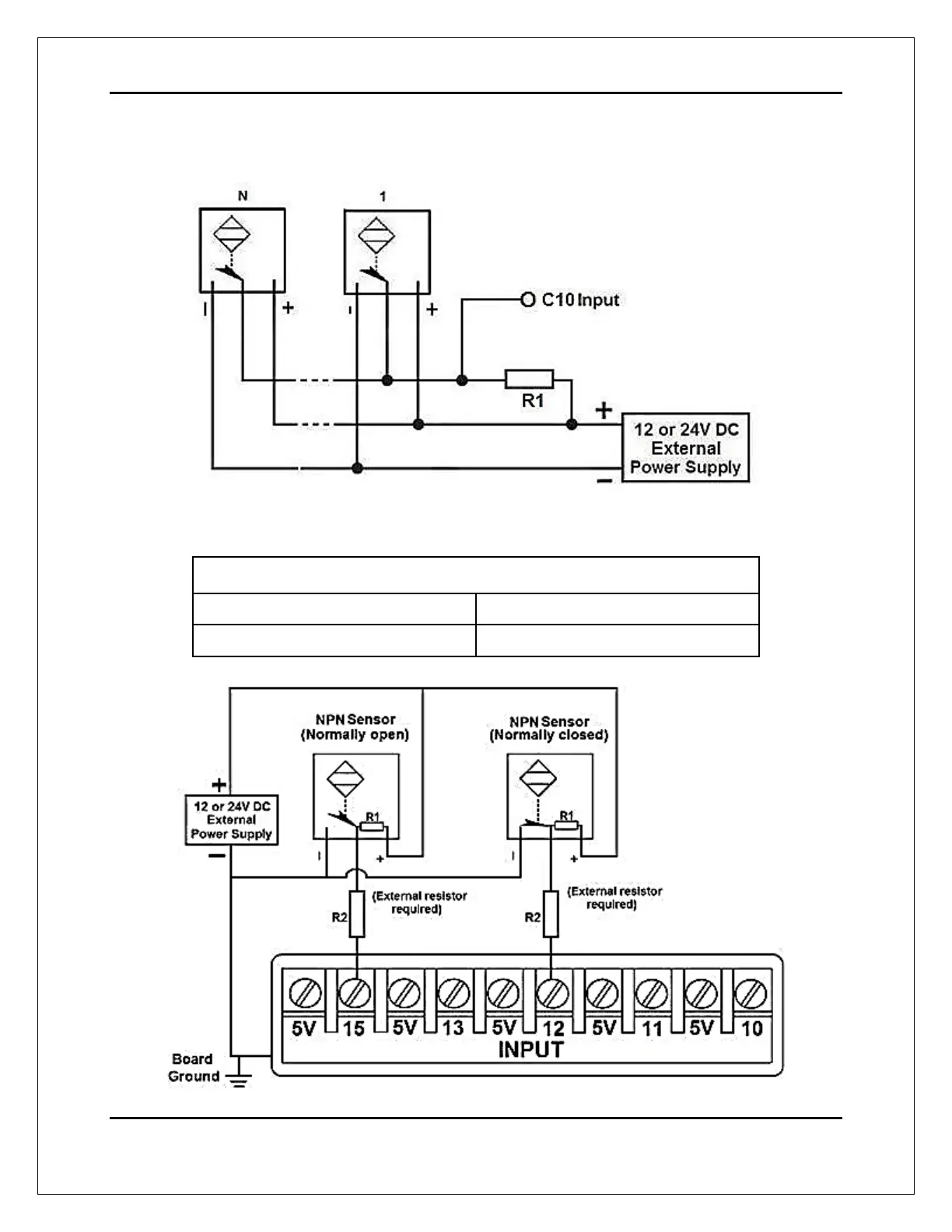

Fig. 5 Wiring diagram to connect in parallel NPN open collector proximity sensors.

Connecting NPN open collector proximity sensor with the C25

R1 Value (12V)

R1 Value (24V)

Approx. 10KΩ

Approx. 25KΩ

Fig. 6 Wiring diagram to connect NPN proximity sensors with internal pull up resistor.
