User’s Manual Page 5

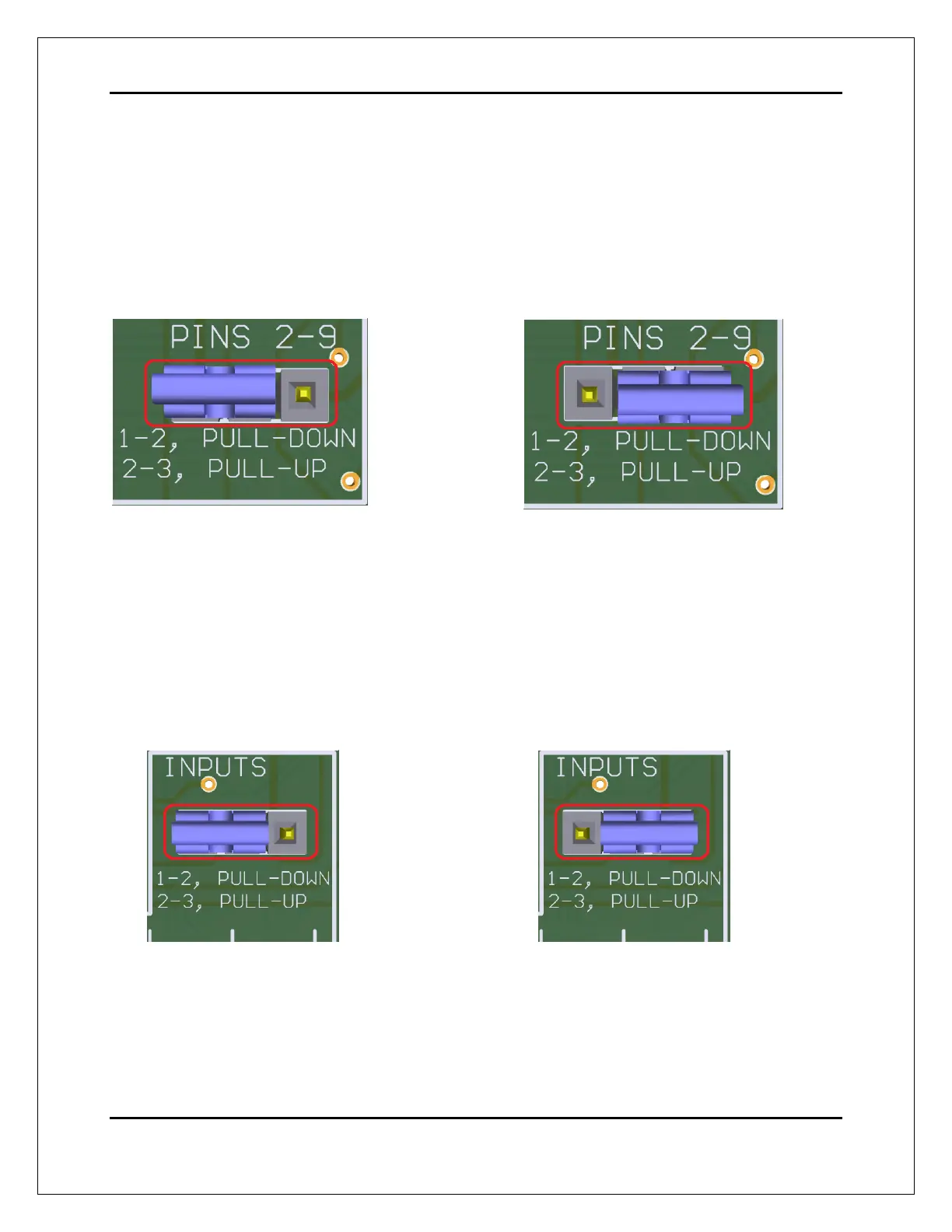

8.3 Using the Pull-up or Pull-down selection jumper for pins 2-9.

Jumper allows to change the input configuration for 2-9. Using the Pull-up or Pull-down

selection jumper for pins 2-9 the input voltage is pulled through a 4.7Kohm resistor to up

or down in this way:

1-2: PULL-DOWN 2-3: PULL-UP

8.4 Using the Pull-up or Pull-down selection jumper for pins 10, 11,

12, 13 and 15.

Jumper allows to change the input configuration for pins 10, 11, 12, 13 and 15. Using

the Pull-up or Pull-down selection jumpers for those pins will pull them up or down

through a 4.7Kohm resistor:

1-2: PULL-DOWN 2-3: PULL-UP
