OpenLoopwithEnvironmentalExhaust


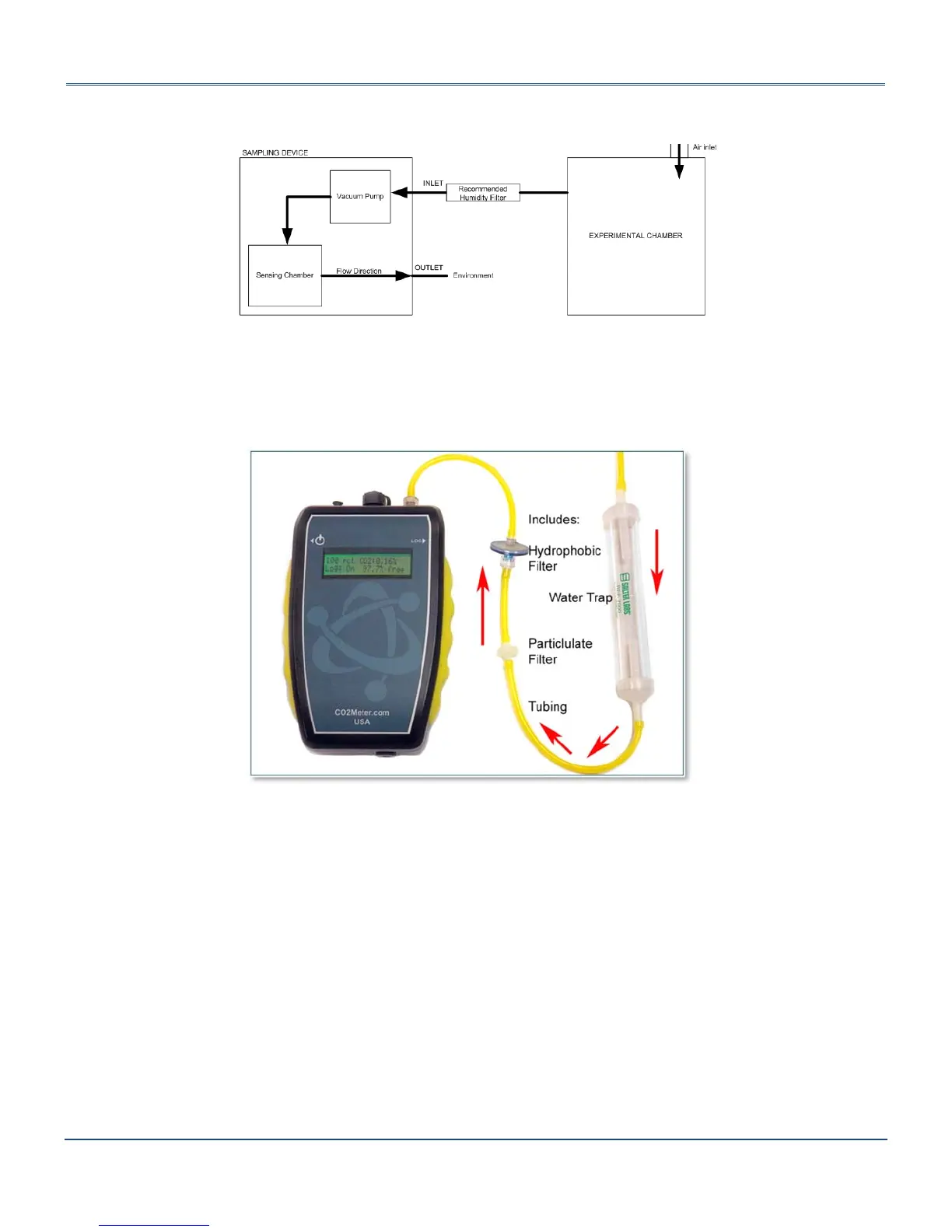

Figure5:OpenLoop
Werecommendinstallingtheincludedhumidity/contaminantfilterstoensurethesensingchamberandpump
bafflestaysclearandcorrosion‐free.ReplacementsfiltersareavailableonCO2meter.com.

Figure6:FilterInstallationandOrientation
Calibration
Allunitsarefactory‐calibratedwithmultiplereferencepointsofgas,andhavebeenverifiedtobeaccuratewithin
theirspecificfunctionalitybeforeshipment.However,iftheunitisseverelyjoltedorotherwisemechanically
disturbed,thesensorcandriftrequiringrecalibration.Allcalibrationproceduresfollowasingle‐pointcalibration
routinethateffectivelyshiftsthezero‐pointoftheCO2sensor.
Supplycalibrationgastotheunitandconnecttheunittoapersonalcomputer.Openthecalibrationscreeninthe
GasLab
®
software.ClicktheCALIBRATEbuttoninthecalibrationtabforthedesiredgas,locatedinthe
CONFIGURESENSORscreen.Aslongasthegasconcentrationisstable,theunitshouldinstantlyreflectthe
calibratedvalue.Thiscanbeconfirmedbywatchingthedisplay.Toseethecalibrationvalueinrealtime,clickin
theCOLLECTREAL‐TIMEbuttontocapturethesevaluesbeforeopeningtheconfigurationscreen.

Particulate
Filter
