Coats CHD-6330 - Electric Hook up; Sense of Rotation Check

6
3,93
1,96
5,90
3,93
3,93
inches
7.3

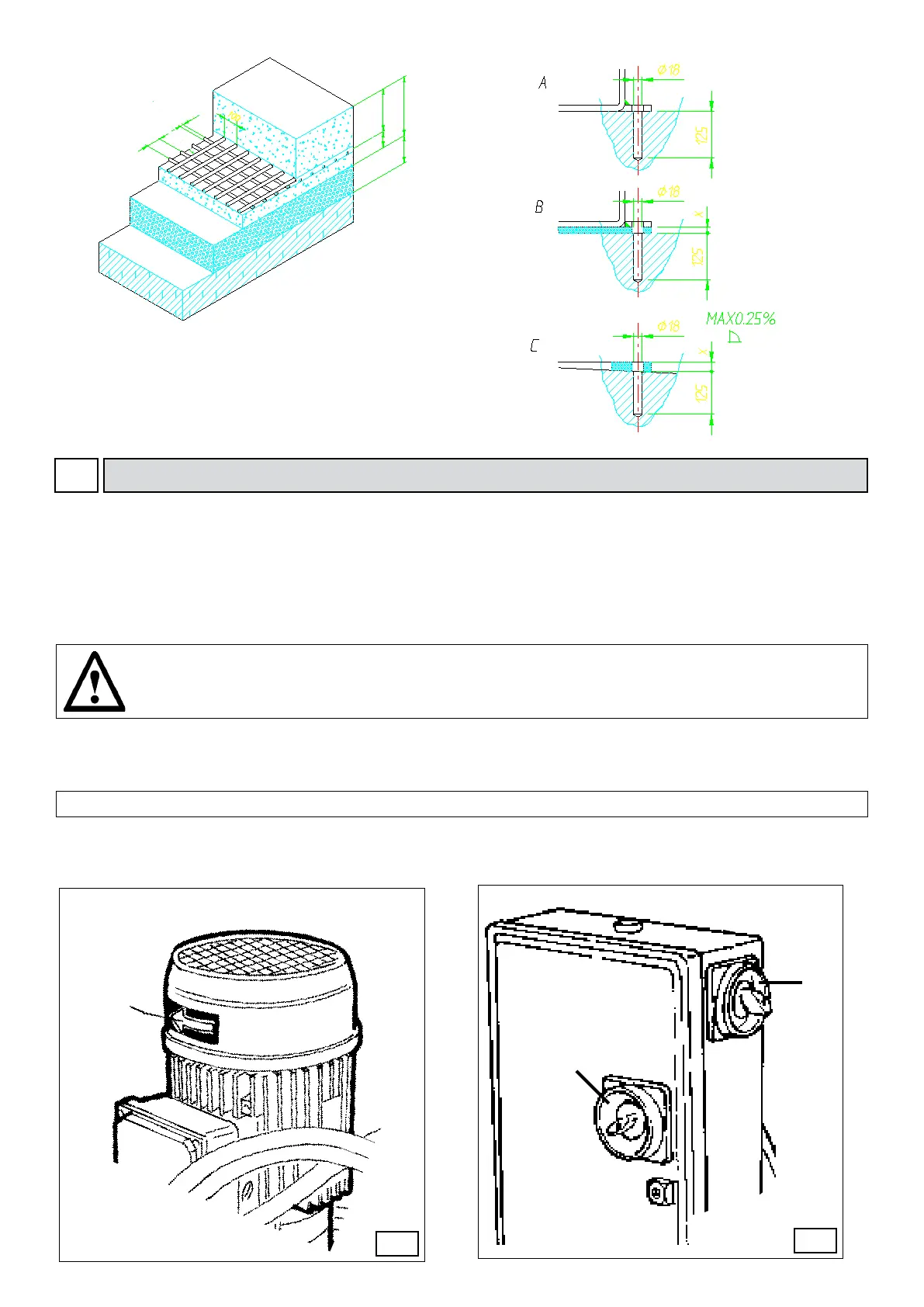

ELECTRIC HOOK UP
Before making any electric hook up, check to be certain that the main voltage corresponds to that stamped on the voltage tag
(attached to the cord near the tire changer’s plug).
It is absolutely essential that :
- The system is equipped with a good grounding circuit.
- The current intake is adeguately protected against overcurrents with fuses or automatic magneto-thermic switch
Not e the req u i red p o w er d r a w as hig h lighted on t h e da t a pl a te xed t o the tire chan g e r. Check t o ma k e su r e th e
sho p electric wir i n g circuit is d imensioned s u f ciently to c a rry this.
Work on the electric system, even if minor, must be done exclusively by professionally qualied electrician.
Manufacturer shall not be liable for any injury to persons or damage to things caused by failure to comply with these regulations and
can cancel warranty coverage.
Connect the machine to the mains, switch “ON” (5, g. B/7) and check that the gearbox motor rotation corresponds to the indicating
arrow (6, g. B/6).
If not, switch two wires in the plug .
SENSE OF ROTATION CHECKS
