Chapter 1: Introduction
The SAILOR 6280/6281 AIS System 5
11111
Introduction
Overview of a SAILOR 6281 AIS Basic System
The following figure shows the system configuration.
The SAILOR 6004 Control Panel is connected to the SAILOR 6282 AIS
Transponder through a LAN connection (LWE/IEC 61162-450), here after
called LWE. The SAILOR 6281 AIS Basic System is operated using the touch
display of the SAILOR 6004 Control Panel.
Features
• AIS Class A compliant and approved
• Inland AIS compliant and approved
• Active GPS antenna included
• Interface for ThraneLINK applications and INS available
• Programmable interface for connection to sensors using the NMEA
interface versions 2.0, ...,4.1
• Touch screen on the SAILOR 6004 Control Panel

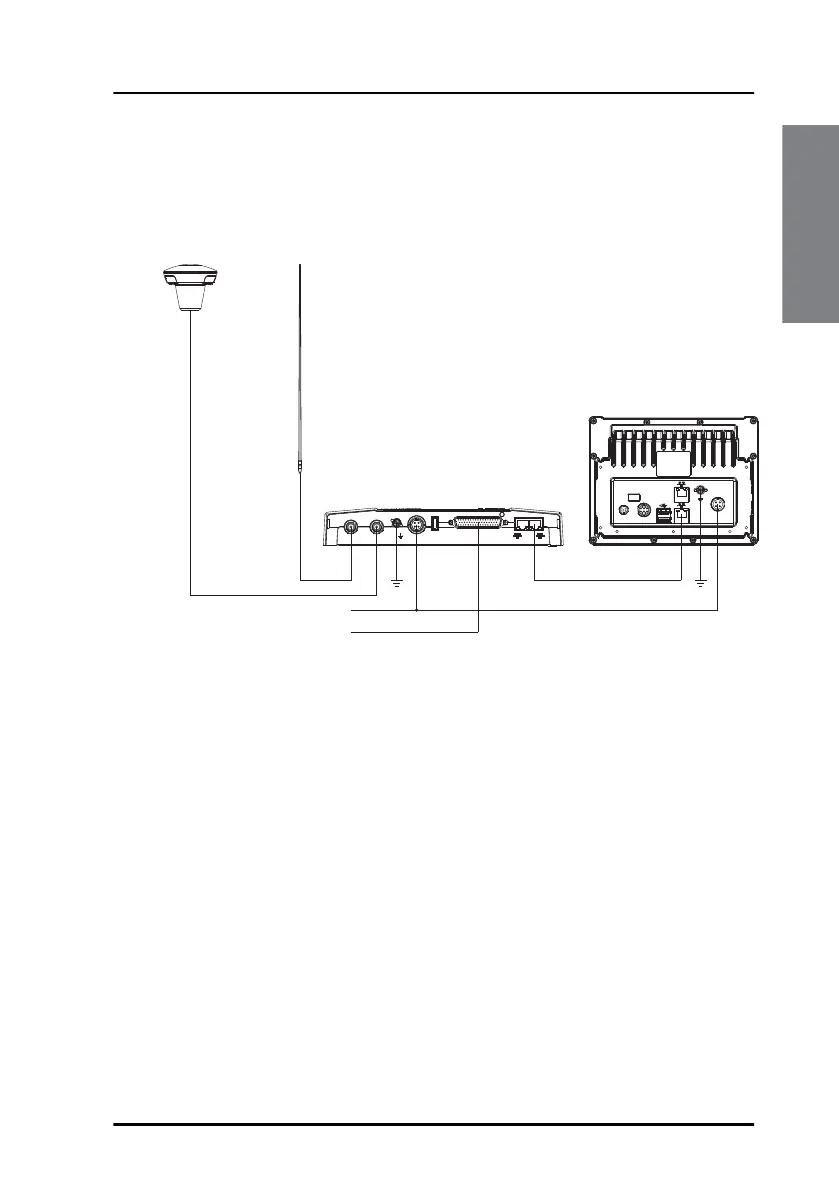

Figure 2: System configuration for the SAILOR 6281 AIS Basic System
GPS Antenna - Active
SAILOR 6004 Control Panel
VHF Antenna
12-24 VDC
Connector for interface connections
VHF/GPS GPS 12-24V DC
FUSE
SUB-D50
1
SAILOR 6282 AIS Transponder
or connection board
SAILOR 6285
ACC
AUX
TEST
PWR
