COBHAM Sailor 6390 Assembly Instruction

406390A-00500 Sailor 6390 Navtex Receiver
406390A Navtex Receiver
97-138962-A Assembly Instruction
22 May 2013 Page 8 of 9
Place 3 x screws and o-rings like above in cover for
Navtex receiver.

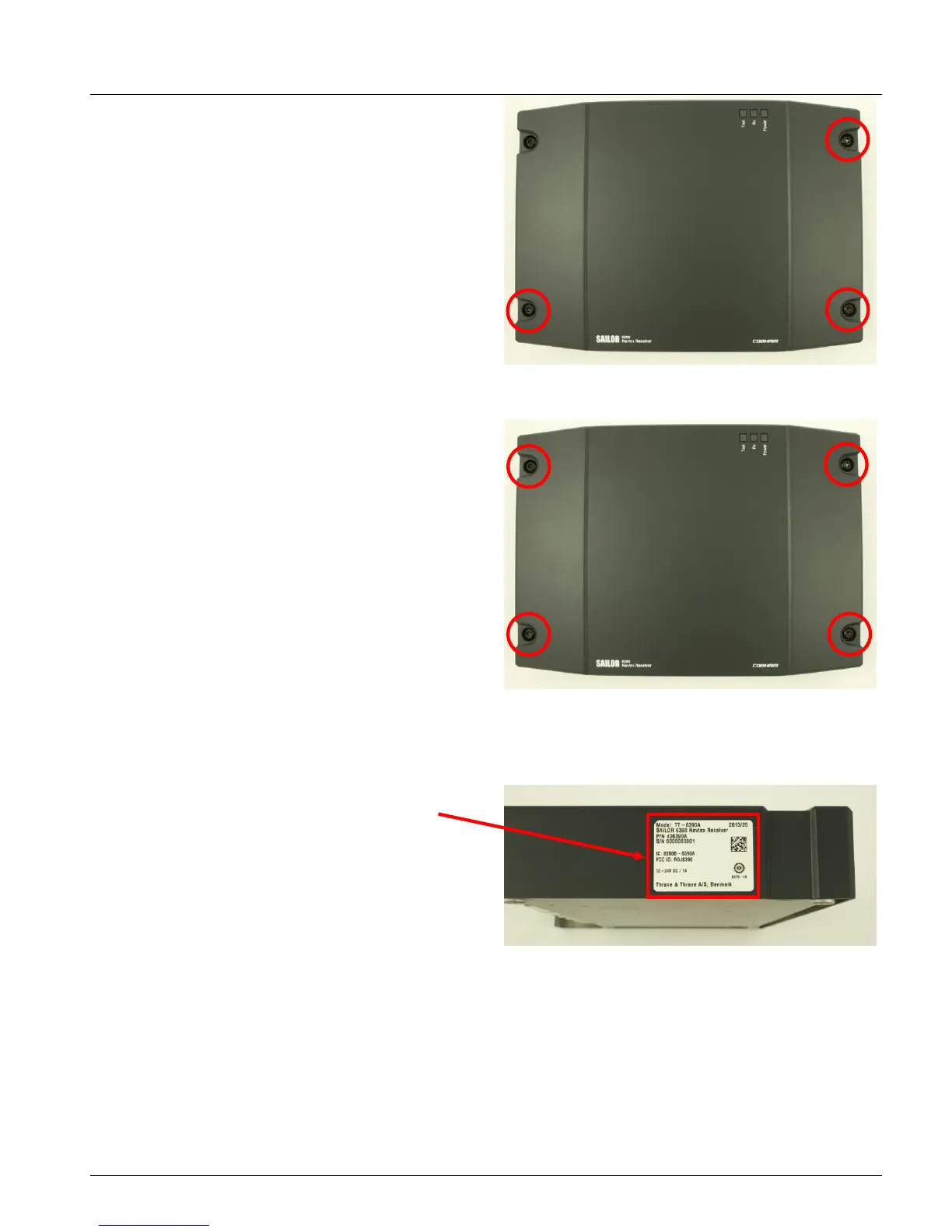

Figure 18
Place and center Cover For Navtex with screws and
o-rings from above on the chassis for Navtex receiver.
Thigthen the four screws.
#T1: El-screwdriver 0.8 Nm ± 0.1 Nm Torx 20.
Rotational speed: 600 ±50 rpm.
Figure 19
7.6. Place type label.
Place Type label with layout part no. 99-137283 on
Navtex receiver.
#M1: Type label part no. 48-124727.
Figure 20
