COBHAM Sailor 6390 Assembly Instruction

406390A-00500 Sailor 6390 Navtex Receiver
406390A Navtex Receiver
97-138962-A Assembly Instruction
22 May 2013 Page 2 of 9

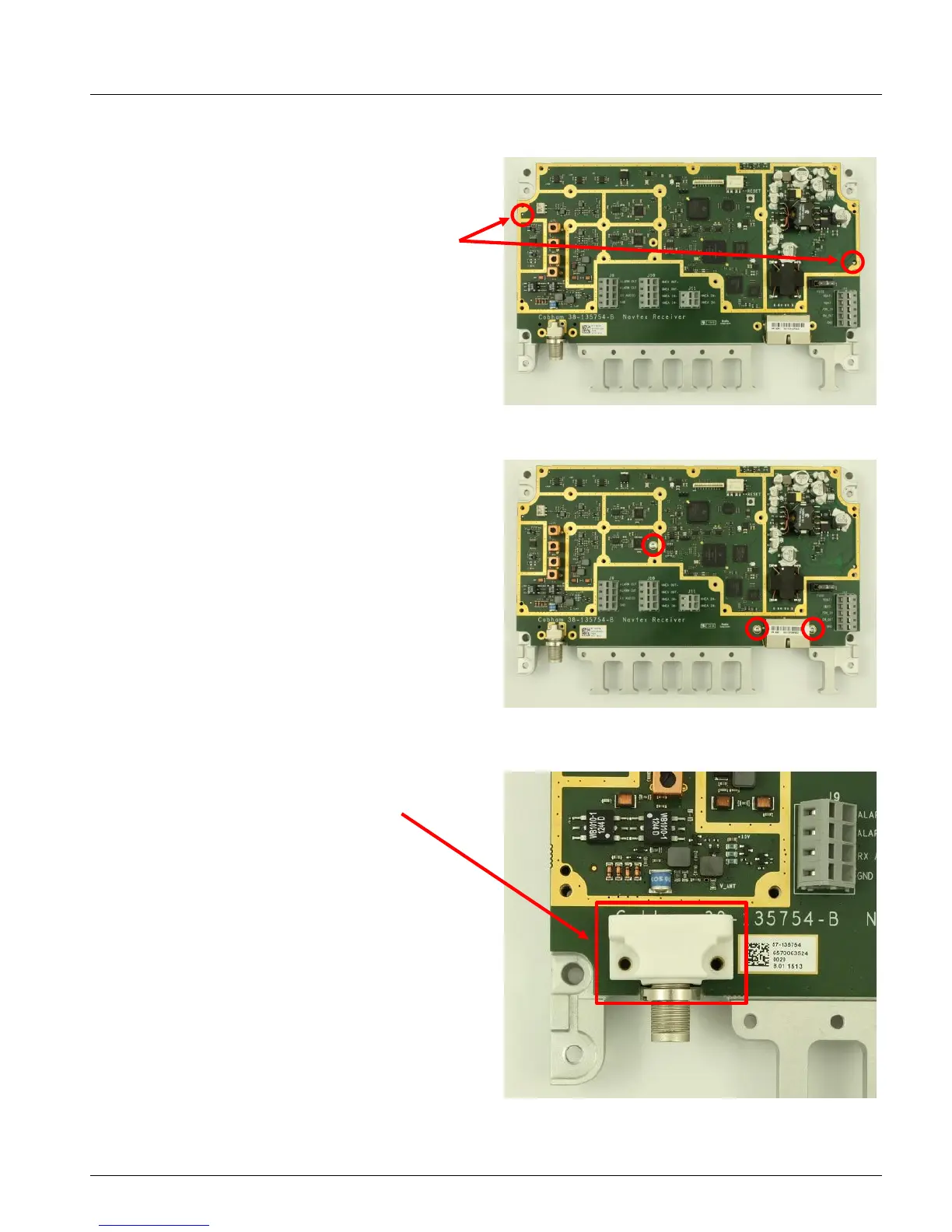

7. Navtex receiver assembly.
7.1. Assembly of Navtex chassis.
Place Navtex Main Unit part no. 60-135754 on Chassis
for Navtex Receiver part no. 41-136668.
Make sure the two chassis guide pins are aligned
with the two main unit holes.
Figure 1
Mount 3 x screw part no. 51-205390-308 to fixate main
unit on the chassis.
#T1: El-screwdriver 0.8 Nm ± 0.1 Nm Torx 10.
Rotational speed: 600 ±50 rpm.
Figure 2
Place Connector Base part no. 41-136674 on TNC
connector J6.
Figure 3
