COBHAM Sailor 6390 Assembly Instruction

406390A-00500 Sailor 6390 Navtex Receiver
406390A Navtex Receiver
97-138962-A Assembly Instruction
22 May 2013 Page 3 of 9

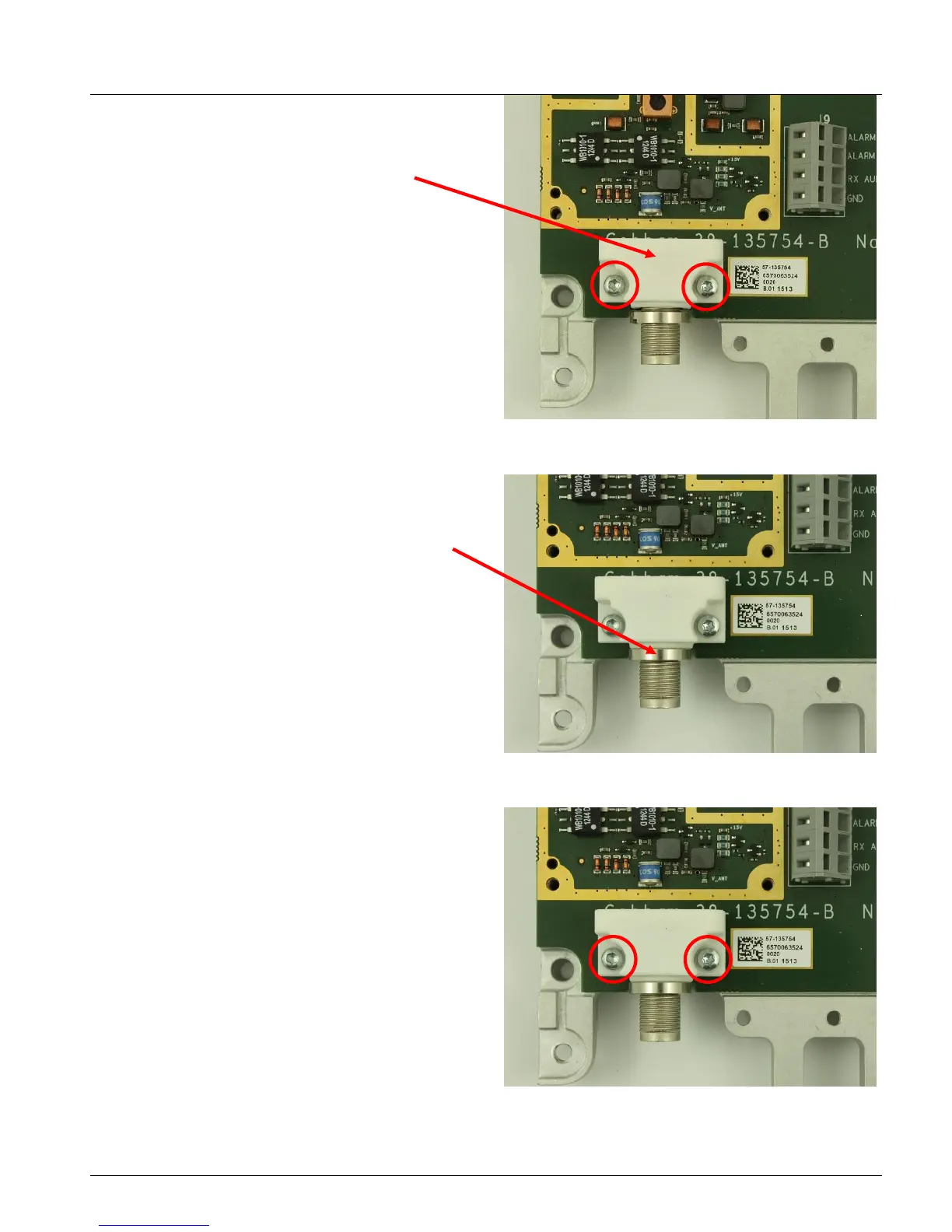

Fixate the connector base with 2 x screw part no.
51-205390-308.
Make sure the connector base still is loose after
applying the two screws.
Figure 4
Tighten TNC connector nut.
#T2: El-screwdriver 1.15 Nm ± 0.1 Nm. Special nut tool
for TNC connector.
Figure 5
Tighten the two screws.
#T1: El-screwdriver 0.8 Nm ± 0.1 Nm Torx 10.
Rotational speed: 600 ±50 rpm.
Figure 6
