COBHAM Sailor 6390 Assembly Instruction

406390A-00500 Sailor 6390 Navtex Receiver
406390A Navtex Receiver
97-138962-A Assembly Instruction
22 May 2013 Page 4 of 9

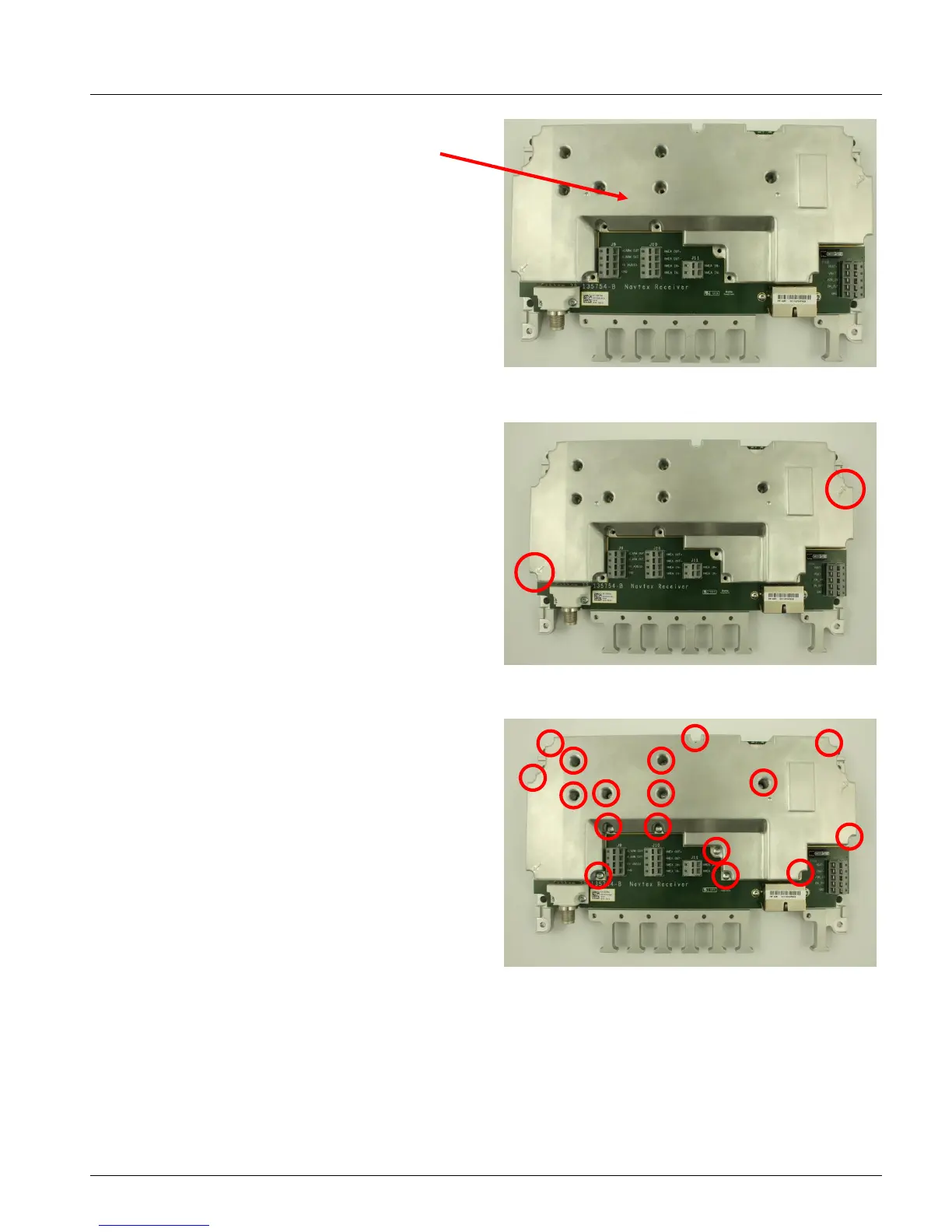

7.2. Shield assembly.
Place Shield for Navtex part no. 41-136670 on Navtex
main unit.
Figure 7
Mount 2 x screw part no. 51-205390-308 to fixate
shield on the chassis.
Make sure the shield is still loose after applying the
screws.
Figure 8
Mount 17 x screw part no. 51-205390-308 on the
shield.
Make sure to follow the order, starting with screw
marked as number 1.
#T1: El-screwdriver 0.8 Nm ± 0.1 Nm Torx 10.
Rotational speed: 600 ±50 rpm.
Figure 9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
