Field replacement procedure – SAILOR 1000 XTR Ka/GX-R2 RF pack
Doc. No.: 97-178838-C

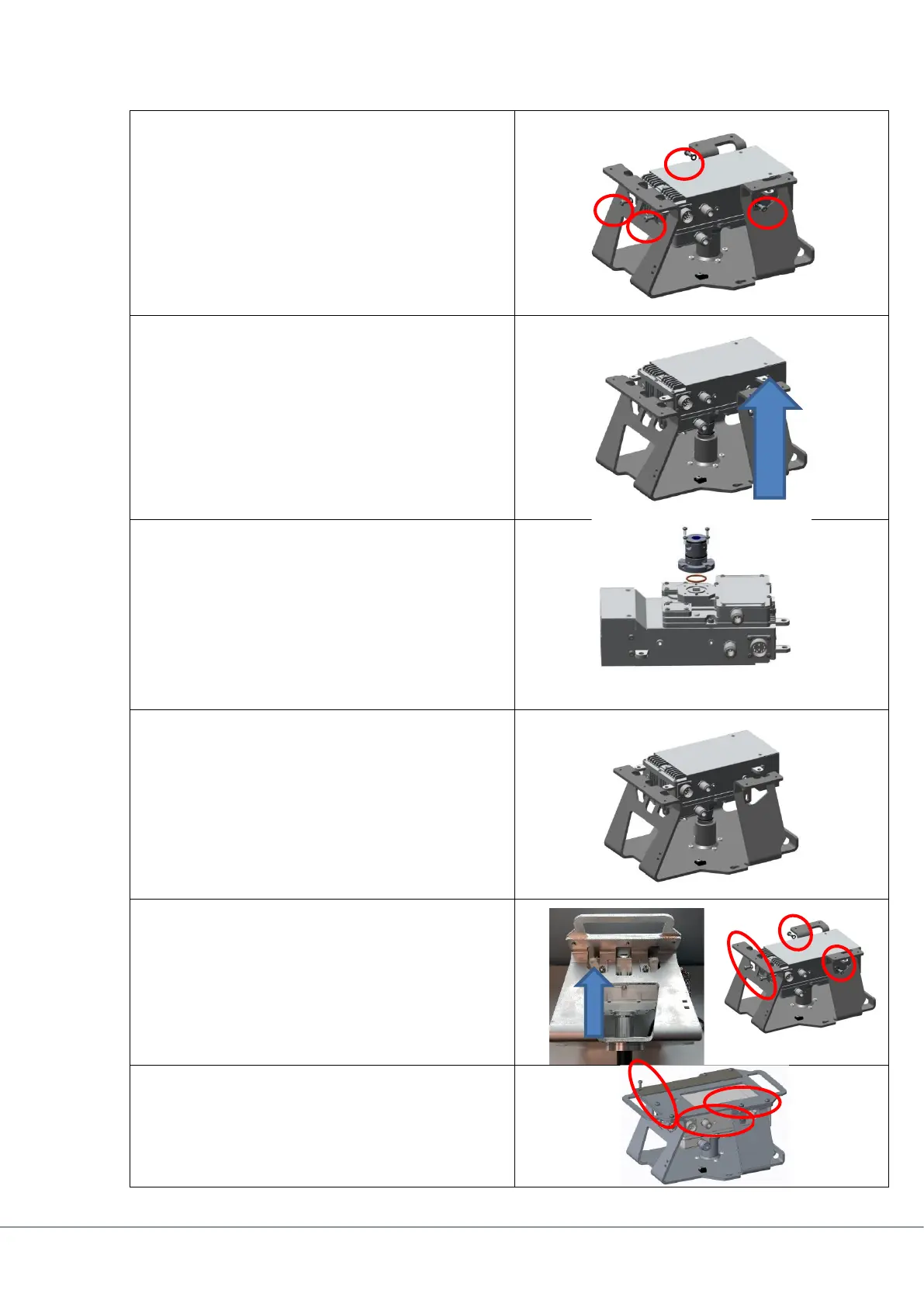

14. Remove the four screws holding the transceiver
unit
15. Gently slight out the transceiver unit.
16. Remove the polarizer from old unit.
Mount the polarizer on the new unit. Make sure
to keep the O-ring in place. 1 Nm
17. Gently slight the transceiver unit back in.
Press it all in.
Install the four screws.
18. Install the feed horn. Tighten by hand.
Push back the transceiver unit 1 mm. (That’s to
make sure, that once installed again, the feed
horn doesn’t push on the polarizer)
Tighten the four screws. 4.5 Nm.
Remove the feed horn
19. Install the counterweight. 7 screws. 4.5 Nm
