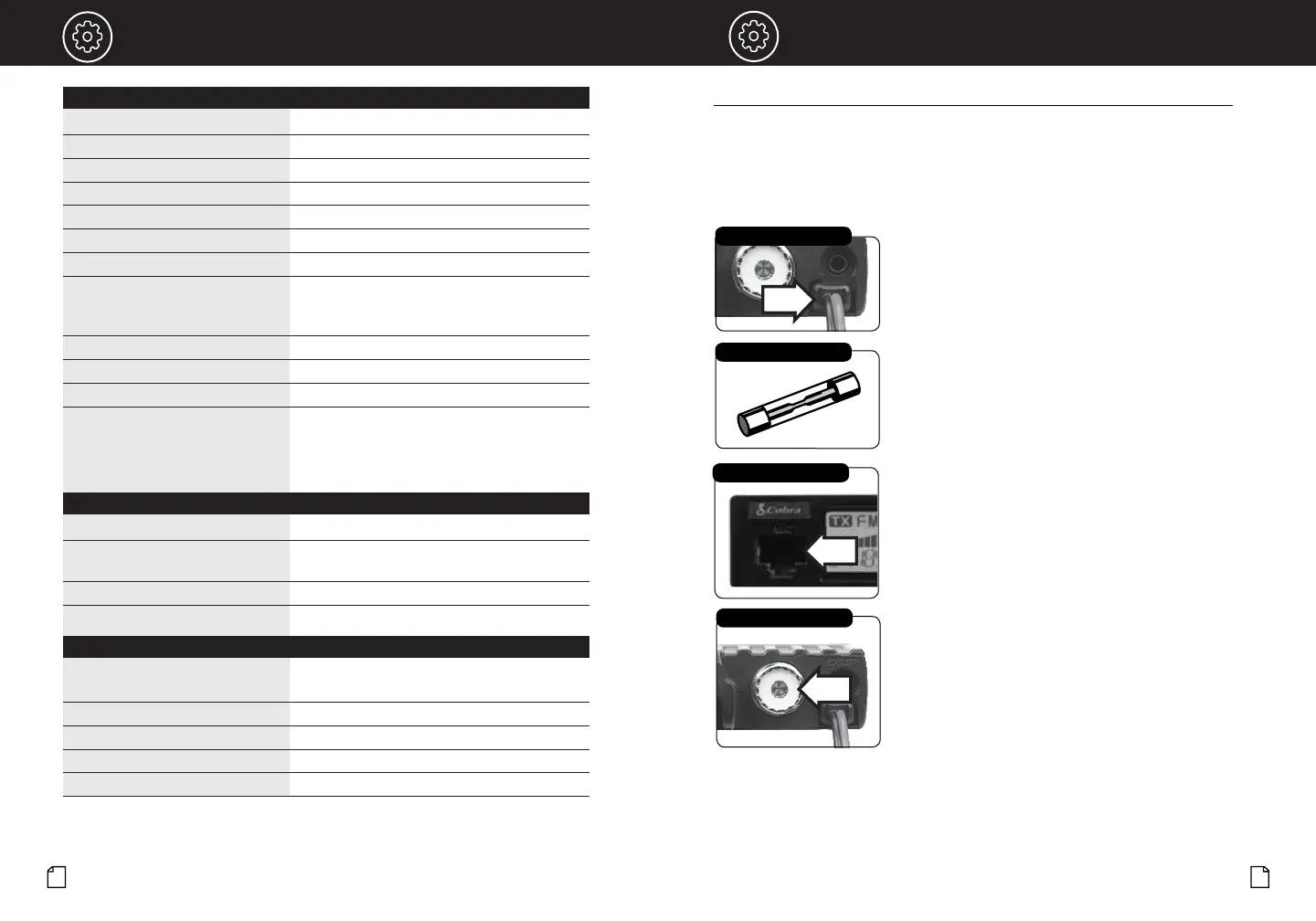

Your Cobra CB transceiver is specifically designed for the environment encountered in
mobile installations. The use of all solid state circuitry and its light weight result
in high reliability. Should a failure occur, however, review the following, then if necessary,
replace parts with identical parts. Substitution is not recommended. If you have questions,
please call Cobra Customer Care at 800-543-1608 (hours are listed on the Cobra.com website).
Check Power Source
Check Fuses in DC Power Cord
1. Check connections to the source of power and make sure it
is the 13.8 VDC required to operate your radio.
2. Check the fuses in the DC power cord and in the 12V accessory
power plug.The main power lead (red) has a 2 Amp fuse -
type F2AL 125V - UL rated in its holder. Use only the above
specified type and size fuse for maximum protection.
Failure to do so will void the warranty.
3. Make certain the microphone is properly
plugged in.
4. Make certain the antenna is properly assembled and connected.
If you are unable to correct the problem, please contact Cobra
customer service.
Maintenance/Adjustment
English
Check Microphone Connection
Check Antenna Connection
Notice
y Icons
Caution
Notice
Secondary Icons
Caution
General
Channels CB - 40 CH AM and FM
Frequency Range CB – 26.965 to 27.405 MHZ
Frequency Tolerance 0.005 %
Frequency Control PLL (Phase Lock Loop) Synthesizer
Operating Temperature Range -30° C TO + 65° C
Microphone Plug-in Condenser
Input Voltage 13.8VDC nom. (negative ground)
Current Drain Transmit: AM / FM mod., 1.4A (Maximum)
Receive: Squelched, 0.9 A;
full audio output, 1.2A (nominal)
Size .98"H x 4.37"W x 4.09"D
Weight .66 lbs. (1.37 lbs. in package)
Antenna Connector UHF; SO-239
Fuse DC power cord inline fuse holder contains the
following fuse type: F2AL 125V - UL rated.
12V accessory charging cord contains the following
fuse type: F2AL 125V - UL rated.
Transmitter
Power Output 4 watts
Modulation AM (Amplitude Modulation)
FM (Frequency Modulation)
Frequency Response 300 to 3000 Hz
Output Impedance 50 ohms, unbalanced
Receiver
Sensitivity AM - Less than 1uV for 10dB (S+N)
FM - -120dBm @ 12 dB SINAD)
Selectivity 6 dB @ 7 KHz, 60 dB @ 10KHz
Image Rejection 60 dB, typical
Adjacent-Channel Rejection 50 dB, typical
Automatic Noise Limiter Built-in

Cobra 19 MINI Specifications

General

Output power	4 W
Frequency range	- MHz
Channels quantity	40 channels
Squelch attenuator	Yes
Supported radio bands	AM, FM
Product type	Car CB radio
Product color	Black
Housing material	-
Cables included	Power
Input voltage	12 V
Display type	LCD

Weight and Dimensions

Depth	110.9 mm
Width	103.8 mm
Height	24.8 mm
Package depth	65 mm
Package width	128 mm
Package height	189.9 mm
Package weight	620 g
