Cobra Bridge compact alarm User Manual

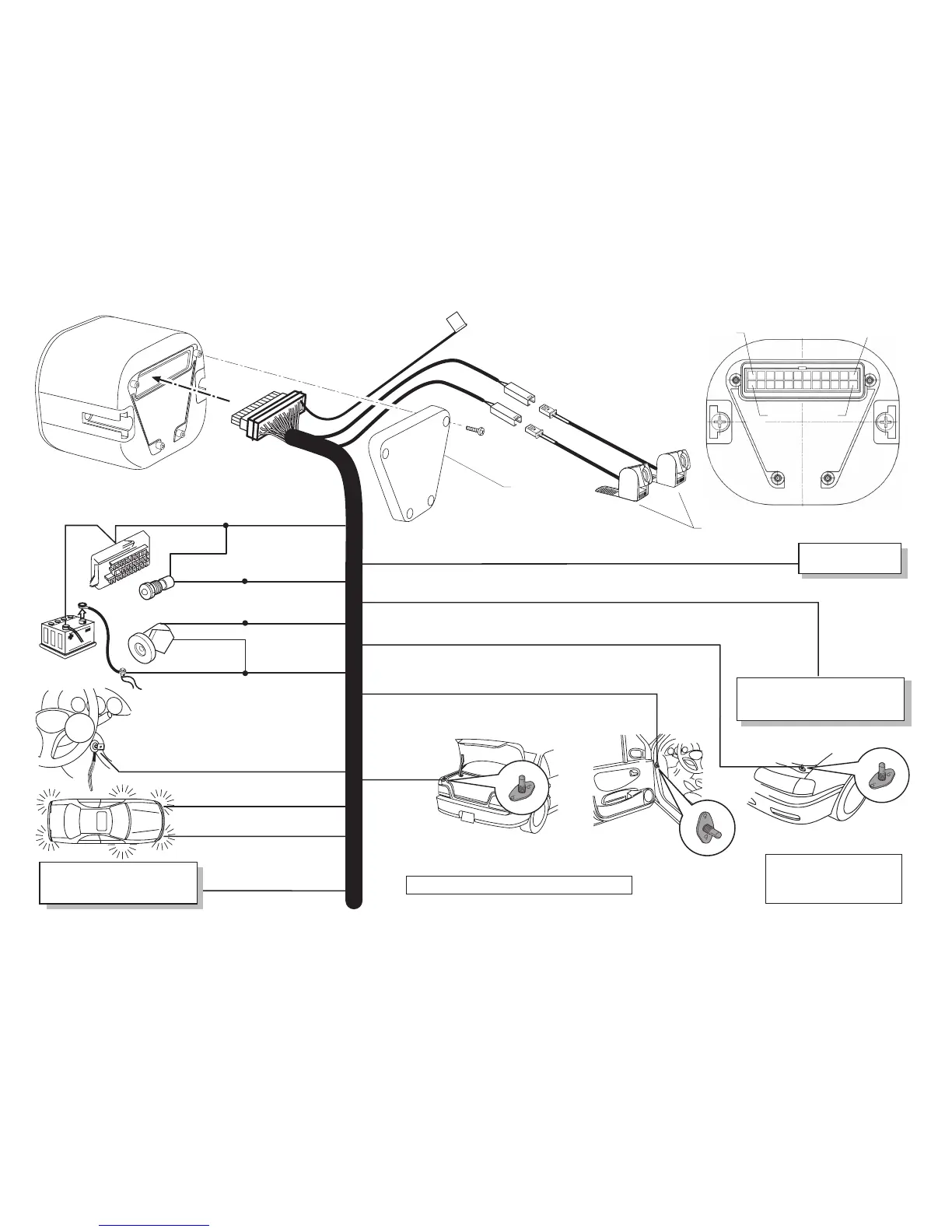

( K 24 ) NERO BLACK
( K12 ) VERDE / ROSSO GREEN / RED
( K5 ) GIALLO YELLOW
( K7 ) GIALLO YELLOW
( K22 ) GRIGIO GREY
( K18 ) GIALLO / BLU YELLOW / BLUE
( K20 ) MARRONE BROWN
( K9 ) BLU / ROSA BLUE / PINK
( K21 ) BLU BLUE
( K13 )
Antenna /
Aerial
Carter / Carter
+ 15
GND
( X 4 )
USCITA NEGATIVA SISTEMA INSERITO
NEGATIVE OUTPUT WHEN SYSTEM
IS ARMED
INGRESSO SENSORE AGGIUNTIVO
ADDITIONAL SENSOR INPUT
Testine ultrasuoni /
Ultrasonic heads
LINEA SERIALE
SERIAL DATA OUTPUT
K 24
K 13= ANTENNA
K 12 K 1
( K6 ) ROSSO RED
BIANCO
WHITE
BIANCO
WHITE
ROSSO
RED
ROSSO
RED
( K21 ) BLU / BLUE
( K8 ) BIANCO / NERO
( K17 ) ROSA PINK
ROSSO RED
WHITE / BLACK
NERO BLACK
NON SONO NECESSARI FUSIBILI - NO NEED OF FUSES
7801 - 7802
7803 - 7804
GIALLO YELLOW
VERDE/ROSSO
GREEN/RED
