Cobra CR6 User Manual

17
Part 6 Gas Conversion
Pilot Burner
1. To remove the oven pilot injector, from inside the
oven, unscrew and remove the thermocouple
from the mounting bracket, for access purposes.
2. Unscrew and remove the Piezo Electrode from
the mounting bracket, for access purposes.
3. Unscrew the hex nut holding the pilot supply
tube to the rear of the pilot assembly.
4. Withdraw the pilot injector from the pilot
assembly.
5. Replace the pilot injector with the correct sized
injector for the gas type being used and
re-connect the pilot supply tube to the pilot
assembly.
6. Refit the and secure the piezo ignitor to the
mounting bracket.
7. Refit the and secure the thermocouple to the
mounting bracket.
8. Refit the flame baffle, oven tray and oven rack
to the inside of the oven.
Low Fire Adjustment
1. To change the thermostat ‘Low Fire’ screw for
the gas type required, remove the gas control
knobs from the control panel. The gas control
knobs are a push fit onto the shaft of the gas
control valves.
2. Unscrew the two screws on the front of the
control panel and lift the panel away from the
oven.
3. Unscrew and remove the old ‘Low Fire’ screw
from the lower left hand front of the valve and
fully screw in the new ‘Low Fire’ screw for the
new gas type. (Refer to the ‘Gas Specifications’
table at the rear of this section for the correct
low fire screw sizes).
4. Refit the control panel and secure with the
securing screws.
5. Refit the gas control knobs to the spindles of the
gas control valves.

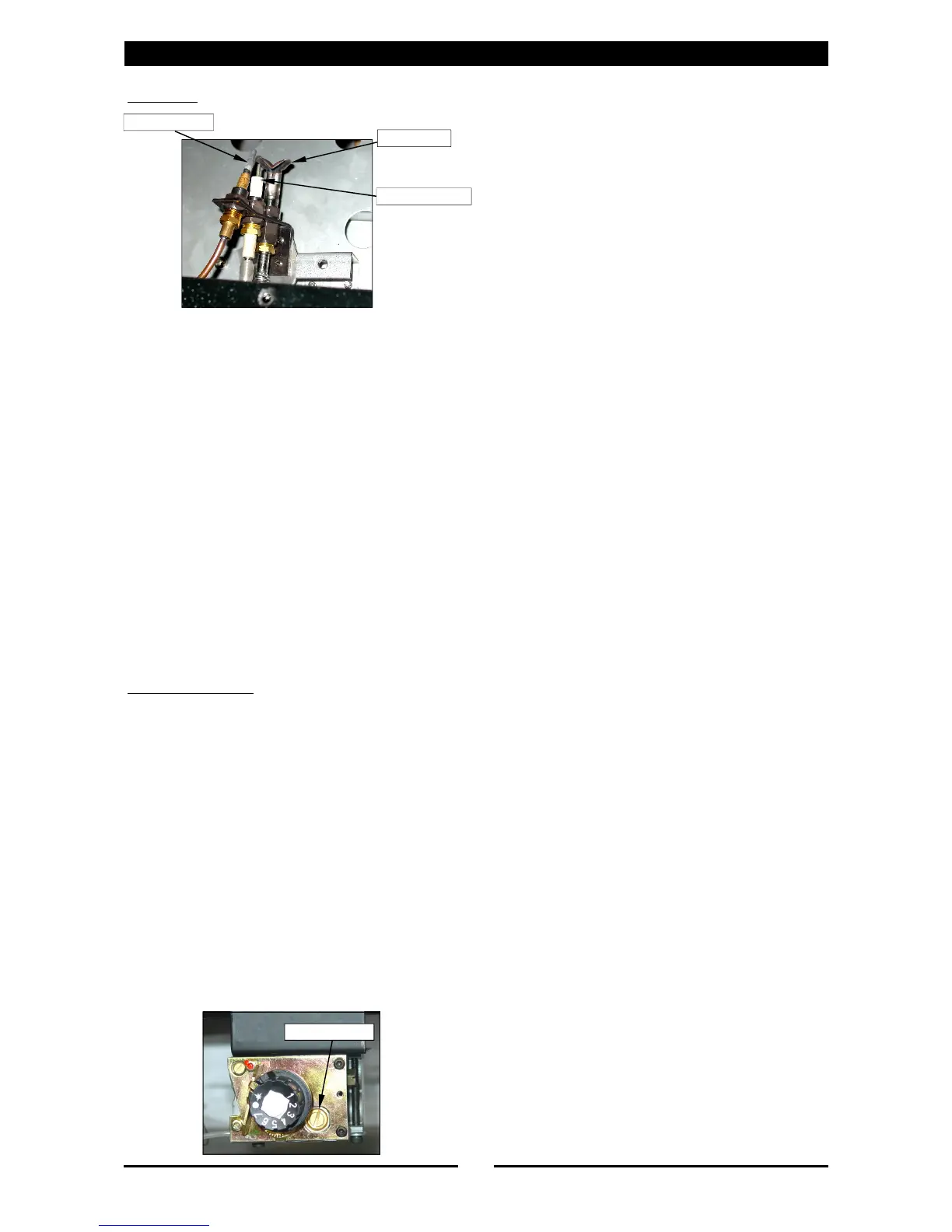

Low Fire Screw
Thermocouple
Pilot Burner
Piezo Electrode
