INTRODUCTION
The anti-intrusion alarm systems GLOBE 4800/4900 CAN are operated by the original high-
security remote control of the vehicle and interfaced with the original vehicle data link trough a
CAN ( Controller Area Network ) serial interface. It gives a higher functional safety and reliability,
reducing also complexity and installation time. The advanced system configuration features
allows a quick system upgrade for any future need.
POSITIONING THE COMPONENTS OF THE SYSTEM
All the parts of the system should be installed in hidden locations which are difficult to access
and away from heat sources.
Alarm unit
Fit in the passenger compartment using the double-side adhesive material provided. The alarm
unit main connector should exit downwards.
Siren with back up
battery
Fit in the engine compartment
taking care of orienting it as
indicated in the drawing.
Siren without back up
battery
Fit in the engine compartment,
using the screws provided, to a
metal surface to facilitate heat
dissipation.

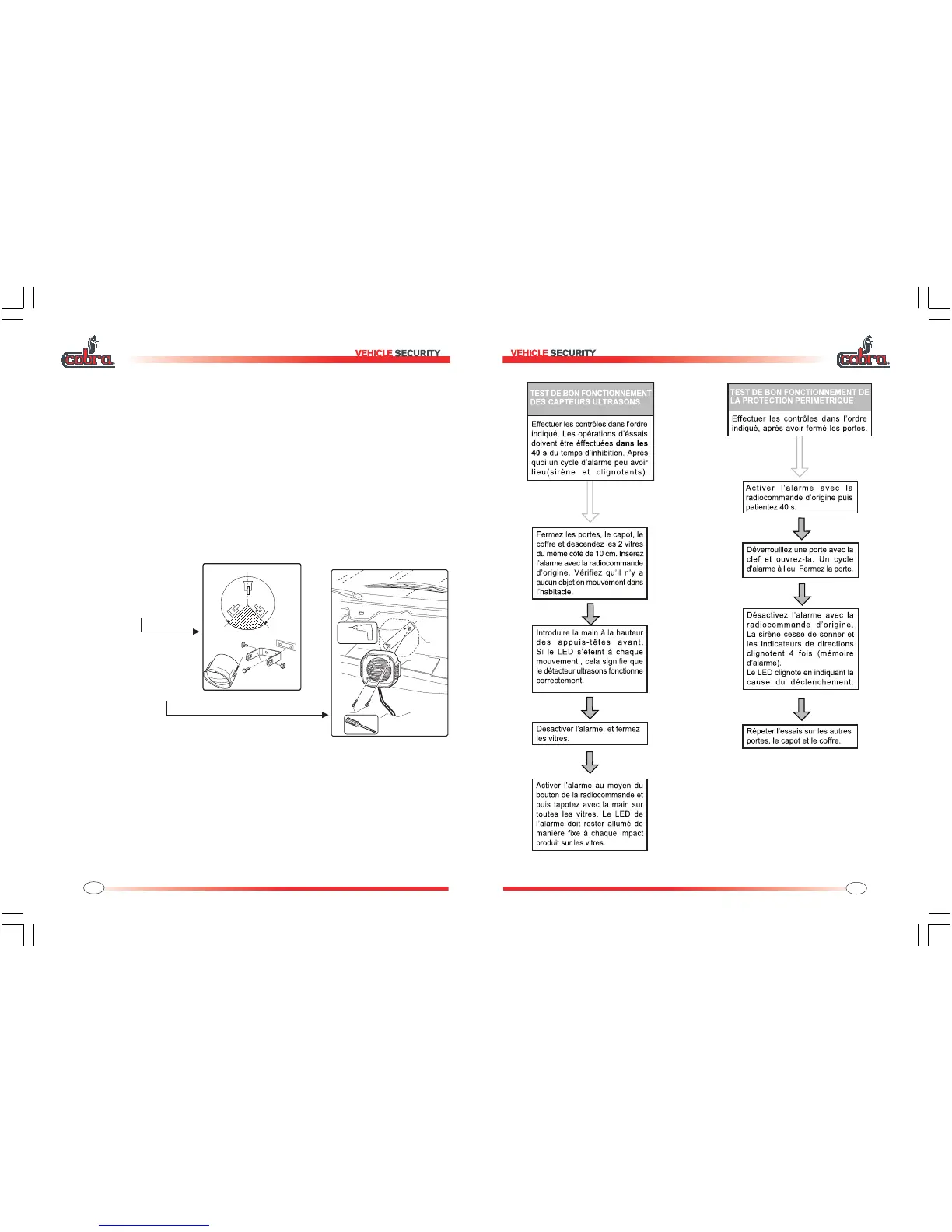

Volumetric ultrasonic sensor
Fit the transducers at the top of the ‘A’ pillars each side of the windscreen, taking care that they
are not covered when the sunvisors are down.
If the car is equipped with sliding sunroof, do not fit the transducers on the dashboard.
Check the right position of the transucers during the functional test of the system.
No adjustment is required for the volumetric ultrasonic sensors. It is suitable for every kind of
vehicle indipendent of the compartment volume.
When transducers are not connected or the originals transducers are present yet, insert the
jumper (code 05FA0230A) into the RX connector.
NO
O.K.
