Glass break sensor (if applicable)
Fit the microphone in a central position in the passenger compartment. Eg. on the dashboard,
pointing towards the rear window. This position achieves uniform sensitivity. The sensor can be
used in conjunction with the ultrasonic volumetric sensor. Drawings in the central part of this manual
shows different connection methods.
Bonnet switch
The bonnet switch must be installed, if not already present or not managed by CAN-BUS, to facilitate
programming of the alarm. Check that the switch is depressed by at least 5 mm when the bonnet is
closed. Ensure that the switch is not acting against sound proofing as these materials could deform
over time.
Control panel
Install on the dashboard in an accessible position. The LED should be visable from outside the
vehicle. In addition to its deterrent function, the panel (LED + push button) is used for programming
and for emergency override.
ELECTRICAL CONNECTIONS
Refer to the enclosed wiring diagrams, and take note of the following:
• route the alarm wires along side the original vehicle harness.
• the system ground must be connected to an original vehicle ground point.
• connect the alarm unit negative and positive feed before reconnecting the car battery.
• the positive supply to the system, must be protected by an adequate fuse located close to the
point of connection (see main diagram).
Blinker
The product disposes of two kind of output, able to generate the necessary commands to activate
the turn indicators, named blinker power and blinker logic.
The two kinds of blinker are in alternative to the other, and it is possible to activate only one of them.
“Power” or “logic” command selection is default according to the vehicle platform type.
For the electrical connections refer to vehicle fitting document.
PROGRAMMING THE SYSTEM
Many functions of this alarm are programmable.
The programmable functions are divided in the following tables: buzzer, basic functions, advanced
functions. Refer to the user manual for their working description.
HOW TO PROGRAM THE SYSTEM
Disarm the system, open a door and the bonnet and turn the ignition key ON. Digit the PIN code
(1111). If all conditions are satisfied, the LED of the control panel will flash and after about 3 s the
system will react with a flashing of the turn indicators to signal that you are into programming-
mode in the buzzer table (buzzer volume control). To reduce the volume of the buzzer, press for a
longer time the button on the control panel. The volume of the buzzer will reduce at each pression.
26

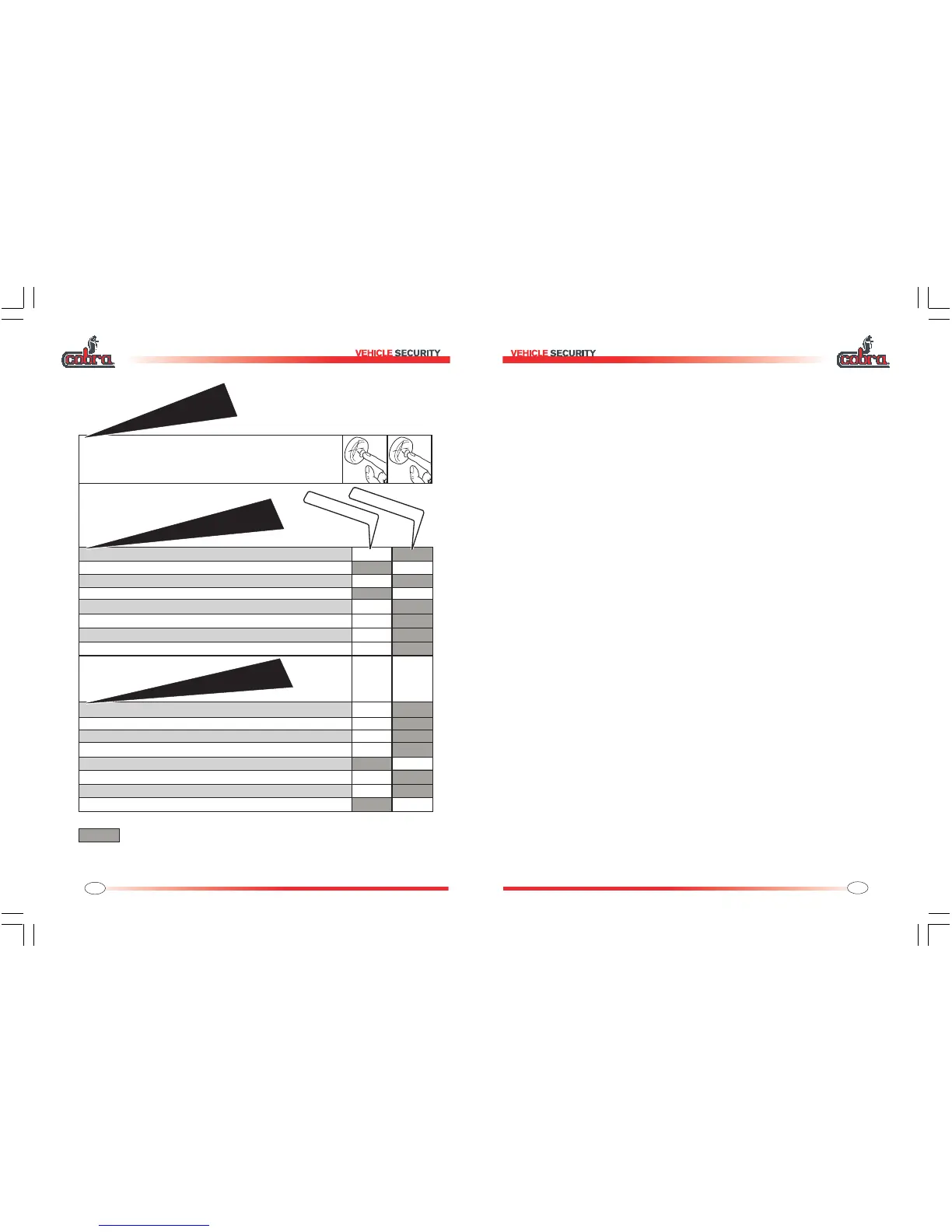

MANUEL D’INSTALLATION GLOBE 4800/4900 CAN
Vol + Vol -
MAX
1 s
MIN
2 s
VOLUME BUZZER
TABLEAU DES FONCTIONS DE BASE
1 SELECTION FREQUENCE U.C. (LOW-LEVEL)
2 NON UTILISEE
3 NON UTILISEE
4 SIGNALISATION DE PORTES / CAPOT / COFFRE OUVERTS
5 CLIGNOTANT DACTIVATION / DESACTIVATION
6 ACTIVATION AUTOMATIQUE DE LALARME
7 ACTIVATION AUTOMATIQUE ANTIDEMARRAGE
8 ALARME ANTIDEMARRAGE
activée
activée
activée
activée
activée
désactivée
désactivée
désactivée
désactivée
désactivée
TABLEAU DES FONCTIONS AVANCEES
1 ANTIDISTRACTION DISPOSITIF DIMMOBILISATION
2 ANTIDISTRACTION ALARME
3 ENTREE PORTES POSITIVE
4 CONNECTION 2110 ACTIVE
5 ACTIVATION PIN CODE 1111
6 SELECTION KLAXON
7 SELECTION HAUT-PARLEUR
8 SELECTION SIRENE
activée désactivée
activée désactivée
activée désactivée
activée
activée
activée désactivée
activée désactivée
PROGRAMMATION DE FABRIQUE
TABLEAU DU BUZZER
Clignotement long
Clignotement court
activée désactivée
activée désactivée
désactivée
06DE2178A SEGN.pmd 17/11/2005, 14.3815
