GETTING STARTED

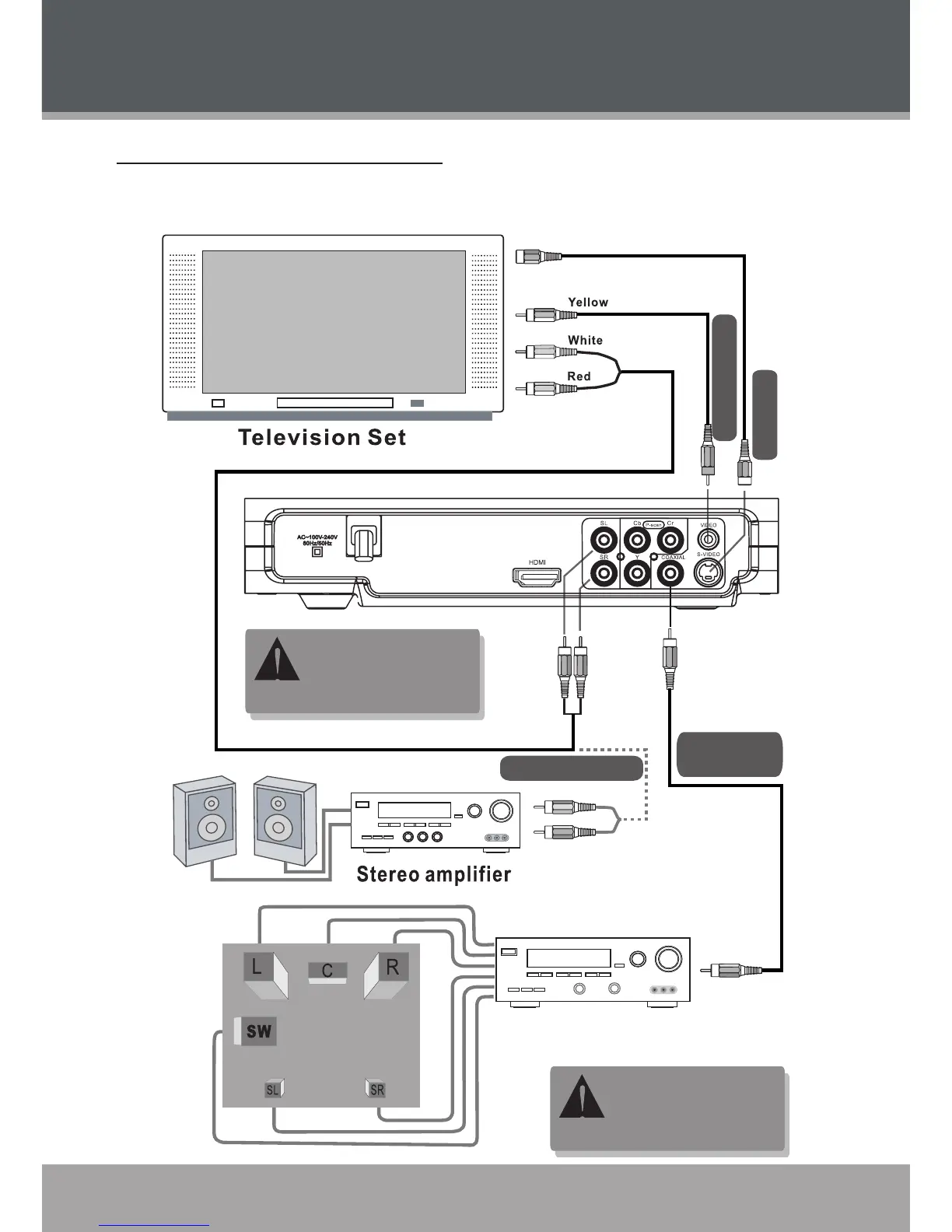

Composite Video or S-Video Connection
The Composite Video and S-Video jacks of the DVD player are capable of outputting video at a
resolution of 480i (480-interlaced).
Amplifier with
Digital Decoding
Connect the AC power
cord to the wall outlet
AFTER all other cables
are connected.
Connect only one type
of audio or video
connection at a time to
minimize interference.
Connect only ONE type of
video connection to your TV
to avoid interference
Center
Front Right
Surround
Left
Surround
Right
Front Left
Subwoofer
2-Channel Audio
Composite Video
S-Video
Coaxial
Digital Audio
