Audio Connections
Use only one of the following connections to avoid signal interference:
2-Channel Stereo Audio Out
Coaxial Digital Audio Out
Coaxial Digital Audio requires an amplier with digital decoding capabilities.

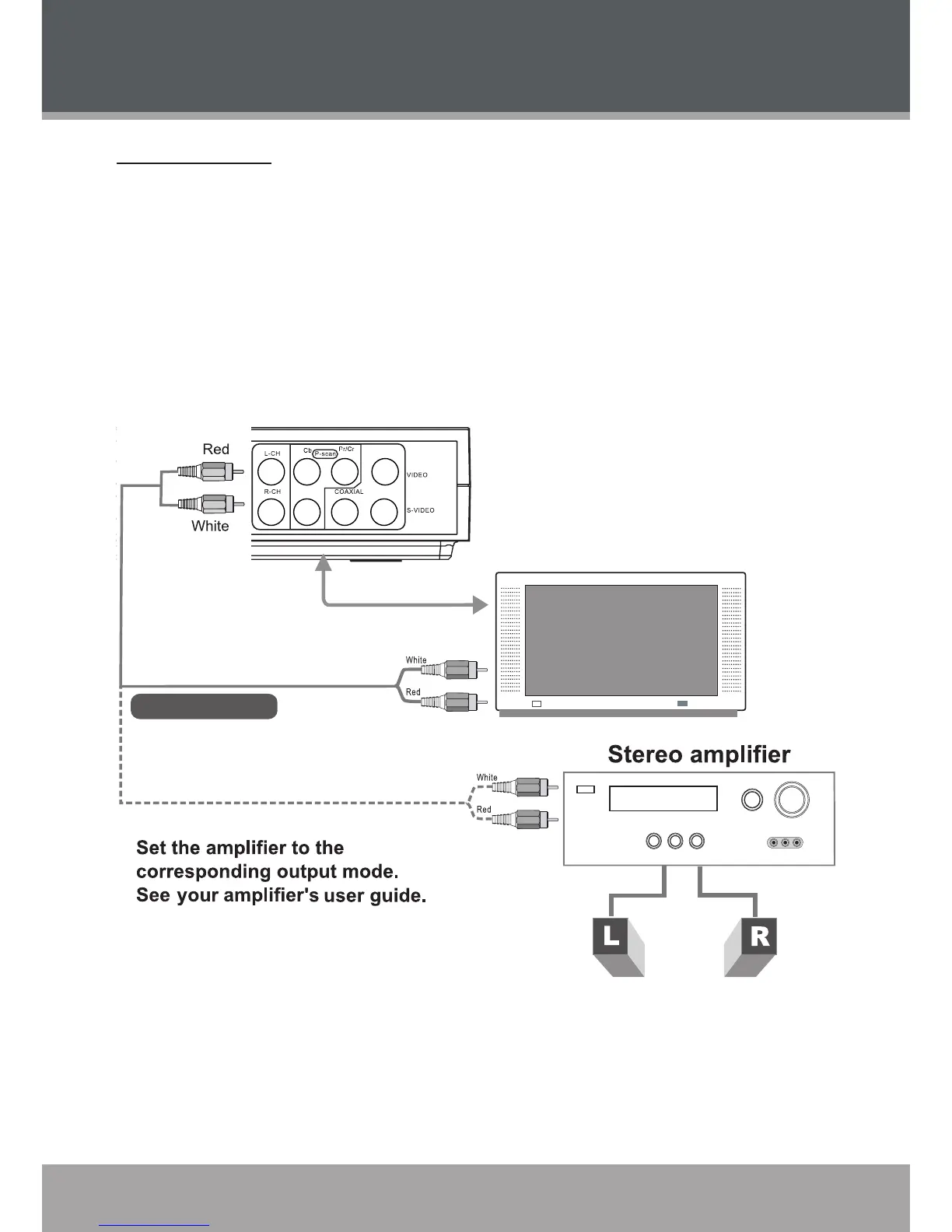

2-Channel Stereo
The DVD player is equipped with 2-channel Stereo (Composite) Audio outputs located on the
rear panel (red/white). Connect the player’s audio outputs to a stereo TV (or optionally, a stereo
amplier).
Component, Composite,
or S-Video Connection
2-Channel Audio
To L/R Audio Input of Stereo TV
To L/R Audio Input of Stereo Amplifier (optional)
1.
2.
GETTING STARTED
