Page 16 Connections At A Glance
English
Audio/Video (AV) Input
This unit can be used as a monitor to display video
and audio from external AV devices equipped with
RCA AV output jacks (e.g., DVD players, VCRs, game
consoles, etc.)

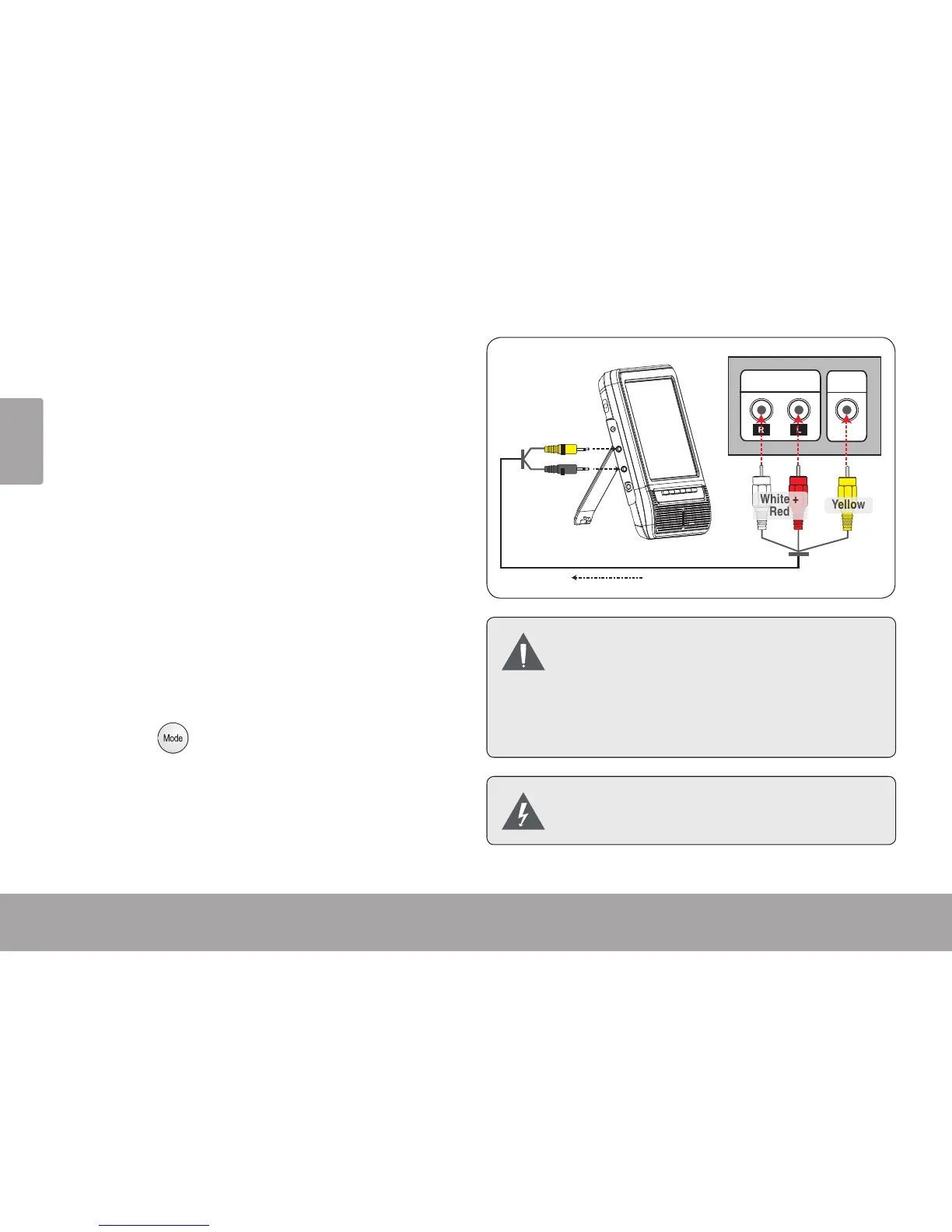

Using an AV patch cable:
Connect the TV’s 3.5mm Video input jack to the 1.
RCA composite Video Out jack (yellow) of your
AV device.
Connect the TV’s 3.5mm Audio input jack to the 2.
RCA Stereo Out jacks (red and white) of your AV
device.
Turn on the TV and the AV device.3.
Set the unit to AV IN mode:4.
Press a.
. The Input Source menu will appear.
Use the navigation keypad to choose “AV IN”.b.
AUDIO
OUT
Signal
Yellow
An AV patch cable (included) is required for
Audio/Video input connections.
Refer to the documentation supplied by
your external AV device manufacturer for
additional help.
Always disconnect the power before con-
necting external AV devices.
