external components
equipmentequipmentequipmentequipment
The cartridge area is accessible
by unlocking the key lock
(pictured in the diagram).
• For several reasons, including food
safety, it’s important to keep this
area locked at all times and the key
kept with a manager or in a secured
location (such as a locked oce).
• Additional keys can be ordered
through the Coca-Cola Small Parts
Program at no-cost.
• Should you misplace your key
or experience trouble with
accessing the cartridge area, call
MyCokeTech® for support at
1-800-241-COKE (2653).

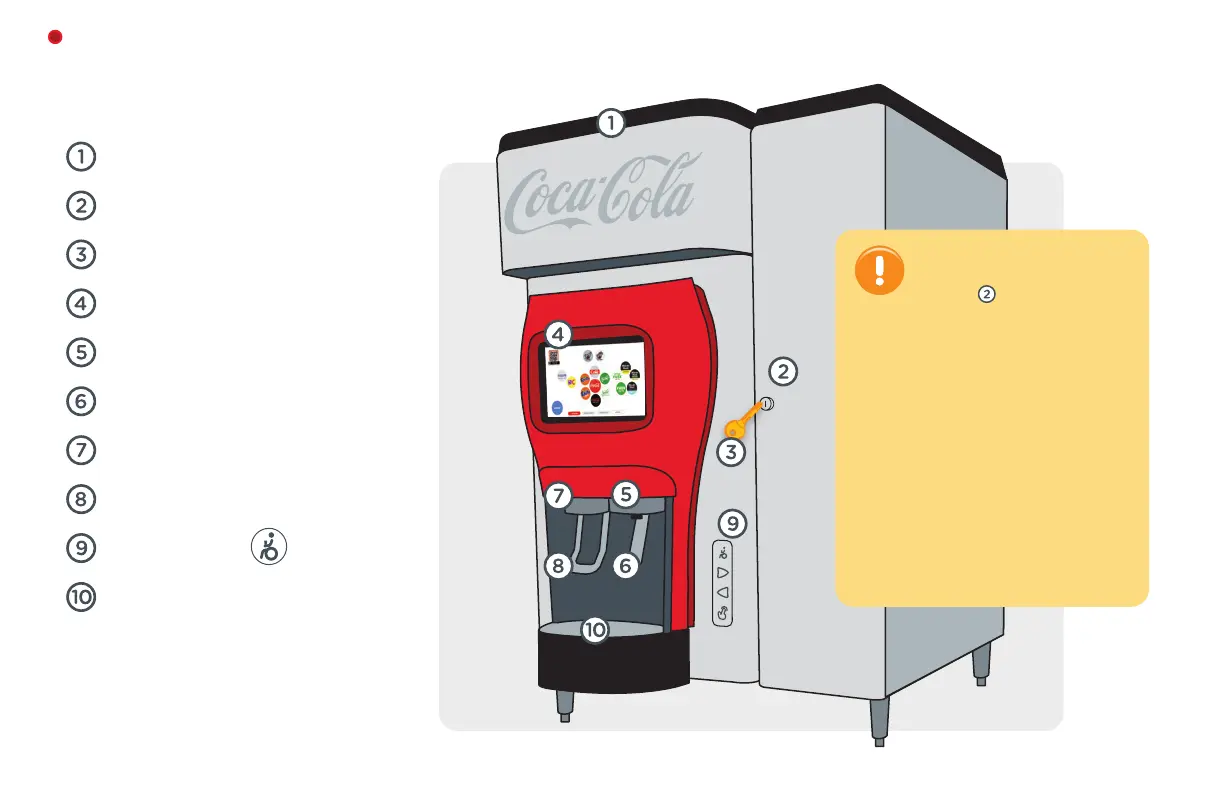

Nozzle and Injector Ring
Ice bin lid*
Cartridge access door
Key
Touch screen
Nozzle and injector ring
Beverage dispense lever
Ice chute
Ice dispense lever
ADA interface
Cup rest and drain pan
* Not applicable with top mounted ice maker.
