14
7. To save the changes that have been made bridge
Contact 1 & 2 with a coin or other conductive
metal object. Once the next programming option
is displayed the changes have been saved.
All programming sequences use the same routine of
using Contacts 1 and 2 to SELECT the next
programming sequence and Contacts 2 and 3 to
INCREMENT the specified value.
PROGRAMMING MODE MENU:
The following table lists the various programming
choices with their display identification and figure
number.
Identification Description Figure Page
CLC
Clock – if enabled 40 12

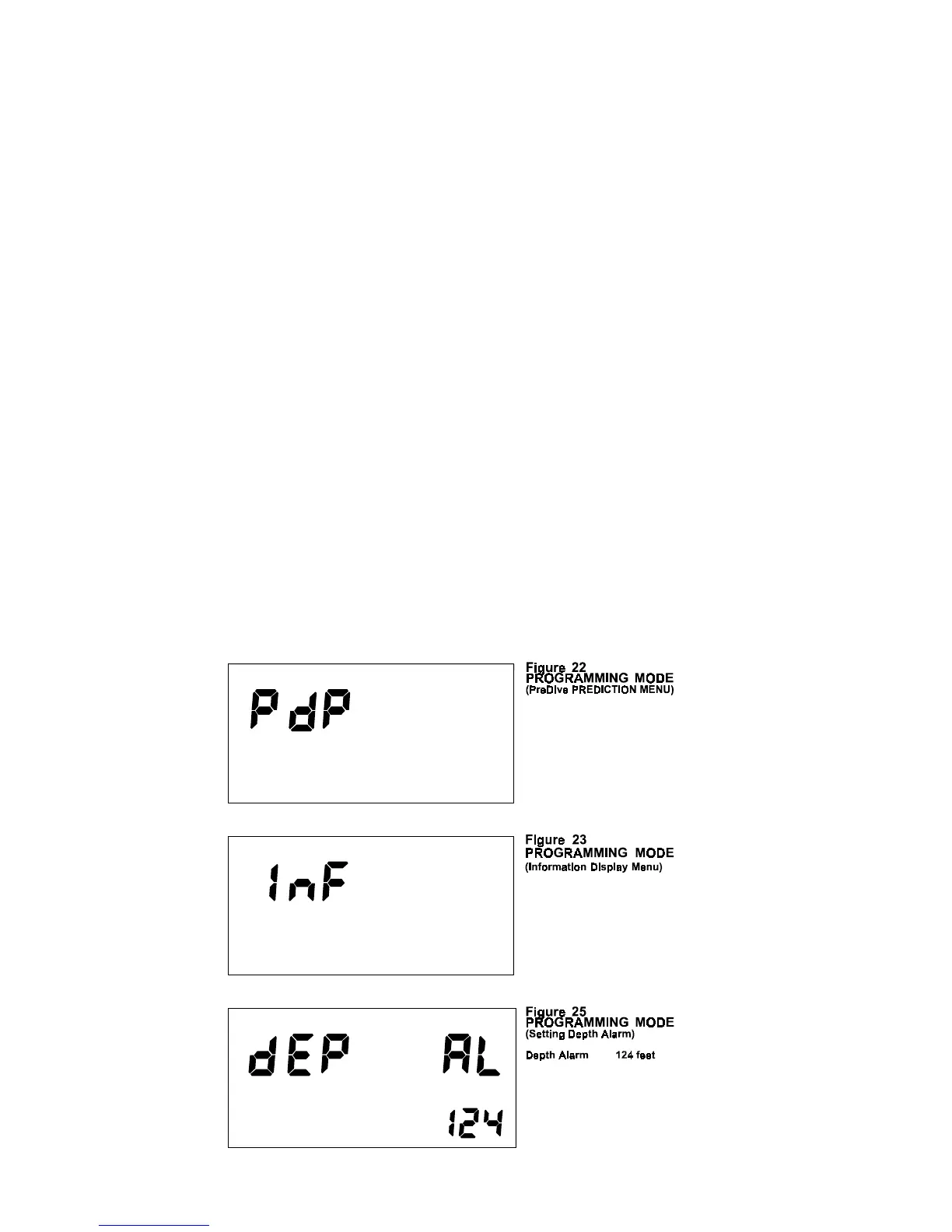

PdP
PreDive Prediction 22 14
InF Misc.
Information 23 14
dEP AL
Depth Alarm, Max value
is 320 feet 25 14
Con
Added Conservatism, Max
value is 50%. 26 15
Tac dL
TACLITE™ On Time. Allowed
value 0 to 99 33 15
LOG
Logbook 34a 15
