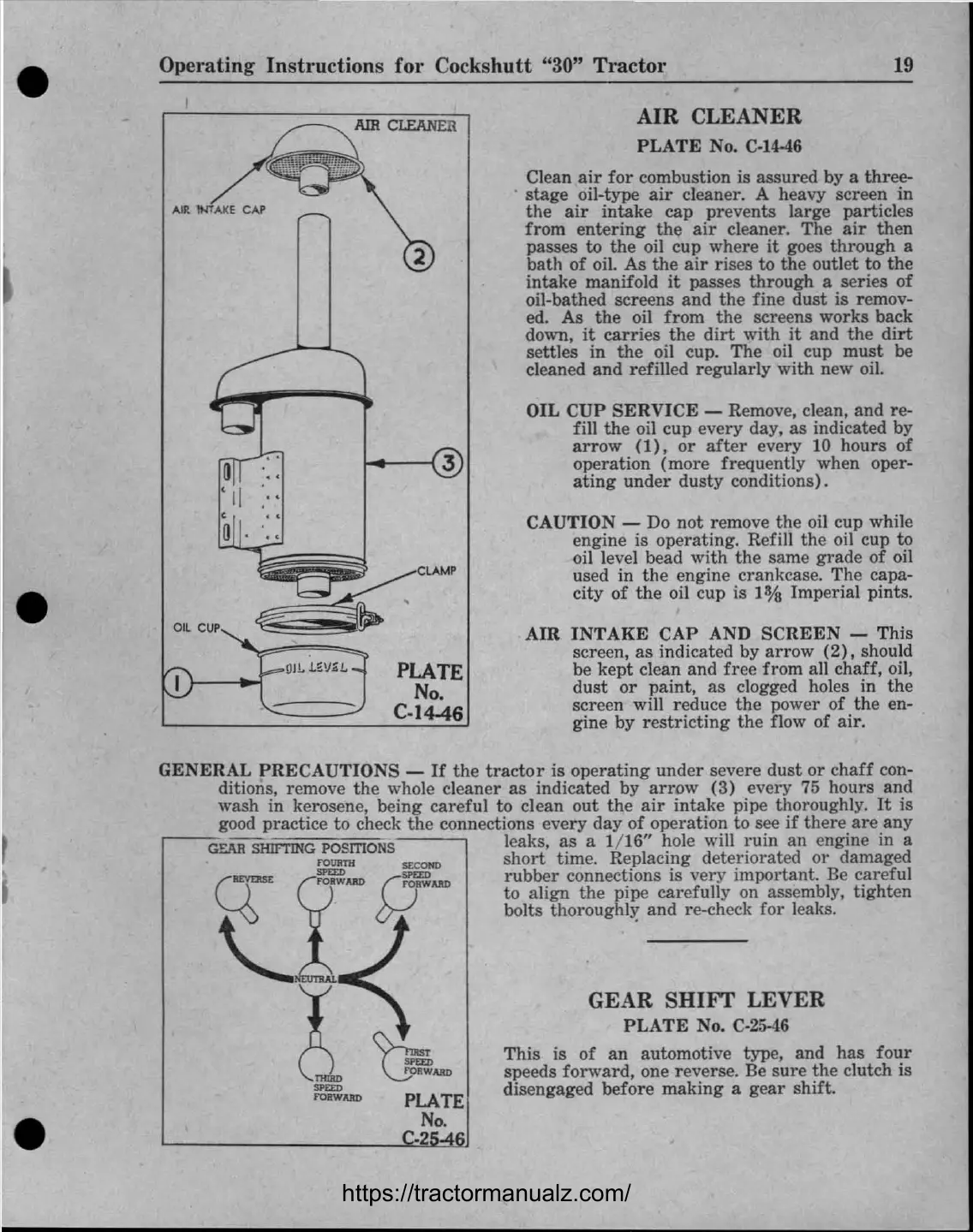

AIR CLEANER
PLATE
No. C·
14-4
6
•
CAUTION - Do
not
remove the oil cup while
engine is operating. Refill the oil cup to
oil level bead with the same grade of oil
used in
the
engine crankcase. The capa-
city of the oil cup is 1
% Imperial pints.
OIL
CUP
SERVICE - Remove, clean, and re-
fill
the
oil cup every day, as indicated by
arrow
(l),
or
after
every 10 hours of
operation (more frequently when oper-
ating
under
dusty conditions).
AIR
INT
AKE
CAP AND SCREEN - This
screen, as indicated by
arrow
(2), should
be kept clean and free from all chaff, oil,
dust
or
paint, as clogged holes in the
screen will reduce
the
power of the en-
gine by
restricting
the
flow of air.
Clean
air
for
combustion is assured by a three-
. stage oil-type
air
cleaner. A heavy screen in
the
air
intake cap prevents large particles
from
entering
the
air
cleaner. The
air
then
passes to
the
oil cup where it goes through a
bath
of oil. As
the
air
rises to the outlet to the
intake manifold it passes through a series of
oil-bathed screens
and
the
fine dust is remov-
ed. As the oil from
the
screens works back
down, it
carries
the
dirt
with it and
the
dirt
settles in
the
oil cup. The oil cup
must
be
cleaned
and
refilled regularly with new oil.
GEAR SHIFT LEVER
PLA
TE
No. C·
25-4
6
This
is of an automotive type, and has four
speeds forward, one reverse. Be sure the clutch is
disengaged before making a
gear
shift
.
2
PLATE
No.
C.I4-46
~-
PLATE
No.
·2
OJL
l.~IJ~L
AIR
WA
KE
CAP
Op
erating
In
stru
ctions
for
Cocksh
utt
"30"
Tractor
G
ENE
RAL r RECAUTIONS -
If
the
tractor
is
operating
under
sev
ere
dust
or
chaff
con-
ditions, remove the whole clean
er
as indicated by
arrow
(3) ev
ery
75 hours
and
wash in kerosene, being careful to clean
out
the
air
intake pipe thoroughly.
It
is
good practice to check
the
connections every
day
of operation to see if there
are
any
.---
-G~
SHIFTING POsmONS leaks,
~s
a 1
/16"
~ole
will ruin an engine in a
F01JIltH
=O
ND
short
time. Replacmg det
eriorat
ed or damaged
g:
E
=AJU>
Q=MD
rubb
er
connections is v
ery
important. Be careful
to align the pipe
car
efully on assembly, tighten
bolts thoroughly
and
re-check for leaks.
'-.
~1IIIIIi;,.
!
SPD:D
FORWARD
•
•
•
