LINUS12C 2. THE AMPLIFIER

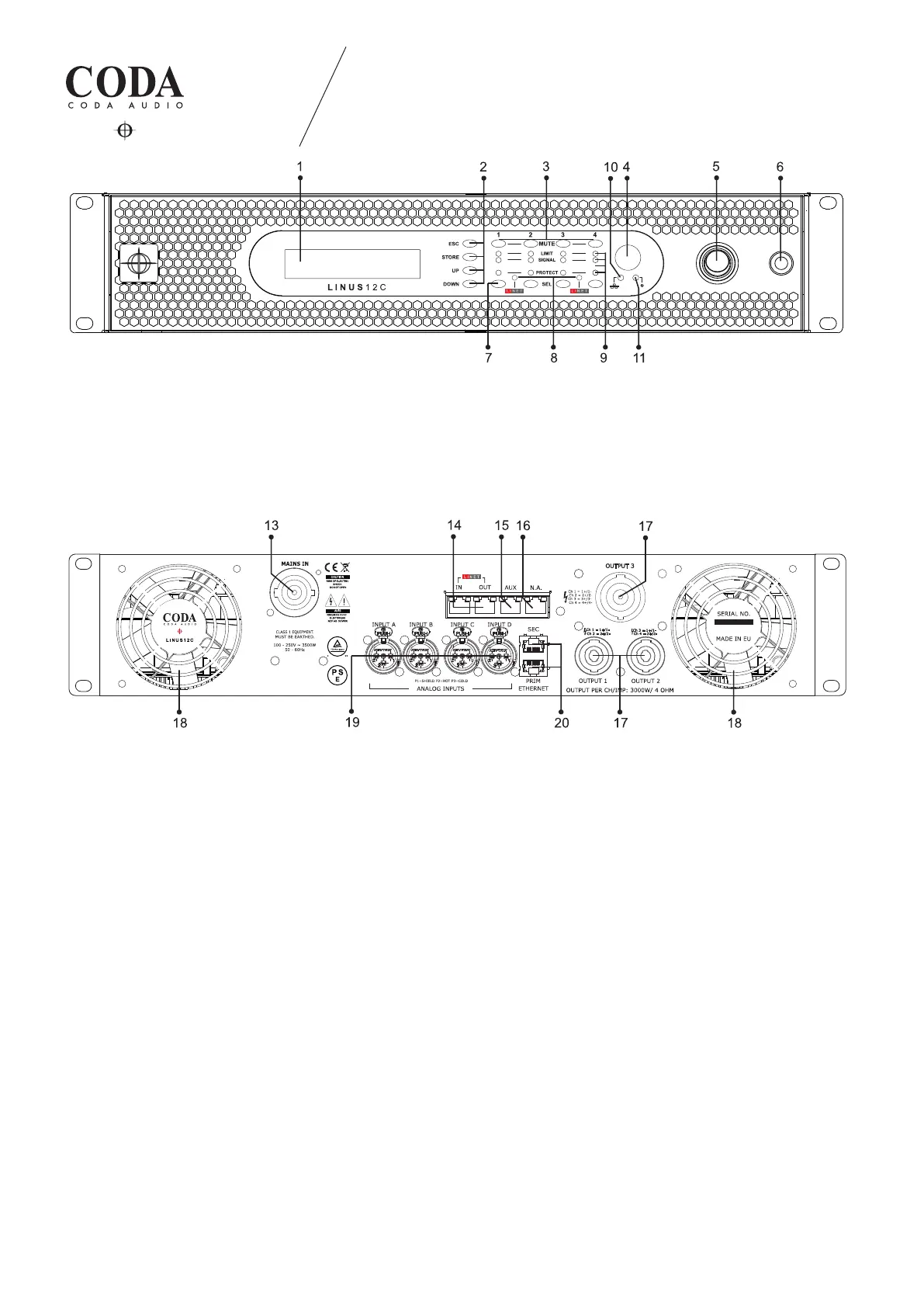

The front
1 Display 7 Channel selection buttons
2 Navigation buttons 8 LiNET LEDs
3 Channel mute buttons 9 State LEDs
4 Rotary encoder knob 10 Ethernet connection LED
5 1/0 Standby power switch 11 Mains connection LED
6 Grill screw 12 LINUS12C
The rear
13 AC power connector (powerCON® 32 A) 17 SPEAKON® amplier output connectors:
14 LiNET network connections 17A NL8MP (4 channels)
1 IN/1 OUT (8 channels AES/EBU) 17B NL4MP (2 channels each)
15 AUX connection (alarm override) 18 Cooling air outlet vents
16 Connection not available 19 XLR analog signal inputs
20 Ethernet connector for remote access
