4

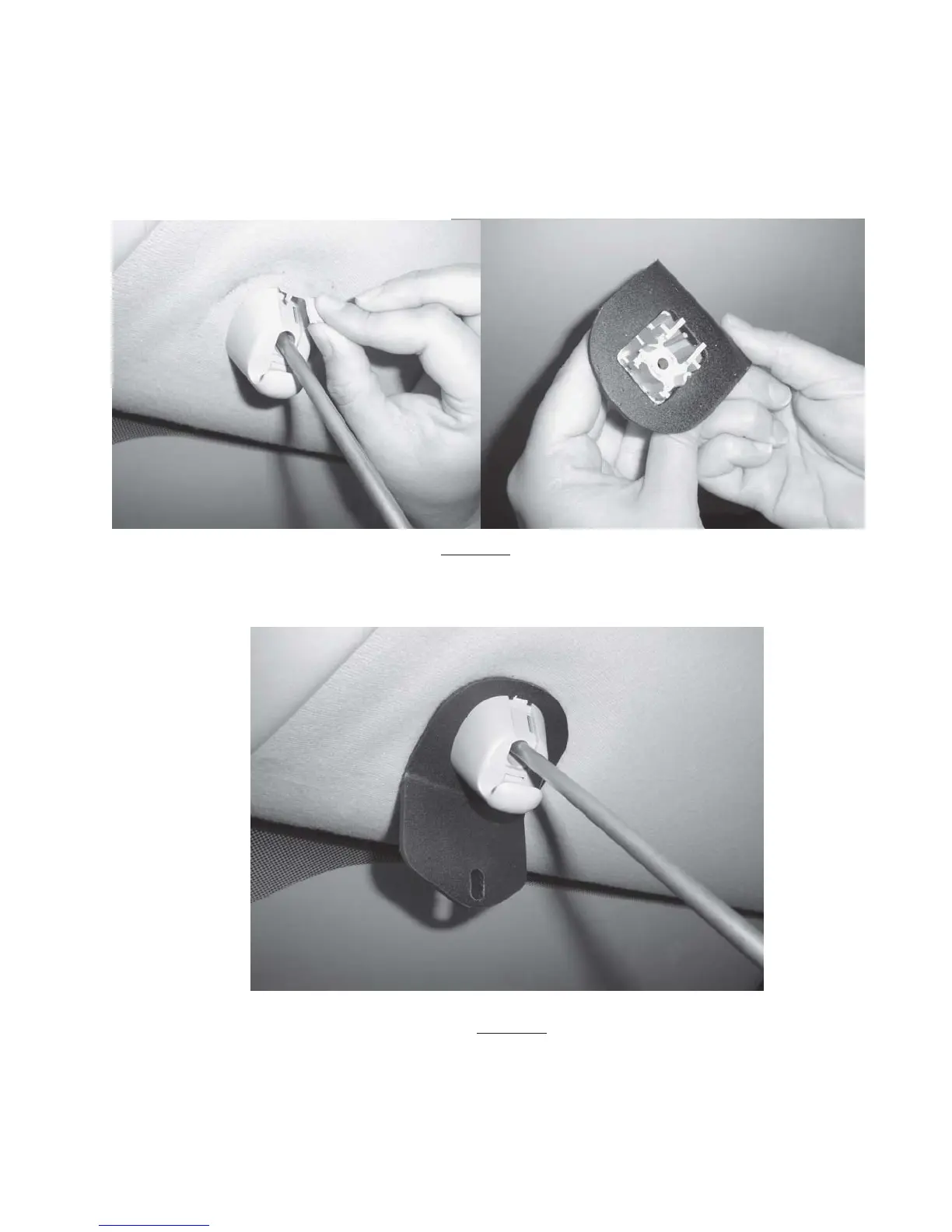

FIGURE 3
FIGURE 2
Attach brackets to sun visor retaining clips
In order to remove the sun visor retaining clip, unscrew the phillips screw holding it in place. Place the
passenger side inner bracket on the passenger side retaining clip as shown in Figure 2, noting the
difference between passenger and driver side brackets. Attach the inner bracket and retaining clip to the
headliner as illustrated in Figure 3. Do not tighten these screws at this time.
