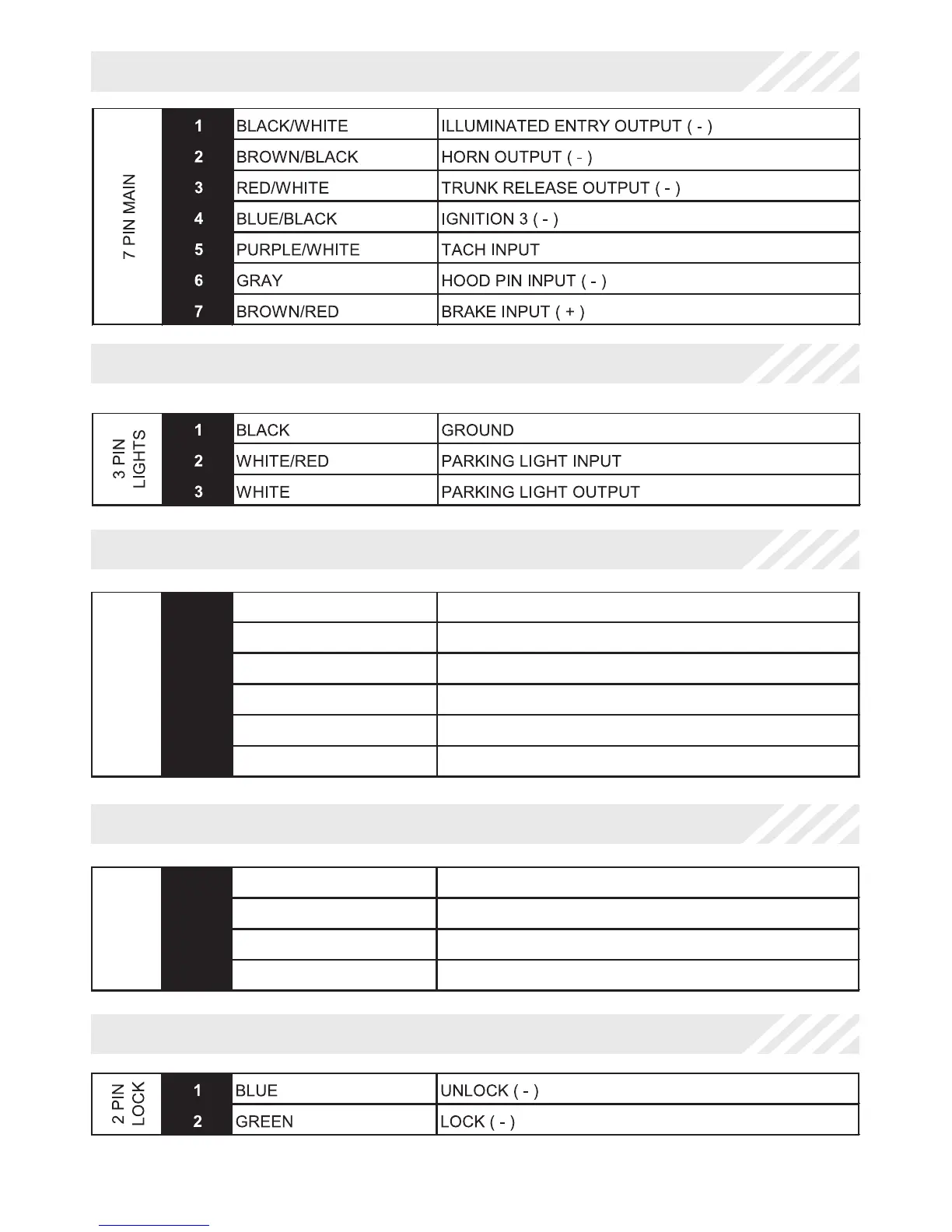

6 Pin Start Harness
4 Pin Alternate Harness
2 Pin Lock Harness
7 Pin Main Harness
3 Pin Parking Light Harness
1
PURPLE STARTER OUTPUT - MOTOR SIDE
2
RED BATTERY 12V ( + )
3
ORANGE ACCESSORY 1 ( + )
4
PINK/WHITE IGNITION 2 ( + )
5
RED/WHITE BATTERY 12V ( + )
6
PINK IGNITION 1 ( + )
6 PIN START
1
LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )
2
LT BLUE FACTORY ARM / PULSE AFTER START ( - )
3
GREEN/WHITE PULSE AFTER SHUTDOWN ( - )
4
BLACK/YELLOW PULSE DURING CRANK ( - )
4 PIN
ALTERNATE
OUTPUT
